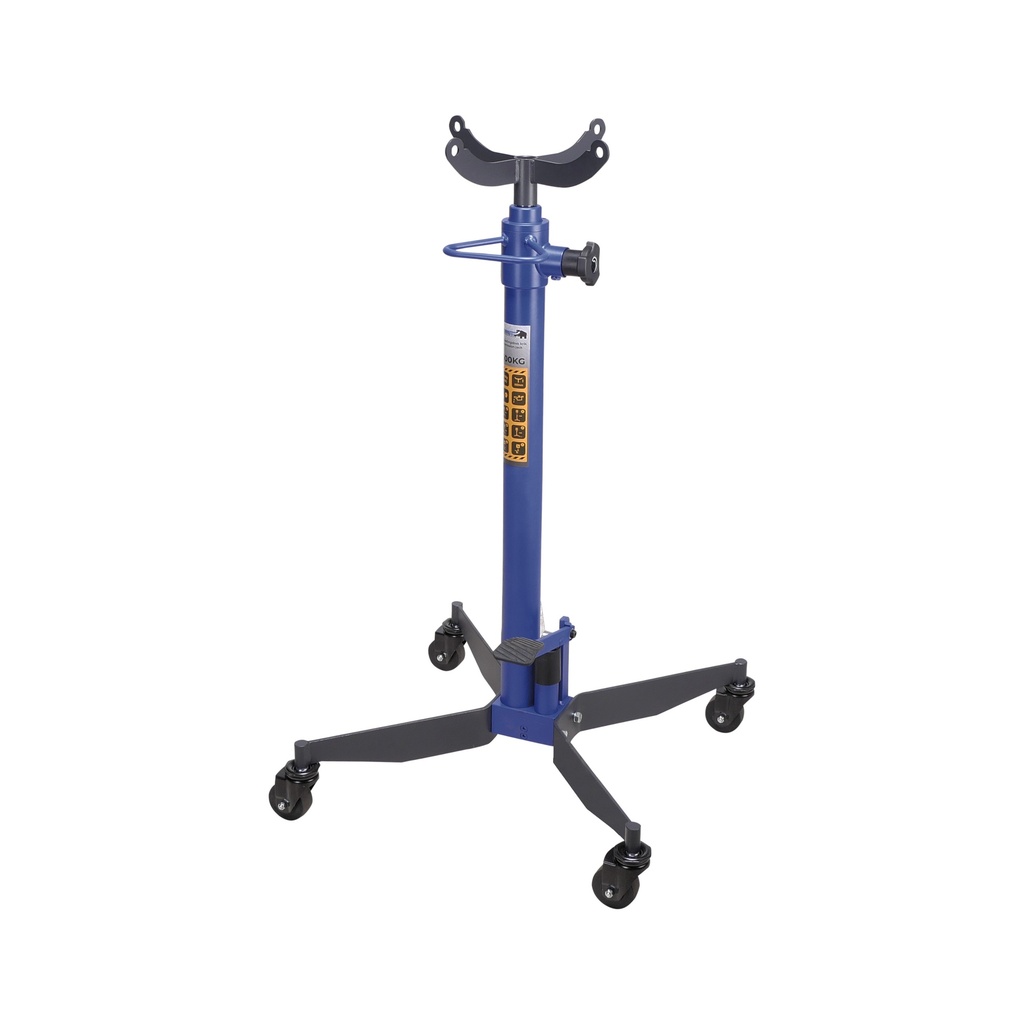

This Mammuth transmission jack is designed for the fast and safe installation and removal of gearboxes.
-
Two-stage pump: Fast lifting without load, controlled under load.
-
Controlled lowering speed: Ensures a safe and steady descent.
- Foot pedal: Keeps both hands free while lifting.
-
Fiberglass-reinforced nylon wheels: Wear-resistant, high load capacity, and resistant to oil, grease, acids, and other chemicals.
Specifications
| Material | Steel |
| Lifting capacity | 600 kg |
| Min. height | 1146 mm |
| Max. height | 1980 mm |
| Hook spacing | 300 mm |
| Hook height | 50 mm |
| Wheel material | Fibreglass-reinforced nylon |
| Wheel diameter | ø75 |
| Oil capacity | 1 L |
| Oil type | OKCH68 |
Product Dimensions
| Length | 660 mm |
|---|---|
| Width | 680 mm |
| Height | 1,155 mm |
| Weight | 34.0 kg |
Package Dimensions
| Length | 1,070 mm |
|---|---|
| Width | 235 mm |
| Height | 285 mm |
| Weight | 36.00 kg |
