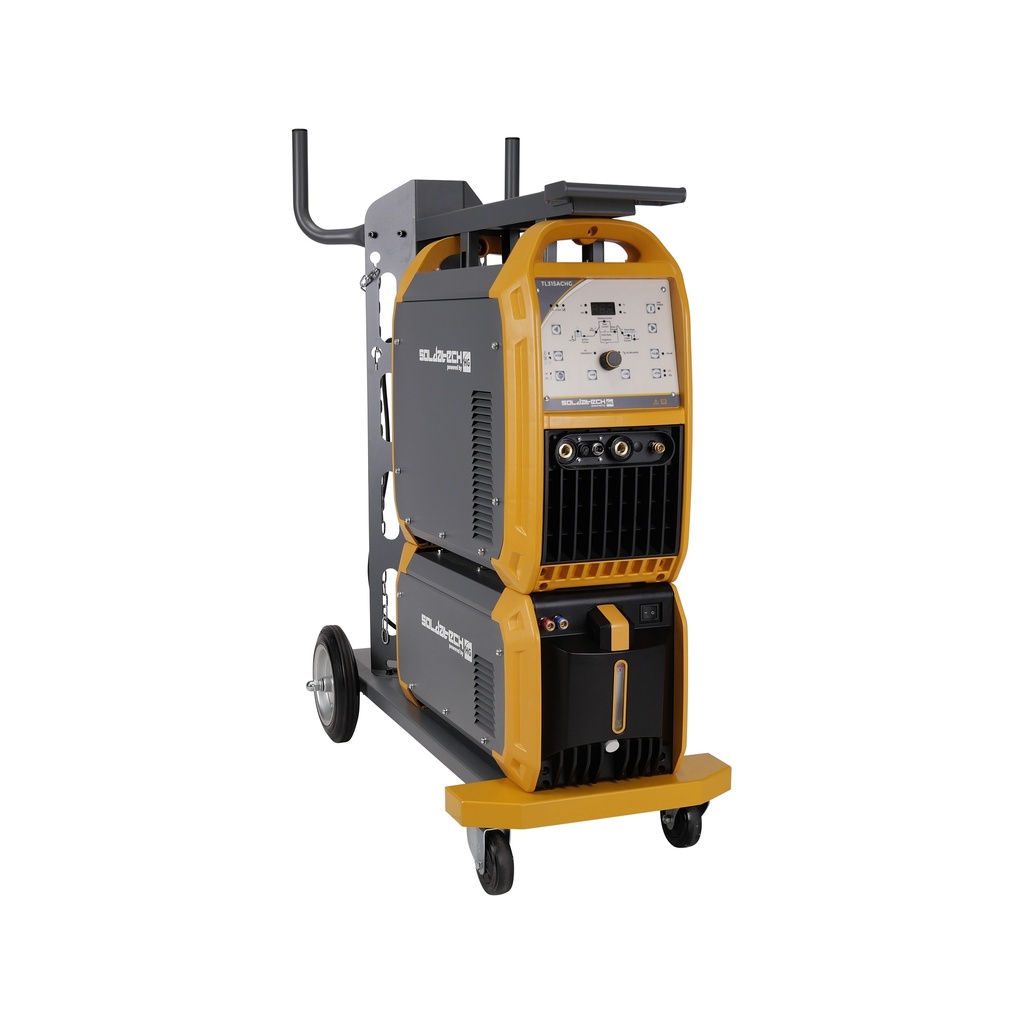

TIG welding machine AC DC 315A with water cooling

[TL315ACHG] TIG welding machine AC DC 315A with water cooling

Welding and cutting equipment / TIG welding machines Brand: Soldatech Soldatech

Product Code: TL315ACHG

EAN: 8720028097371

Availability: Available

https://www.valkenpower.com/web/image/product.template/61246/image_1920?unique=aa58082

€ 2,250.00 2250.0 EUR € 2,250.00

€ 2,250.00

Not Available For Sale

  • Frequency
  • Voltage
  • No load Voltage
  • Input power
  • Circuit breaker
  • Cooling unit content
  • Duty cycle @20C
  • Welding current range
  • Duty cycle @40C
  • Protection class

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

TIG AC/DC welding inverter 315A / IGBT TIG AC/DC inverter / welding machine

This Soldatech powered by HG TIG welding machine is standard equipped with a solid trolley that easily carries a 50L gas bottle and processes a huge range of materials with different welding processes including AC/DC Pulse, TIG and MMA welding. With the setting and selection buttons, all parameters of the TL315ACHG can easily be set in the correct way, so that every welding job is completed with high quality results.

The modern IGBT inverter technology ensures that the TL315ACHG delivers sustainable performance with more power and a high duty cycle. In addition, the TL315ACHG is equipped as standard with a powerful water cooler which prevents overheating in combination with a built-in fan and ensures that high-quality welding performance is guaranteed over a long period of time.

The digital continuously adjustable display shows very clearly the welding processes and possibilities. Thanks to the HF ignition, the device starts up smoothly at all times.

The supplied TLT18M4 torch is equipped with water cooling for a long service life when welding with high amperage.

Due to the hot-start / anti-stick function, the welding current is quickly increased, so that the electrode does not stick to the workpiece during ARC welding.

Ideal for welding aluminum, stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.

Every TL315ACHG comes standard including:

  • Water-cooled Soldatech TLT18M4 TIG torch with 4m cable

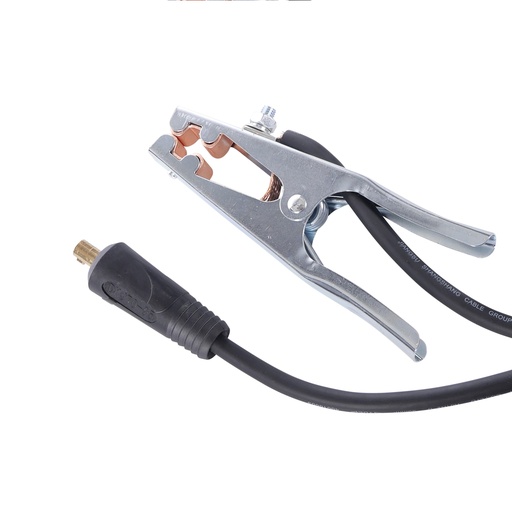

  • Welding ground clamp with 3m 25mm² cable

  • European dinse couplers 13mm

  • Gas line including quick coupling of 4m (8mm inner diameter)

  • 5-pin 32A plug with 2m 4x2.5mm² cable

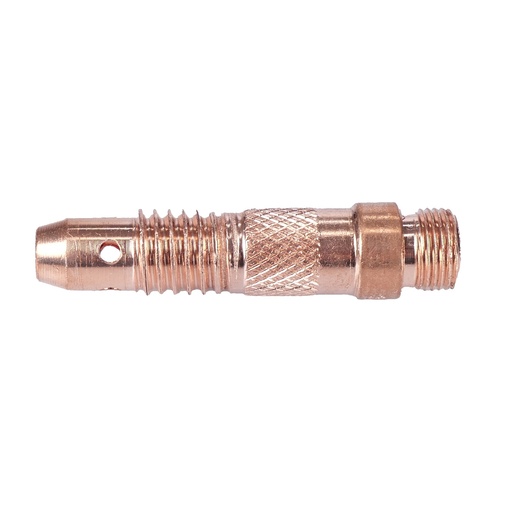

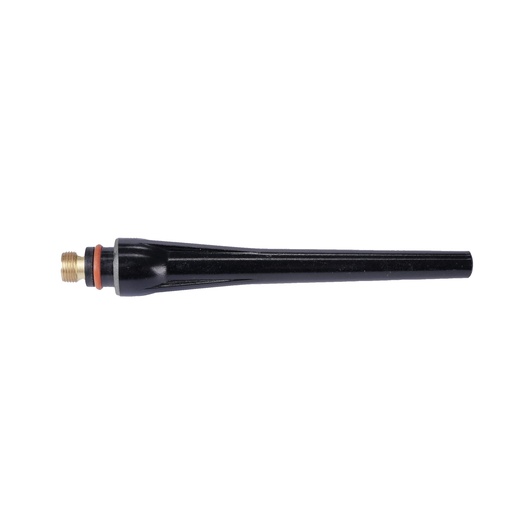

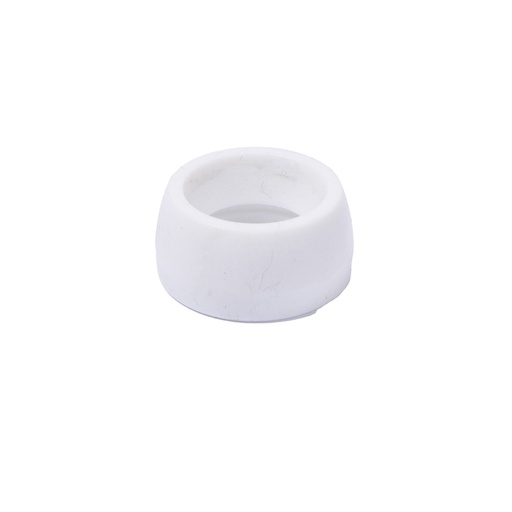

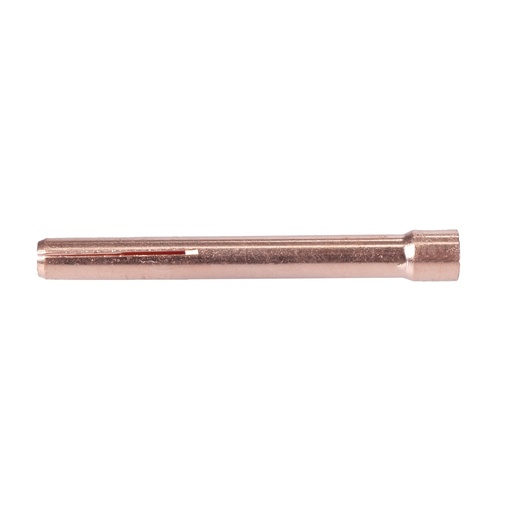

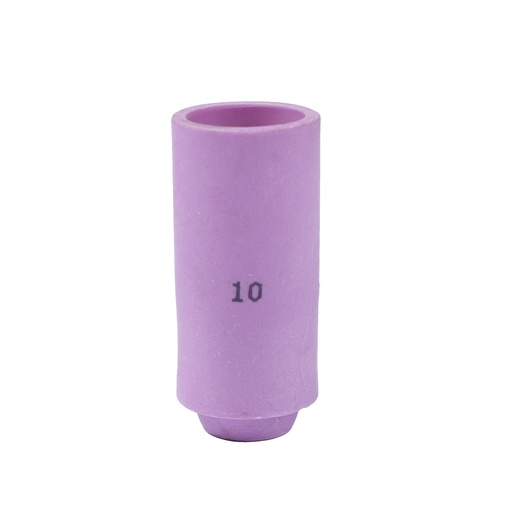

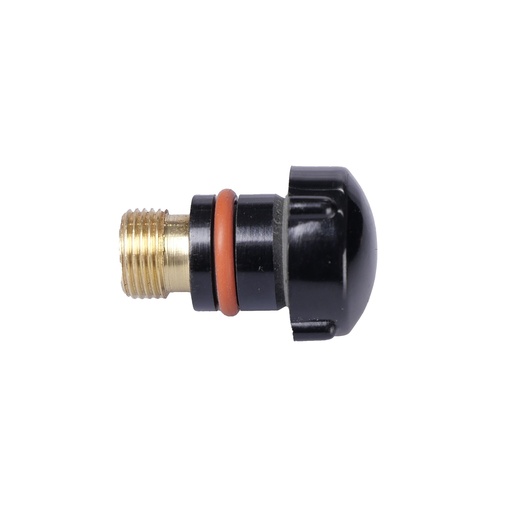

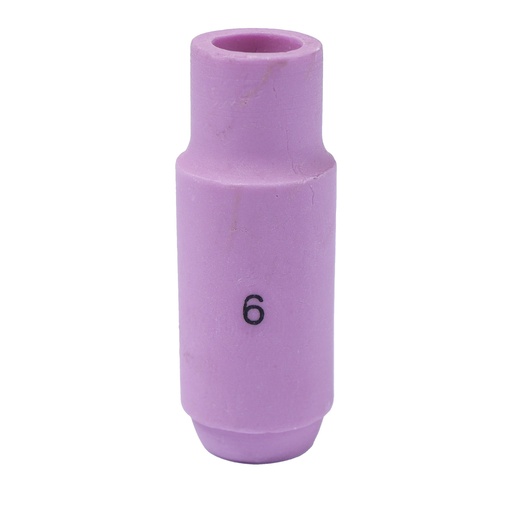

  • Wear parts = 3x collet (1.6 / 2.0 / 2.4mm), 1x collet chuck 3.2mm, 3x gas nozzle (6, 7, 8mm), 1x insulation ring, 1x sealing cap short and 1 sealing cap long

Technical specifications:

  • voltage = 400V - 3 pfase

  • frequency = 50 / 60Hz

  • circuit breaker = 25A B-char

  • input power = 13.8kVA

  • no load voltage = 70V

  • duty cycle (at 20°C ambient temperature) = 60% - 315A

  • duty cycle (at 40°C ambient temperature) = 35% - 315A

  • welding current range DC TIG = 10A - 315A

  • welding current range AC TIG = 20A - 315A

  • welding current range MMA = 20A - 250A

  • cooling unit content = 6L

  • protection class = IP21S

  • dimensions = 1110mm x 520mm x 1265mm

  • weight = 94kg

Product Dimensions:
Product Length 1,110 mm
Product Width 520 mm
Product Height 1,265 mm
Product Weight 94.0 Kg
Package Dimensions:
Package Length 1,190 mm
Package Width 520 mm
Package Height 1,445 mm
Package Weight 123.00 Kg

  • AC / DC

  • Pulse function

  • Including water cooling

  • Equipped with database

  • 5 years warranty

Specifications

Frequency 50/60 Hz
Voltage 400V - 3 Phase
No load Voltage 70V
Input power 13.8kVA
Circuit breaker 25A B-char
Cooling unit content 6L
Duty cycle @20C 60% - 315A
Welding current range DC TIG 10A - 315A / AC TIG 20A - 315A / MMA 20A - 250A
Duty cycle @40C 35% - 315A
Protection class IP21S
