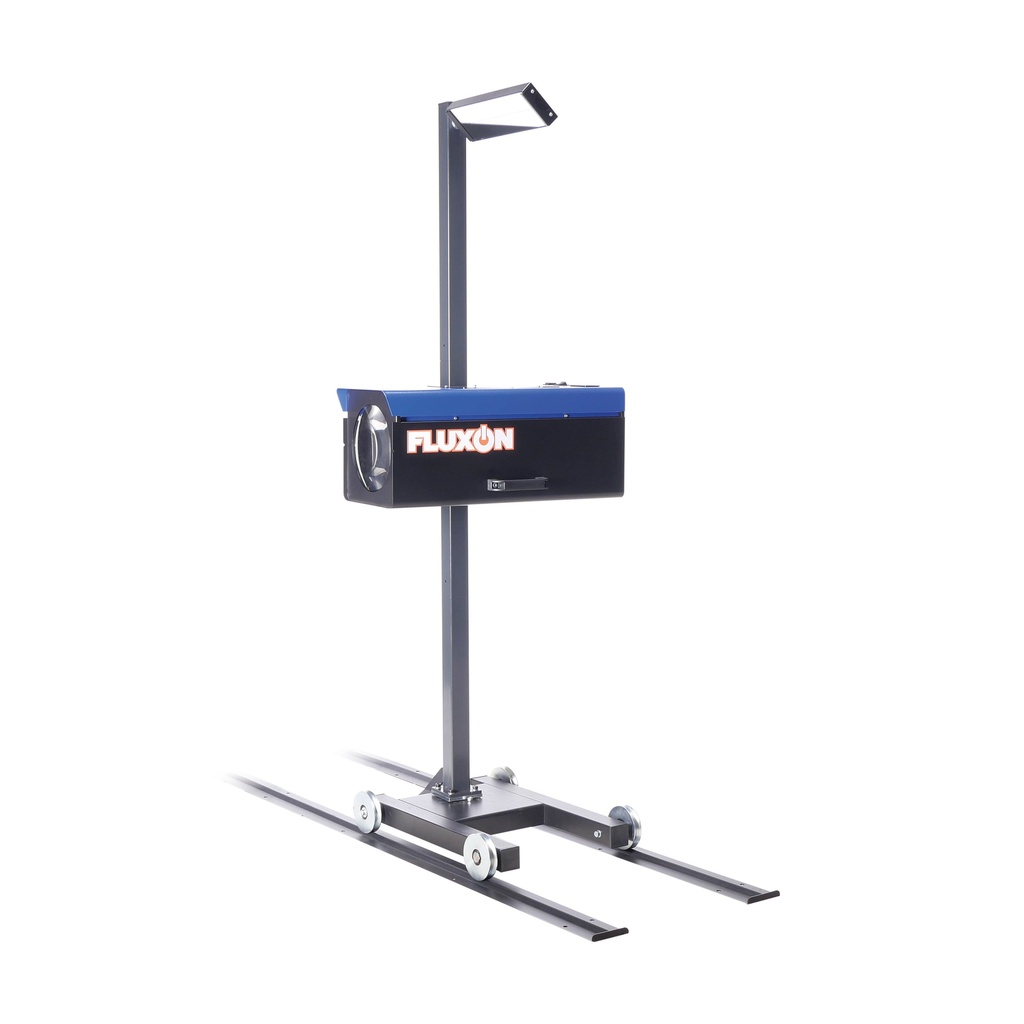

Headlight tester set / headlight adjustment set
This headlight tester set includes rails, H-base and headlight tester. The headlight tester set is suitable for testing the headlights of cars, motorcycles and heavier vehicles. This is for the purpose of inspection and correct adjustment of the headlights. The professional headlight adjustment device has a built-in laser and a digital lux meter. The height is easy to adjust and the device has a rotating mirror. The dip in the dim/fog light can be read with an accuracy of 0,1%, the total adjustment range is -0,2 / +8%. Also comes with a mobile undercarriage and can be used on rails and mobile.
min. working height = 200mm
max. working height = 1500mm
Features:
glass lens
built-in laser
mirror visor
digital lux meter
level
8% infinitely adjustable inclination angle
sliding mechanism to adjust the height
suitable for APK
Product Dimensions
| Length | 3,500 mm |
|---|---|
| Width | 600 mm |
| Height | 1,740 mm |
| Weight | 51.9 kg |
Package Dimensions
| Length | 1,200 mm |
|---|---|
| Width | 800 mm |
| Height | 600 mm |
| Weight | 55.00 kg |
