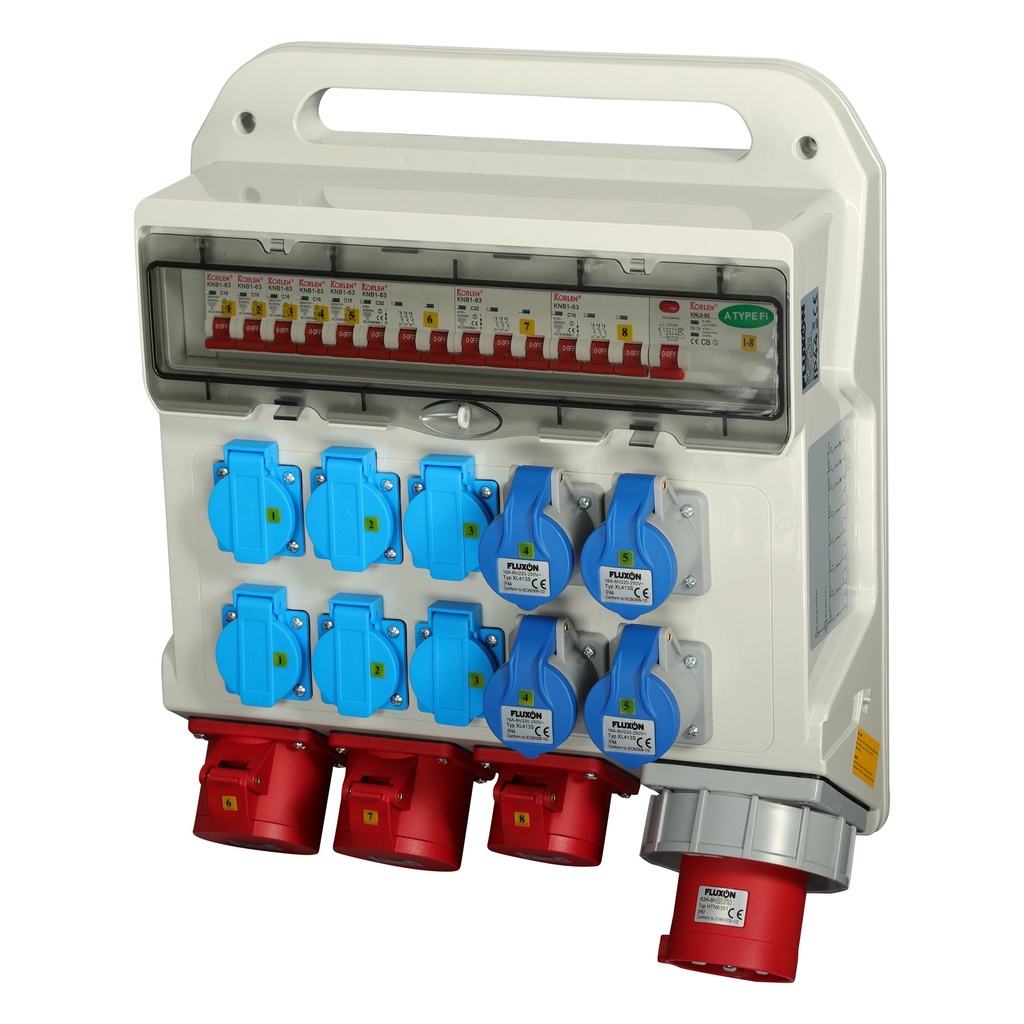

The Fluxon distribution box is designed for the safe distribution of high power on construction sites, in workshops and in temporary installations. The box has a 63 A 5-pin input and distributes this to 10× 230 V outputs and 3× 400 V outputs.
The interior is clearly arranged, each circuit has its own miniature circuit breaker and all outputs are protected by one main 63 A RCD. This ensures safe operation and limits any failure to the correct circuit.
The box has a plastic housing with carrying handle, is IP44 splash proof and IK08 impact resistant. This makes it suitable for mobile use and for fixed wall mounting.
Key features:
- Complete 63 A distribution box according to EN 61439-4
Suitable for temporary and fixed installations where heavy machines and tools need to be powered.
-
Extensive circuit protection
Each output has its own miniature circuit breaker, either 16 A or 32 A, a fault only switches off the relevant circuit.
-
Main residual current protection (RCD 63 A and 30 mA)
The 4-pole RCD protects the user and prevents dangerous leakage currents.
-
IP44 splash proof
Suitable for environments where splashing water may occur.
- IK08 impact resistance
The housing withstands shocks and daily use on construction sites.
Specifications
| Power supply | 1× 63A CEE 5-pins ingang (3P+N+PE) |
| Input voltage | 3-phase 400V |
| Output voltage | 3-phase 400V & 1-phase 230V |
| Output sockets | 230V: 6× EU 2-pin Schuko, 16A, 230V: 4× CEE 3-pin (L+N+PE), 16A, 400V: 2× CEE 5-pin, 32A, 400V: 1× CEE 5-pin, 16A |
| Isolation class | IP44 |
| Impact resistance | IK08 |
Product Dimensions
| Length | 385 mm |
|---|---|
| Width | 170 mm |
| Height | 460 mm |
| Weight | 6.81 kg |
Package Dimensions
| Length | 500 mm |
|---|---|
| Width | 400 mm |
| Height | 205 mm |
| Weight | 7.98 kg |
