Jacking beam 2000kg

[VL20XAP] Jacking beam 2000kg

Lifts / Jacking Beams Brand: Falco Sollevatori Falco Sollevatori

Product Code: VL20XAP

EAN: 8720028106622

Availability: Available

https://www.valkenpower.com/web/image/product.template/63676/image_1920?unique=cc1a6d9

€ 950.00 950.0 EUR € 950.00

€ 950.00

Not Available For Sale

  • Lifting capacity
  • Lifting height min.
  • Telescopic arms
  • Lifting height max. incl. pads
  • Stroke
  • Platform dimensions
  • Air pressure
  • Width incl. mounting brackets
  • Adapter height

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

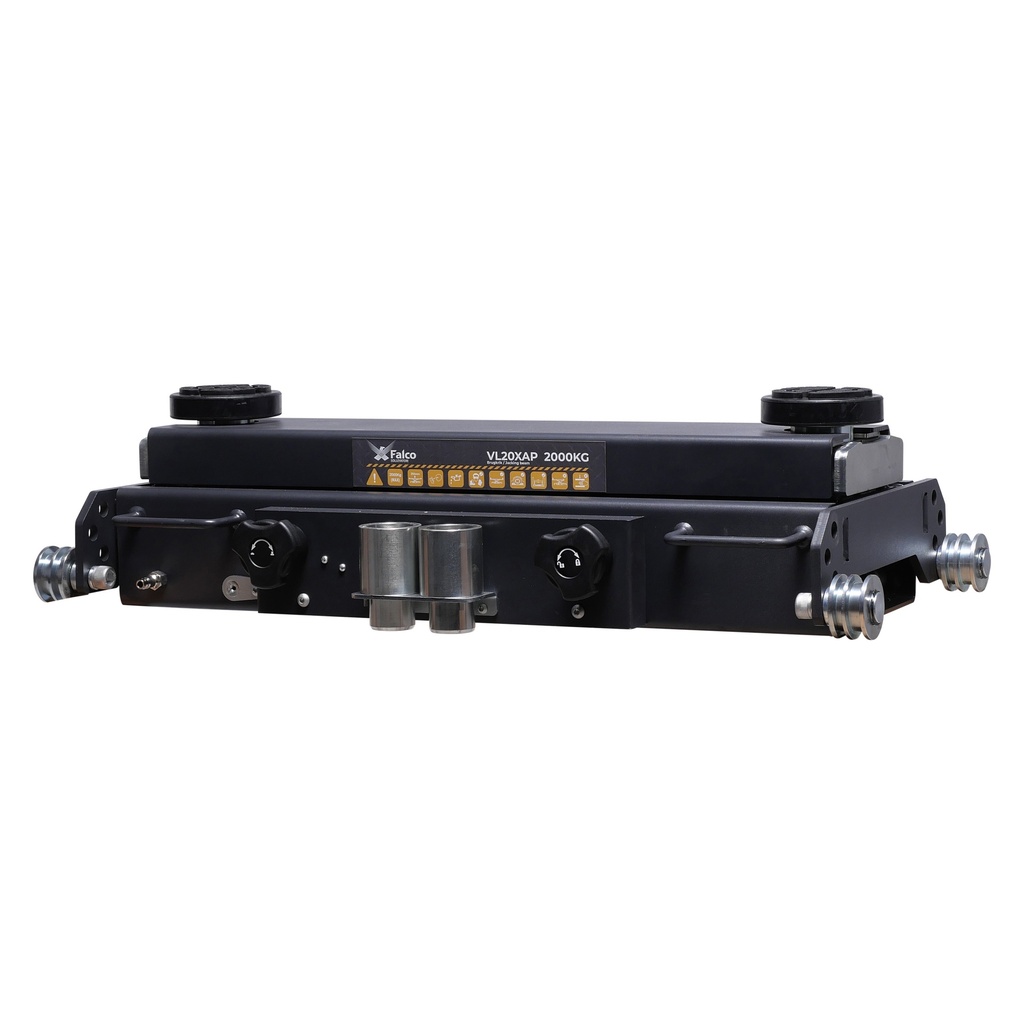

Jacking beam 2000kg
This air operated hydraulic jacking beam from Falco Sollevatori is a great addition for any four column & scissor lift installed in car workshops used for conducting maintenance.The jack can be easily installed and positioned thanks to the special ball bearing steel rollers, which have a universal adjustable position.The Falco jacking beam has an integrated two-stage pump, this system provides an automatic fast lifting stroke without weight and a slow controllable stroke when the jacking beam is lifting the vehicle.
The adapter plates are reversible so the jacking beam can have a min. height of only 90mm which makes it suitable for low cars and sport cars.
It comes with adjustable saddles with screw extension and cup-shaped height adapters to increase the lifting height, it’s equipped with rubber lifting pads for protection of the car body.
With the two-speed lowering system, a loaded car can be safely lowered with minimal decrease in speed.Once the load is of the jacking beam the lowering speed will automatically increase to work efficiently and more safely.

Product Dimensions:
Product Length 410 mm
Product Width 895 mm
Product Height 200 mm
Product Weight 120.0 Kg
Package Dimensions:
Package Length 520 mm
Package Width 950 mm
Package Height 300 mm
Package Weight 132.00 Kg

  • Integrated control
  • Dual action pump
  • Low profile 90mm
  • 2 speed lowering
  • Reversible adapter

Specifications

Lifting capacity 2000 kg
Lifting height min. 215 mm
Telescopic arms 780 - 1610 mm
Lifting height max. incl. pads 465 mm
Stroke 250 mm
Platform dimensions 182 x 755 mm
Air pressure 7.5 - 12 bar
Width incl. mounting brackets 900 - 1318 mm
Adapter height 65 mm
