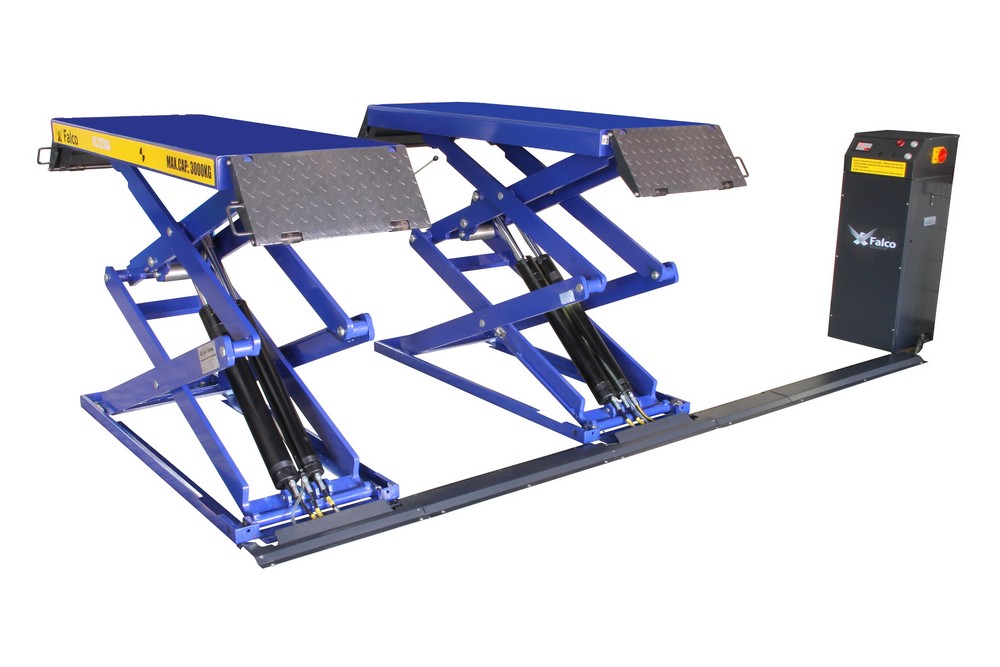

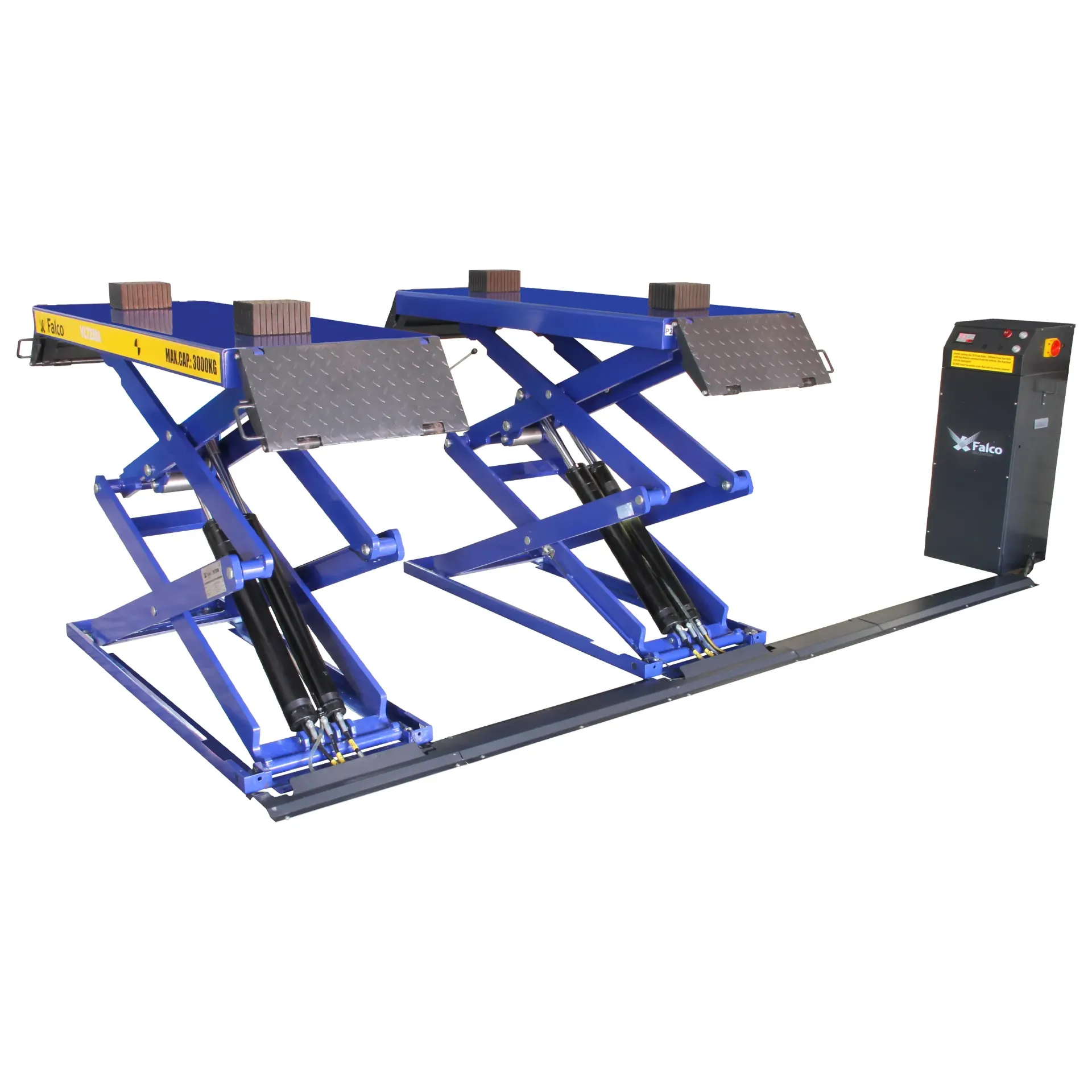

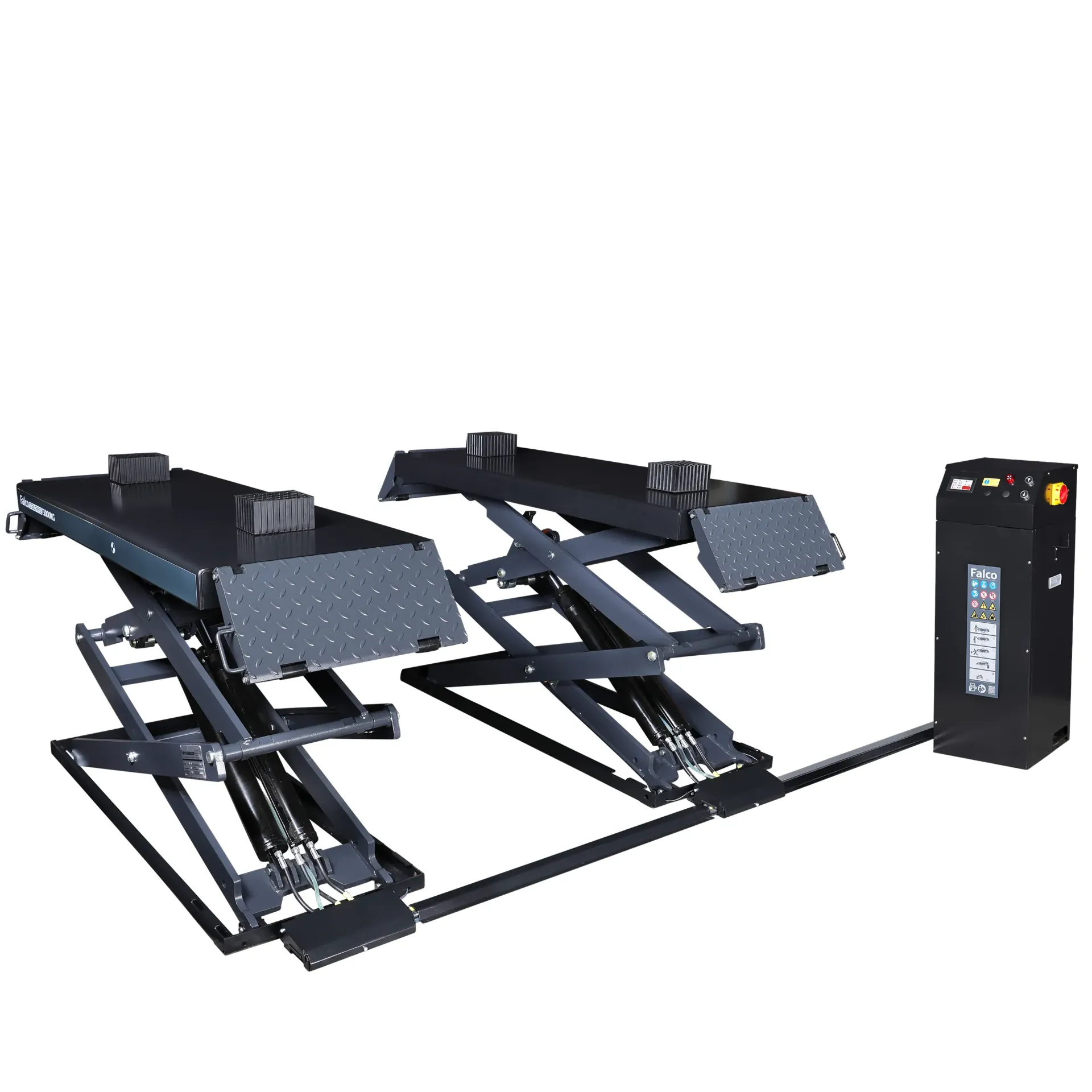

Double scissor lift master-slave 3000kg 400V

Lifts / Crosslifts Brand: Falco Sollevatori Falco Sollevatori

Product Code: VL7230A

EAN: 8720028070411

Availability: Sold Out

Expected back in stock: 5 - 7 weeks

€ 3,811.50 Incl. VAT https://schema.org/SoldOut 3811.5 EUR € 3,811.50

€ 3,150.00

  • Lifting capacity
  • Lifting height max. incl. pads
  • Voltage
  • Lifting height min.
  • Platform length incl. ramps
  • Platform width
  • Distance between the platforms
  • Motor capacity
  • Oil type
  • Lifting time

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Fully automatic scissor lift / scissor lift

This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system and also a locking system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.

Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:

  • total platform length of 2030mm

  • master-slave hydraulic system

  • electro-hydraulic lift with 4 cylinders

  • automatic venting through vent button

  • low profile with minimum lifting height of 117mm

  • automatic synchronization

  • automatic overload protection

  • control valve for controlling the speed when dropping

  • limit sensor for limiting the maximum lifting height and the minimum safety height

  • deadman operation when lifting and lowering

  • foot protection including acoustic protection signal

  • Dutch manual including maintenance protocol and CE certificate 2006/42/EG

  • homologated and certified product according to EN1493:2010

Product Dimensions:
Product Length 2,010 mm
Product Width 1,990 mm
Product Height 1,500 mm
Product Weight 765.0 Kg
Package Dimensions:
Package Length 1,700 mm
Package Width 850 mm
Package Height 1,650 mm
Package Weight 774.00 Kg
Package Type:
1 Pcs

  • Master-slave system: lift is safe in any position

  • Including 4 picking points

  • Adjustable ramps / extensions

  • Automatic overload protection

Specifications

Lifting capacity 3000 kg
Lifting height max. incl. pads 1850 mm
Voltage 400V - 3 Phase
Lifting height min. 117 mm
Platform length incl. ramps 2030 mm
Platform width 595 mm
Distance between the platforms 800 mm (recommended)
Motor capacity 2.6 kW
Oil type CH32 / CH46
Lifting time 35 sec.
