Scissor lift alignment 4000kg 400V

Lifts / Crosslifts Brand: Falco Sollevatori Falco Sollevatori

Product Code: VL9240AL

EAN: 8720028101405

Availability: Sold Out

Expected back in stock: 7 - 9 weeks

€ 7,865.00 Incl. VAT 7865.0 EUR € 7,865.00

€ 6,500.00

  • Lifting capacity
  • Lifting height max.
  • Voltage
  • Ramp height min.
  • Oil type
  • Lane length
  • Lane width
  • Motor capacity

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

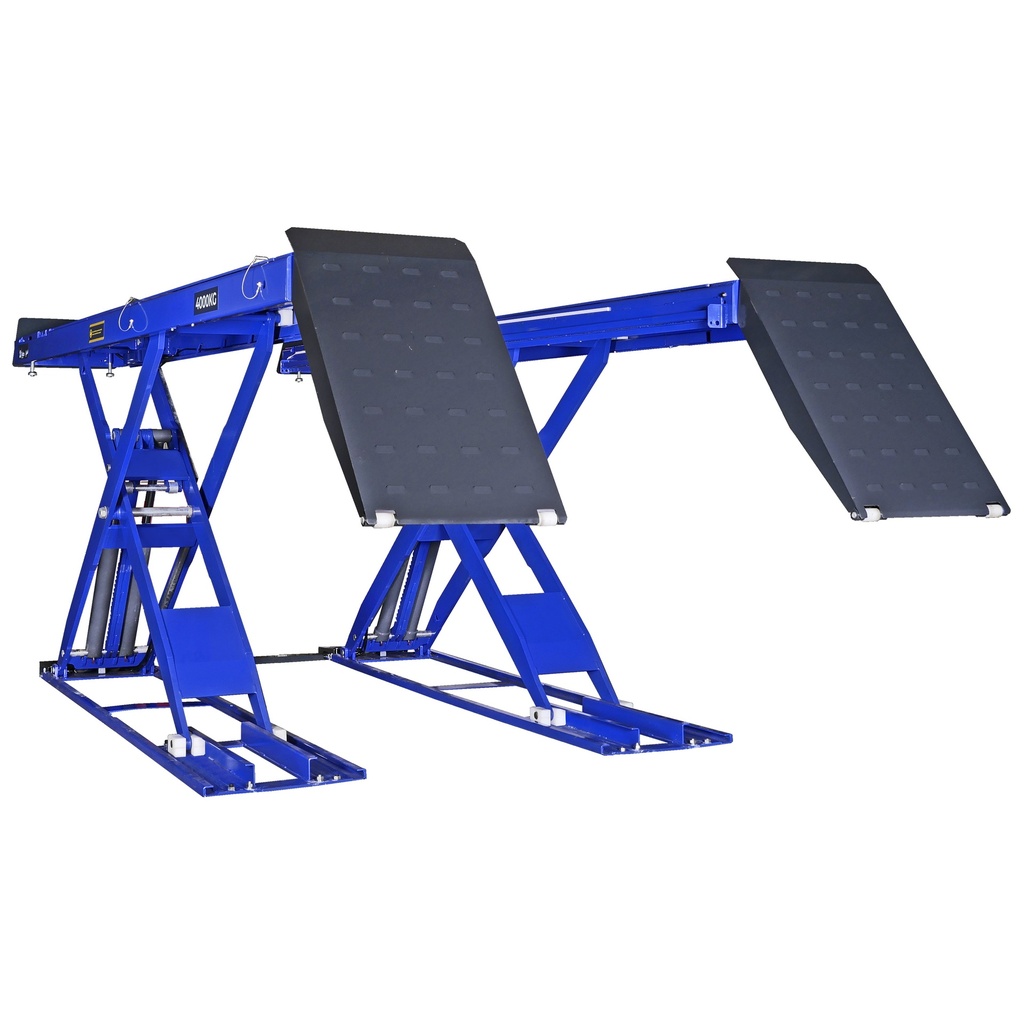

fully automatic scissor lift / scissor bridge / scissor lift
Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
This Falco Sollevatori scissor lift is of high quality and suitable for professional use. At Falco Sollevatori quality and finish come first.
The overall design is very suitable for supporting lift vehicles, wheel alignment, runout processes for 3D wheel alignment and body inspection, and maintenance services.
Minimal size for lift in lowest position suitable for lifting low-profile vehicles. Also ideal for placing on the floor use and installation.
Due to the long carriageways of 4.5m, the lift is suitable for small and large passenger cars, buses and heavier commercial vehicles.
The hydraulic system is equipped with 4 hydraulic cylinders and an extra mechanical safety system. It’s more secure and reliable thanks to its robust construction and well thought-out design, this scissor lift is equipped with the following handy features as standard:

  • Long lanes of 4.5 meters
  • Minimum height is only 210mm, ideal for on ground installation
  • Roadways equipped with alignment plates
  • Electric Hydraulic Double Transpump
  • The lift is suitable for both on floor and in floor installations
  • Equipped with four powerful hydraulic cylinders
  • Control system uses printing PCB and Siemens electrical parts
  • Automatic air bleading function
  • Automatic synchronization system
  • Automatic overload protection
  • Ramp with anti-slip profile
  • Control valve for controlling the speed when descending
  • Limit sensors for limiting the maximum lift height and the minimum safety height
  • Dead man's operation when lifting and lowering
  • Foot protection incl. acoustic safety signal
  • Dutch manual incl. maintenance protocol and CE certificate 2006/42/EG
  • Complies with the NEN-EN1493 safety standard
Product Dimensions:
Product Length 5,325 mm
Product Width 2,220 mm
Product Height 2,230 mm
Product Weight 1,980.0 Kg
Package Dimensions:
Package Length 4,850 mm
Package Width 650 mm
Package Height 1,750 mm
Package Weight 2,000.00 Kg

  • Lift capacity 4000kg
  • Accessible all around
  • incl Rails for optional Jacking Beam
  • Suitable for low cars
  • incl LED light kit


Lifting capacity 4000 kg
Lifting height max. 1800 mm
Voltage 400V - 3 Phase
Ramp height min. 210 mm
Oil type CH32 / CH46
Lane length 4500 mm
Lane width 630 mm
Motor capacity 3 kW
