Olie pressure gauge / universal oil pressure tester / oil pressure test kit
This oil pressure test set is suitable for checking the oil pressure of an engine. Diagnoses oil pumps and motors, oil pressure switches and indicators. With no less than 10 adapters, the set is suitable for almost all engines.

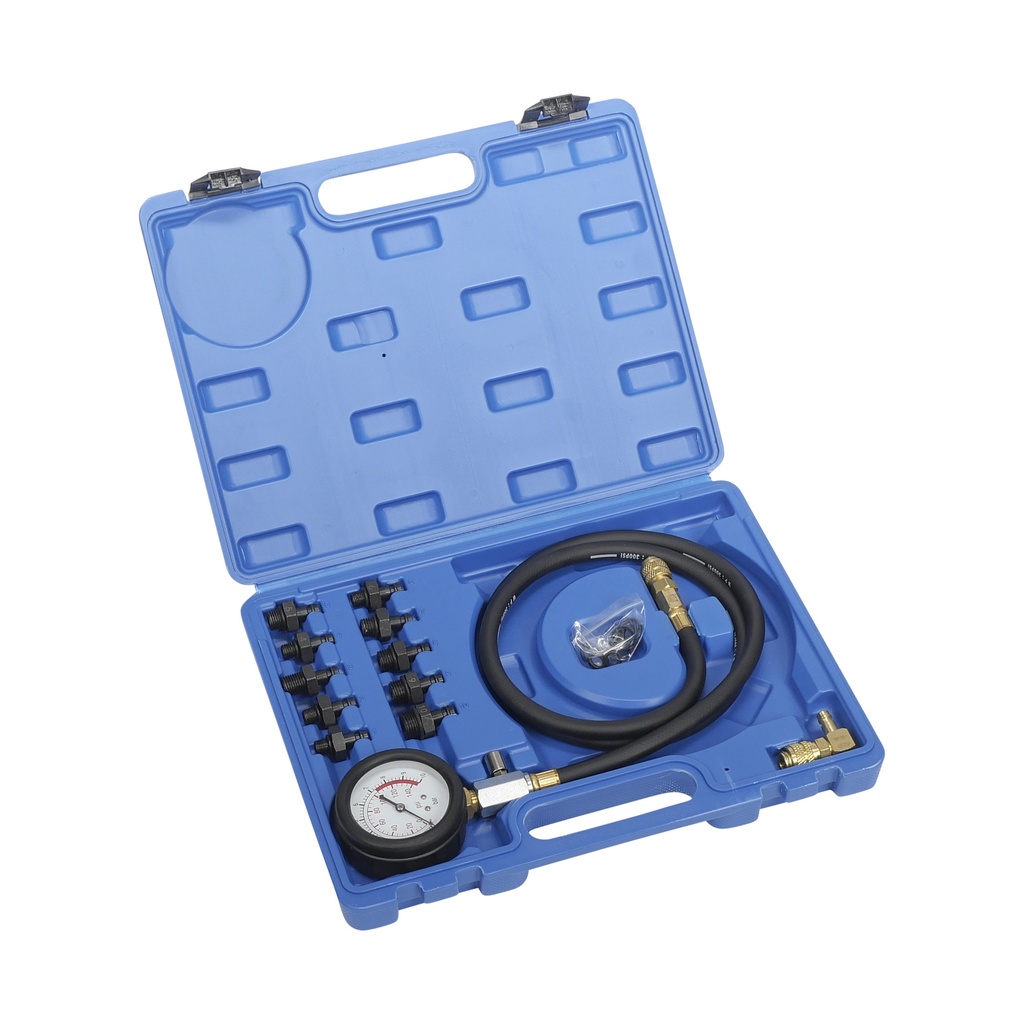

The set consists of a pressure gauge with hose, a 90 degree universal joint and 10 adapters.
The pressure gauge is clearly legible, has 2 scales, has a vent valve, a range of 0 - 10bar (0 - 140psi) and a flexible hose of 1200mm with a quick coupling at the end. The 10 adapters can easily be connected here. The 90 degree universal joint ensures that hard to reach places are also accessible.
Adapter sizes:
R 1/8" DIN 2999
1/8" x 27 NPT
1/4" x 18 NPT
3/8" x 20 UNF
1/2" x 20 UNF
M10 x 1,0
M12 x 1,2
M14 x 1,5
M16 x 1,5
M18 x 1,5
| Product Dimensions: | |
|---|---|
| Product Length | 335 mm |
| Product Width | 255 mm |
| Product Height | 54 mm |
| Product Weight | 1.39 Kg |
| Package Dimensions: | |
| Package Length | 335 mm |
| Package Width | 255 mm |
| Package Height | 54 mm |
| Package Weight | 1.39 Kg |
| Package Type: | |
| 10 Pcs |
