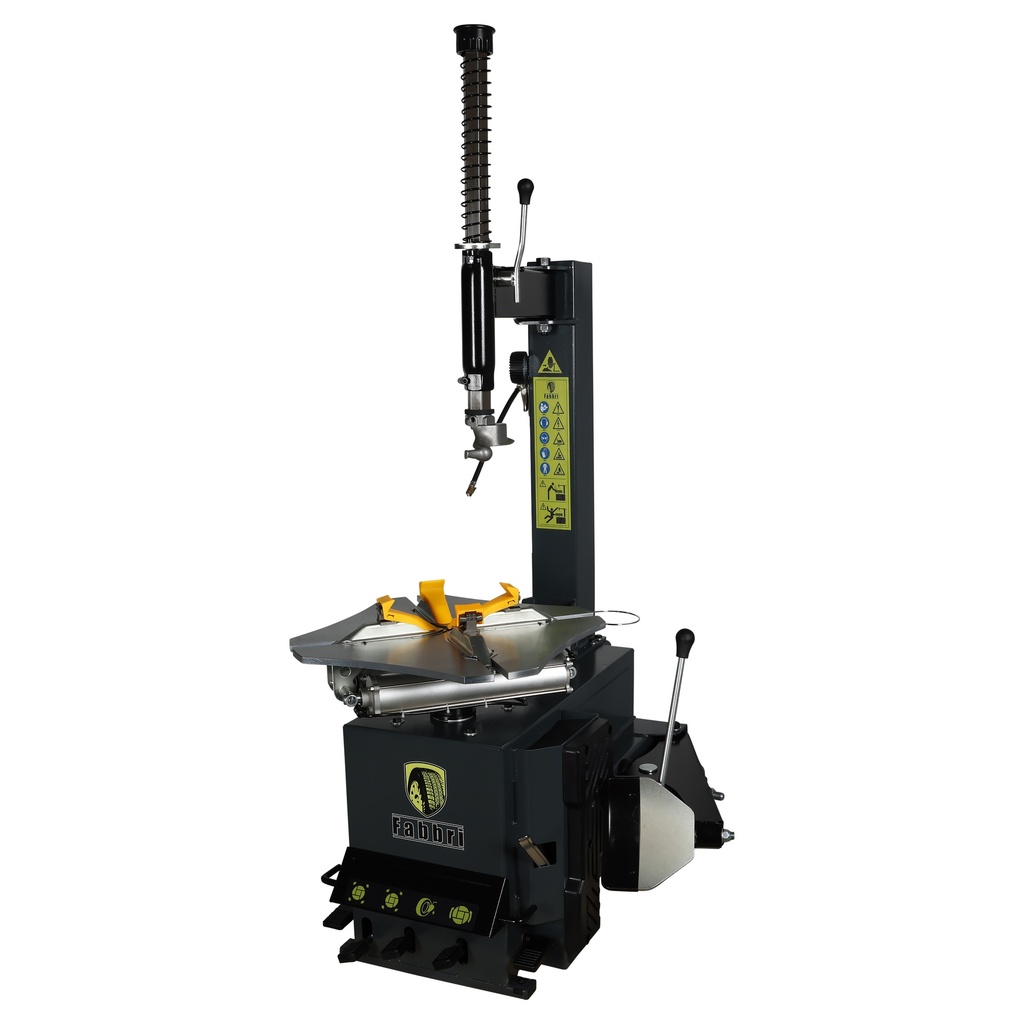

The Fabbri ZH626 tyre changer is a powerful and efficient model for mounting and demounting both standard and larger car tyres. Thanks to its clever design and swing arm construction, this tyre mounting machine is ideal for garages, workshops and mobile use in service vans where space-saving is important without compromising on capacity or ease of use.
The unit supports rim diameters from 10” to 24” and handles a wide range of tyre sizes, including wider profiles and SUV tyres. Operation is via foot pedals, allowing for simple and ergonomic use. The robust bead breaker with anti-slip rubber pad enables controlled separation of stiff tyre beads, while the self-centering four-jaw chuck ensures quick and secure rim positioning.
The universal mounting head is suitable for both steel and aluminium rims. Plastic protection strips help prevent damage to sensitive surfaces. Additionally, this tyre changer is prepared for expansion with the optional ZH626HA helper arm, allowing safe and easy handling of runflat and low-profile tyres.
Main features:
-
Swing arm construction
For efficient workshop layout.
-
Rim diameter range from 10” to 24”
For quick and secure rim positioning.
- Anti-slip bead breaker
Ensures powerful yet controlled bead separation.
-
Universal mounting head
Suitable for steel and aluminium rims. Plastic strips protect against surface damage.
-
Expandable with ZH626HA helper arm
For additional support when mounting stiff or runflat tyres.
This versatile and expandable tyre changer offers a reliable foundation for garages performing professional tyre services while maintaining flexibility for future applications.
Standard included accessories:
Tyre lever
Jaw protection cap set
Plastic protector strips
Tyre inflator
Specifications
| Rim diameter range | 10" - 24" |
| Tire width max. | 14" (355 mm) |
| Wheel diameter max. | 41" (1040 mm) |
| External clamping range | 10" - 21" (254 - 533 mm) |
| Internal clamping range | 12" - 24" (305 - 610 mm) |
| Working air pressure | 8 - 10 Bar |
| Power supply | 230V |
| Frequency | 50 Hz |
| Motor capacity | 1.1 kW |
| Bead breaker force | 2500 kg |
| Rotation speed | 6 - 8 rpm |
| Mounting head shaft diameter | 30 mm |
| Sound level | 70 dB |
| Product Dimensions: | |
|---|---|
| Product Length | 960 mm |
| Product Width | 1,050 mm |
| Product Height | 1,825 mm |
| Product Weight | 196.0 Kg |
| Package Dimensions: | |
| Package Length | 750 mm |
| Package Width | 970 mm |
| Package Height | 910 mm |
| Package Weight | 202.00 Kg |
| Package Type: | |
| 1 Pcs |
