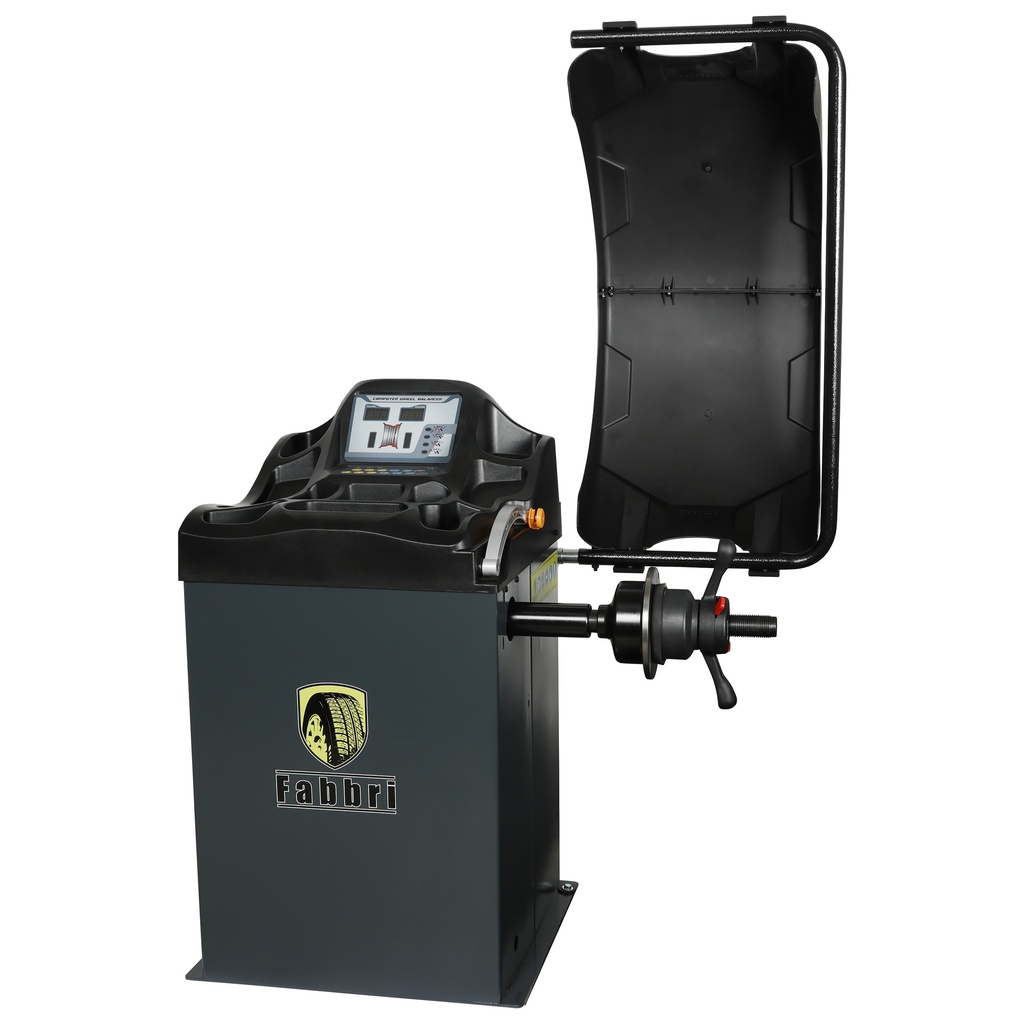

The Fabbri balancing machine ZH825B is a semi-automatic, user-friendly model ideal for professional garages and workshops where speed, safety and reliability are key. Thanks to the built-in motor, the wheel is automatically rotated for fast and accurate balance measurement. Parameters are entered manually, allowing the user to maintain full control.
With a wheel weight capacity of up to 65 kg and a rim diameter range of 10“ to 24”, this wheel balancer is suitable for a variety of vehicles. The protective cover increases safety and automatically activates the measuring process as soon as it is closed. Operation via clear buttons ensures efficient operation. The foot pedal can be used to accurately stop the wheel at the correct position for placement of the balancing weight.
Key features:
- Automatic wheel rotation
Electrically driven for faster and more consistent balancing.
- Manual input of rim parameters
For precise setting of diameter, spacing and width.
- Optional motorcycle accessory pack
For balancing motorcycle tires with the SBM99MA adapter.
- Multiple balancing programs
For dynamic balancing of steel and aluminum car rims, and static balancing of motorcycle wheels.
- Rim diameter range 10" - 24"
Also suitable for SUVs and light commercial vehicles.
A reliable choice for mechanics looking for a semi-automatic tyre balancer for workshop use.
Standard accessories included:
Wheel pliers
Calibration weight
Wheel width gauge
Balancing clamp
Conuss kit
Specifications
| Power supply | 230V |
| Motor power | 0.2 kW |
| Wheel weight max. | 65 kg |
| Wheel diameter max. | 1000 mm |
| Rim diameter range | 10" - 24" (254 - 610 mm) |
| Rim width range | 1.5" - 17" (38 - 432 mm) |
| Balancing accuracy (car wheels) | 1g |
| Balancing shaft | 36 mm |
| Balancing time | 7 sec. |
| Noise level | <70 dB |
| Cone size (max. - min.) | 65mm - 45mm, 80mm - 55mm, 110m - 75mm, 135mm - 95mm |
| Product Dimensions: | |
|---|---|
| Product Length | 1,140 mm |
| Product Width | 670 mm |
| Product Height | 1,120 mm |
| Product Weight | 82.0 Kg |
| Package Dimensions: | |
| Package Length | 900 mm |
| Package Width | 560 mm |
| Package Height | 1,150 mm |
| Package Weight | 97.00 Kg |
