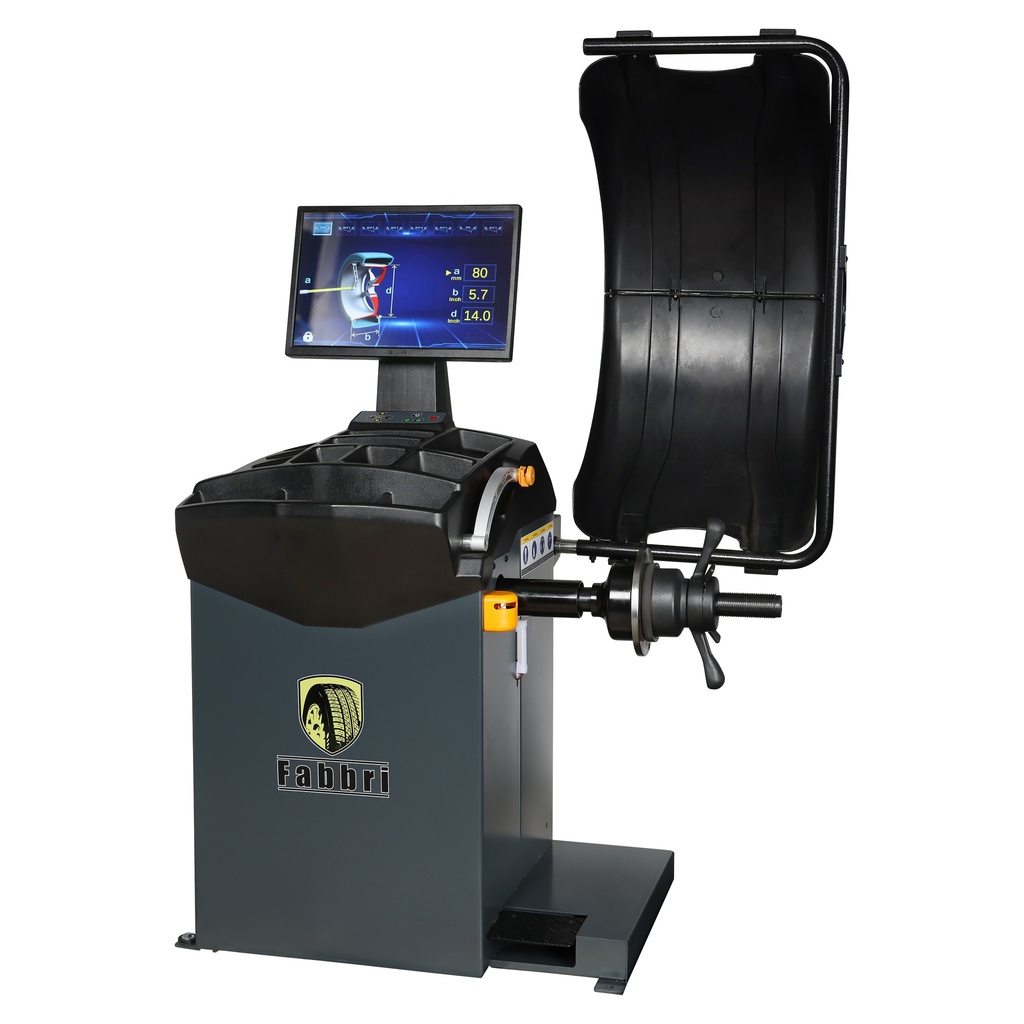

The Fabbri balancing machine ZH827X is an automatic model for professional garages where speed, precision and ease of use are key. The machine combines smart measurement systems with a wide LCD display, which clearly shows all balance data and accompanying instructions. Multiple balancing programmes for dynamic and static balancing support a wide range of applications, from passenger cars to motorbike wheels.
This wheel balancer is equipped with a laser positioning system, which indicates exactly where the balancing weight should go on aluminium rims. The integrated sonar sensor automatically measures the rim width, while distance and diameter are easily entered using the electronic measuring arm. This prevents errors and speeds up setting considerably.
With a wheel weight capacity of up to 65 kg and a rim diameter range of 10‘ to 24’, this tyre balancer is suitable for a wide variety of vehicles. The autoposition lock automatically rotates the wheel to the correct position and holds it for weight placement, while the protective cover automatically starts the measuring process when closed. Thanks to the integrated working light, you always have good visibility when applying the weights and checking the rim surface.
Key features:
- Wide LCD display
Clear, uncluttered display of measurement results and instructions.
- Sonar measurement
Measures rim width automatically without manual input.
- Electronic measuring arm
Holding the measuring arm against the rim is sufficient for parameter recognition.
- Laser positioning on aluminium rims
Indicates exactly where to place the balancing weight, which prevents damage, especially on sensitive aluminium rims.
- Autoposition lock
The wheel is automatically rotated to the correct position and held for weight placement.
An automatic balancer for mechanics who strive for precision, speed and ease of use when balancing wheels.
Accessories supplied as standard:
Wheel lead pliers
Calibration weight
Wheel width gauge
Balancing clamp
Conuss set
Specifications
| Power supply | 230V |
| Motor power | 0.2 kW |
| Wheel weight max. | 65 kg |
| Wheel diameter max. | 1000 mm |
| Rim diameter range | 10" - 24" (254 - 610 mm) |
| Rim width range | 1.5" - 17" (38 - 432 mm) |
| Balancing accuracy (car wheels) | 1g |
| Balancing shaft | 36 mm |
| Balancing time | 7 sec. |
| Balancing speed | 200 rpm |
| Noise level | <70 dB |
| Cone size (max. - min.) | 65mm - 45mm, 80mm - 55mm, 110m - 75mm, 135mm - 95mm |
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 0.0 Kg |
| Package Dimensions: | |
| Package Length | 0 mm |
| Package Width | 0 mm |
| Package Height | 0 mm |
| Package Weight | 0.00 Kg |
