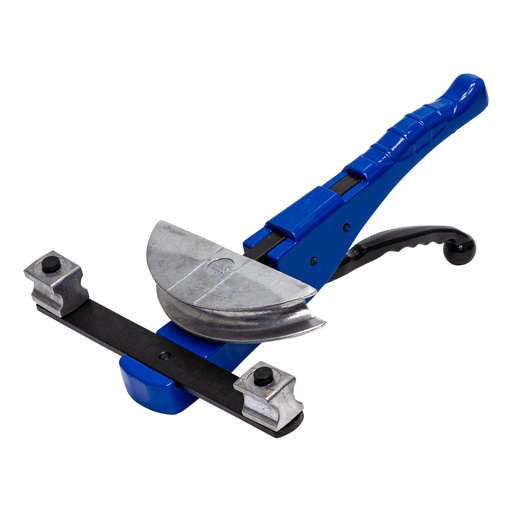

Hand Rohrbiegemaschine
Größen und Radius:
10 mm = 23,2
12 mm = 25,3
14 mm = 40
15 mm = 40
16 mm = 39
18 mm = 64,5
20 mm = 63
22 mm = 65,5

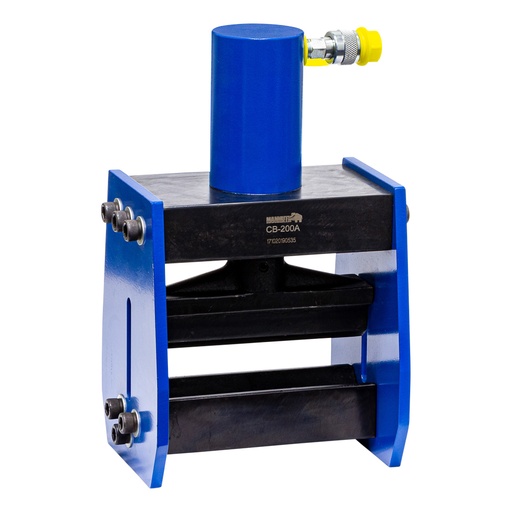

Hydraulische Bieg Gerat
Bending tool for bending copper and aluminum plate.
bending force = 20 ton
max. thickness of sheet = 12mm
width of sheet = 200mm
height = 370mm

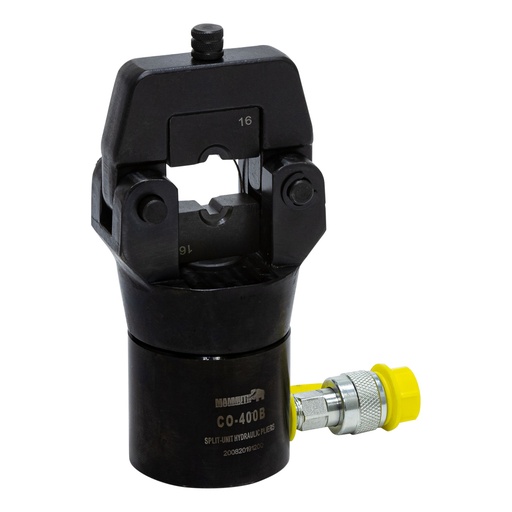

Hydraulische Crimp Werkzeug 16-400mm
- crimping range = 16-400mm^2
- crimping force = 1,55 bar
- crimping type = hexagon
- stroke = 22mm
- crimping dies = 16,25,35,50,70,95,120,150,185,240,300,400mm2

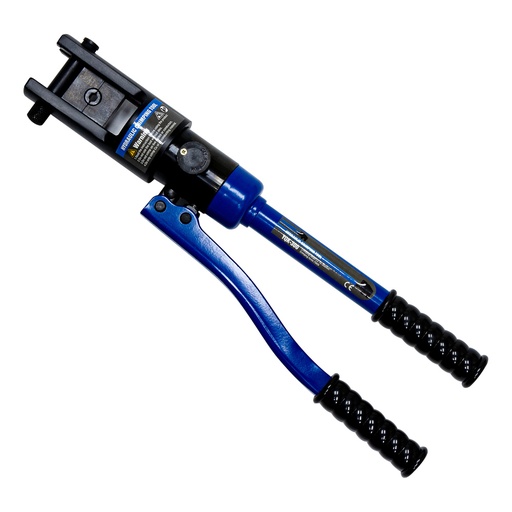

Hydraulische Kabelcrimpzange
This tool is a professional tool for crimping copper and aluminium lugs in different types from 10mm2 till 300mm2.
- crimping range = 16-300mm2
- crimping force = 100Kn
- crimping dies: 16, 25, 35, 50, 70, 92, 120, 150, 185, 240 and 300mm2

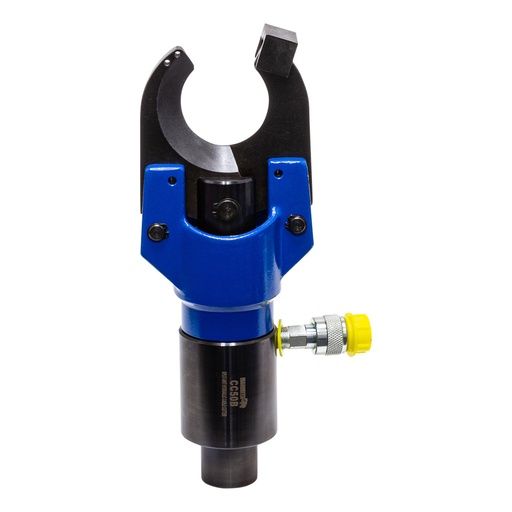

Hydraulischisches Schneidwerkzeug
Split hydraulic cable cutter can work with hydraulic hand pump or an electric hydraulic pump. It is suited for big size of telephone cables or armoured copper and aluminum cables.
cutting force = 60KN
cutting range = 50mm max for telephone cable, 45mm max for armoured copper / aluminium cable
Packed in steel case
