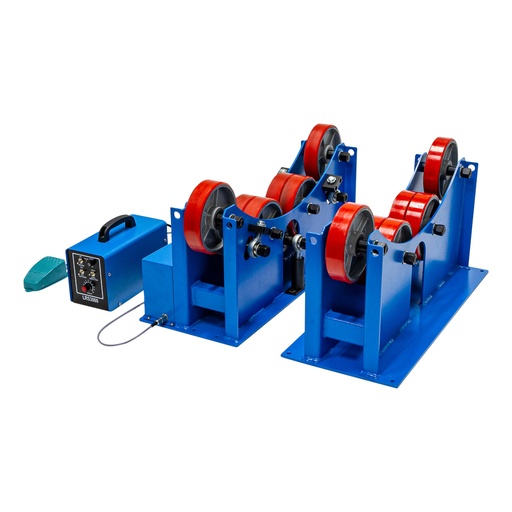

Welding turning roll

This Cowley welding turning roll is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotational speed you can weld extremely precisely. Therefore the machine contributes to the improvement of the safety, precision, effectiveness and speed of the welding work.
With the help of the control box it is easy to set the rotation on/off, rotation direction left/right and rotation speed. Finally, the machine is operated with the foot pedal.

Technical specifications:

• power supply = 230V

• frequency = 50/60 Hz

• power = 400W

• load capacity = 3000kg

• rotation speed = 100-1100mm/min

• diameter range = 70 - 1200mm

• diameter rollers = 200mm

• width rollers = 50mm

• measurements control box = 320 x 140 x 180mm

• measurements  machine = 810 x 660 x 435mm


Rollenbockanlagen

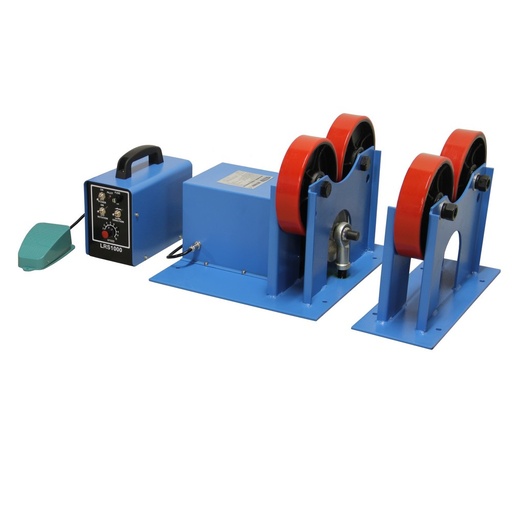

This Cowley welding turning roll is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotational speed you can weld extremely precisely. Therefore the machine contributes to the improvement of the safety, precision, effectiveness and speed of the welding work.
With the help of the control box it is easy to set the rotation on/off, rotation direction left/right and rotation speed. Finally, the machine is operated with the foot pedal.

Technical specifications:

• power supply = 230V

• frequency = 50/60 Hz

• power = 230W

• load capacity = 1000kg

• rotation speed = 80 - 1600mm/min

• diameter range = 20 - 800mm

• diameter rollers = 200mm

• width rollers = 50mm

• measurements control box = 255 x 125 x 285mm

• measurements machine = 550 x 450 x 315mm
