Holzspalter

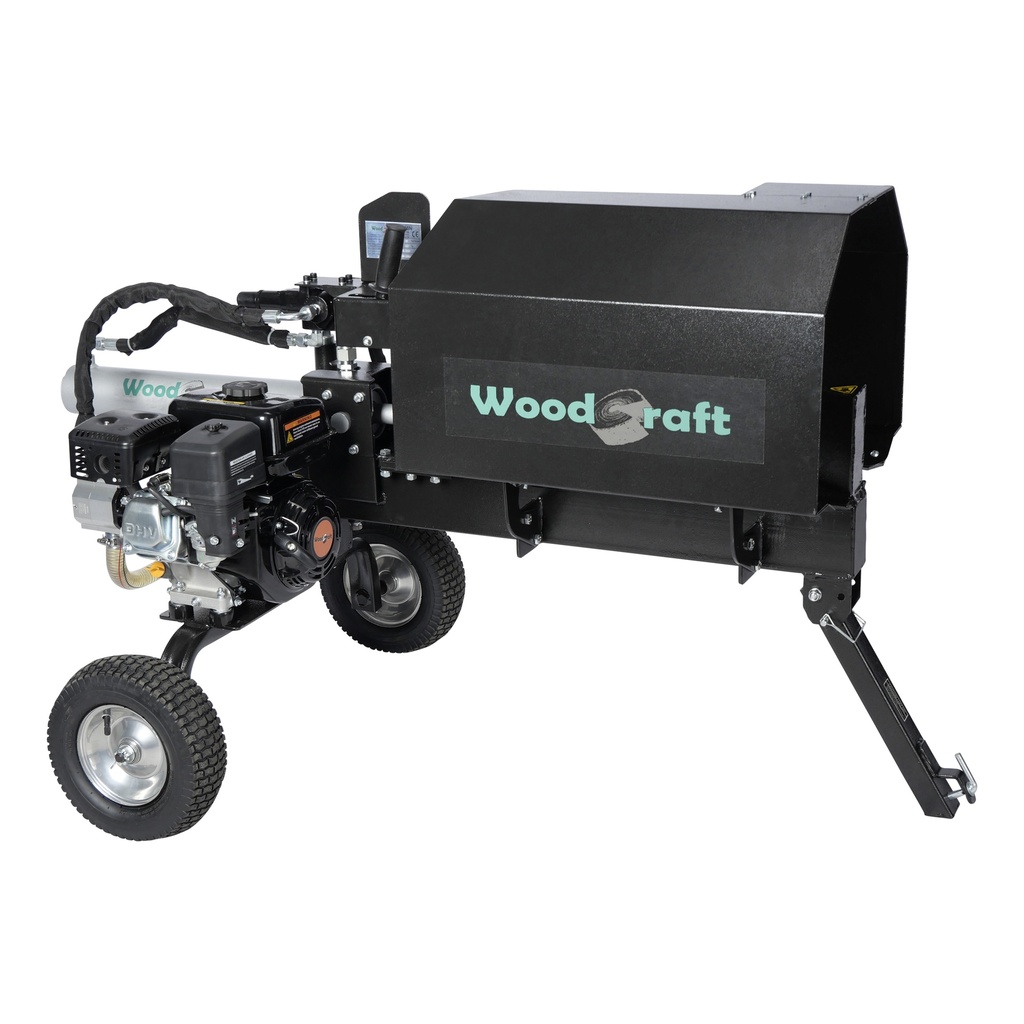

This gasoline-powered log splitter is used for splitting firewood, softwood and hardwood. The splitter can only be used horizontally.
Adjustable for logs of different lengths. The splitter is also equipped with a tow bar for easy attachment behind a tractor or other vehicle and a protective cover for extra safety.
Specifications:
capacity = 12 ton
cycle = 9 sec
hydraulic oil capacity = 8L (not included!)
max. length wood = 53cm
max. pressure = 215 bar (3600psi)
max. pump output = 10gpm / 37,9L/min
wheel size = 13"
engine power = 6,5HP (196cc) / 3600rpm
motor type = YM168F19
axle size = 19,05mm
equiped with non-return valve
max. towing speed = 8km/h
Specifications
| Spaltkraft | 12 ton |
| Ölkapazität | 8 L (not included) |
| Arbeitszykluszeit | 8 Sek. |
| Fassungsvermögen des Tanks | 6.5 L |
| Hubraum | 208 cm³ |
| Raddurchmesser | 330 mm |
| Spaltkeil | 15.2 cm |
| Zylinderdurchmesser | 79.4 mm |
| Schlag | 482.6 mm |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 1.660 mm |
| Produkt Breite | 920 mm |
| Produkt Höhe | 940 mm |
| Produktgewicht | 0,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 1.210 mm |
| Breite des Pakets | 780 mm |
| Paket Höhe | 530 mm |
| Gewicht des Pakets | 148,00 Kg |
| Pakettyp: | |
| 1 Stück |
