Garagenpresse / Lagerpresse / Rahmenpresse

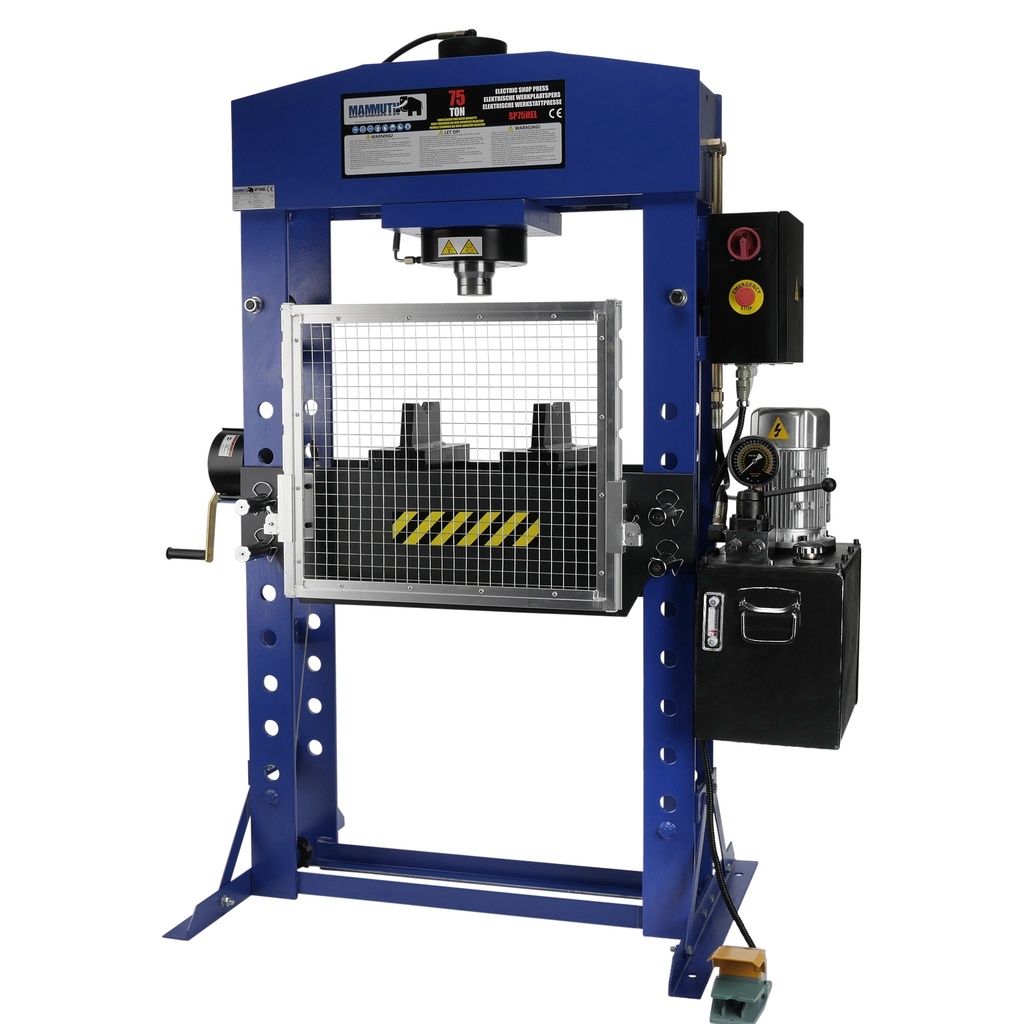

This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
The work bed is easy to adjust in height using the winch and handle.
The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.
Please note: the press is supplied without CH22 hydraulic oil (29 liters).
Specifications:
capacity = 75 ton
cylinder stroke = 250mm
bed width = 800mm
bed depth = 280mm
working range = 945mm
power = 1,5kW
voltage = 400V
speed = 1400rpm
outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec
incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec
Packed in 2 boxes:
109 x 32,5 x 204cm 463kg
52,5 x 36,5 x 79cm 85kg
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 1.140 mm |
| Produkt Breite | 800 mm |
| Produkt Höhe | 1.860 mm |
| Produktgewicht | 491,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 2.040 mm |
| Breite des Pakets | 1.090 mm |
| Paket Höhe | 365 mm |
| Gewicht des Pakets | 548,00 Kg |
