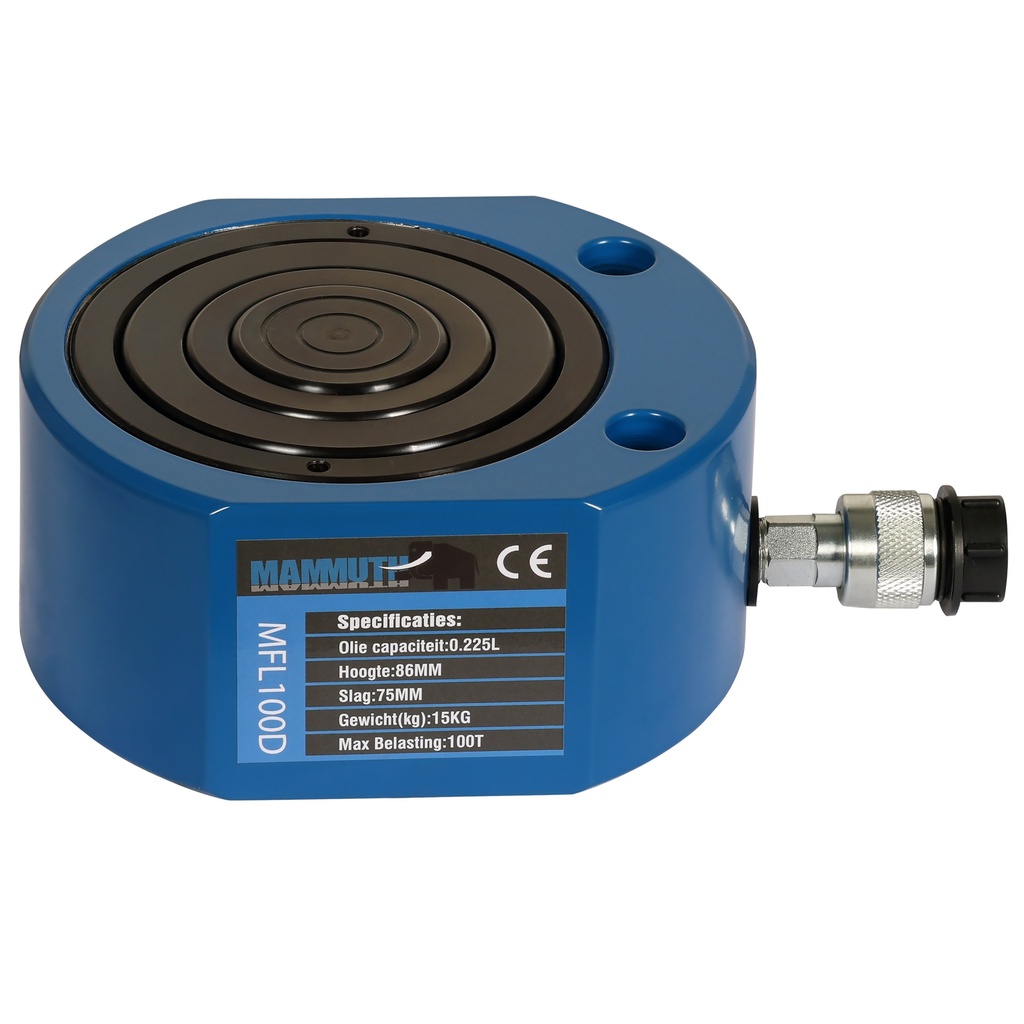

Flat cylinder double
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 100 ton
stroke = 75mm
effective area = 95cm^2
oil capacity = 0,225 L
height of product = 86mm
extended height = 163mm
outside diameter = 185x160mm
bore diameter = 130mm
plunger diameter = 110mm
max. pressure = 700bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 0 mm |
| Largeur du produit | 0 mm |
| Hauteur du produit | 0 mm |
| Poids du produit | 15,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 385 mm |
| Largeur du paquet | 330 mm |
| Hauteur du paquet | 210 mm |
| Poids du Colis | 16,00 Kg |
