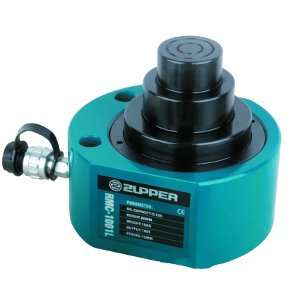

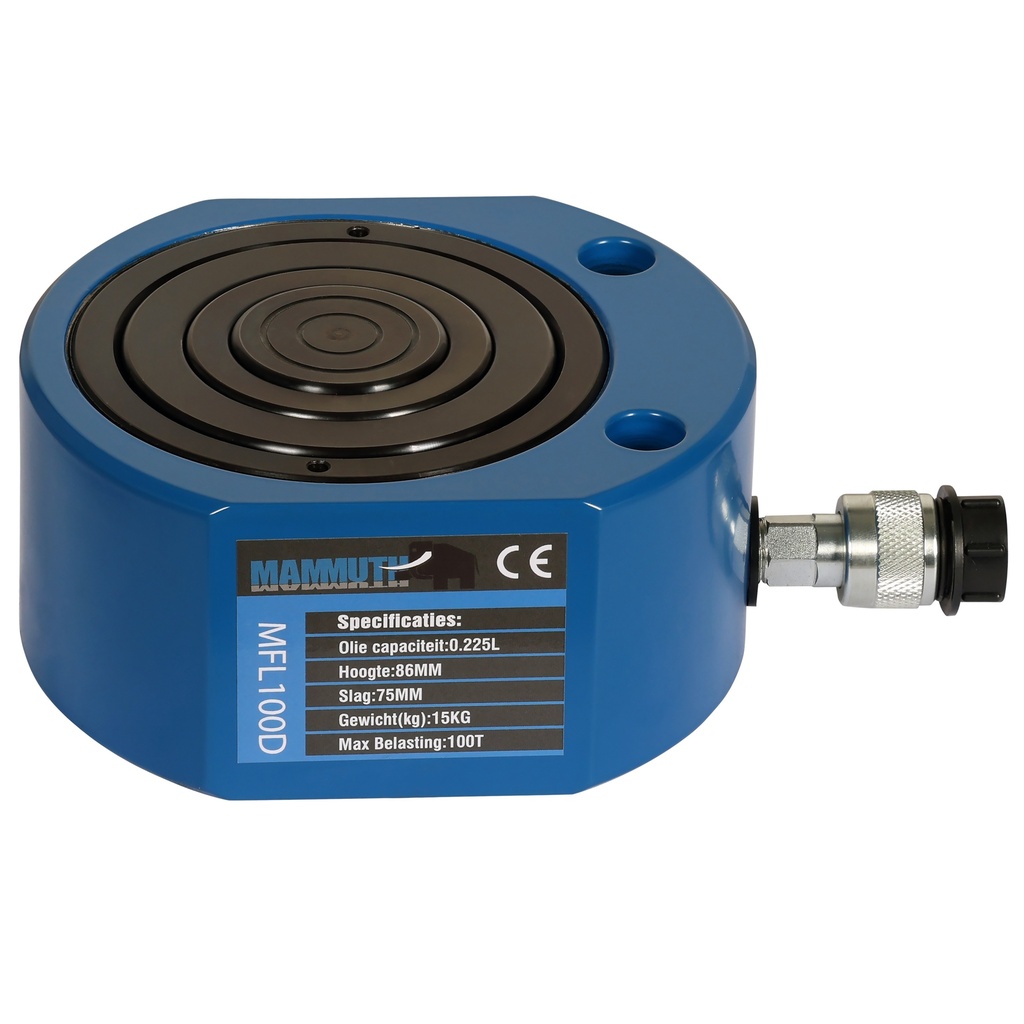

Hydraulikzylinder doppelt
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
Specifications
| Kapazität | 100 ton |
| Druk max. | 700 Bar |
| Schlag | 75 mm |
| Nutzfläche des Zylinders | 95cm² |
| Ölkapazität | 0.225 L |
| Zylinderhöhe | 86 mm |
| Außendurchmesser | 185 x 160 mm |
| Bohrungsdurchmesser | 130 mm |
| Plungerdurchmesser | 110 mm |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 0 mm |
| Produkt Breite | 0 mm |
| Produkt Höhe | 0 mm |
| Produktgewicht | 15,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 385 mm |
| Breite des Pakets | 330 mm |
| Paket Höhe | 210 mm |
| Gewicht des Pakets | 16,00 Kg |
