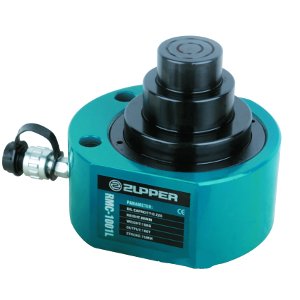

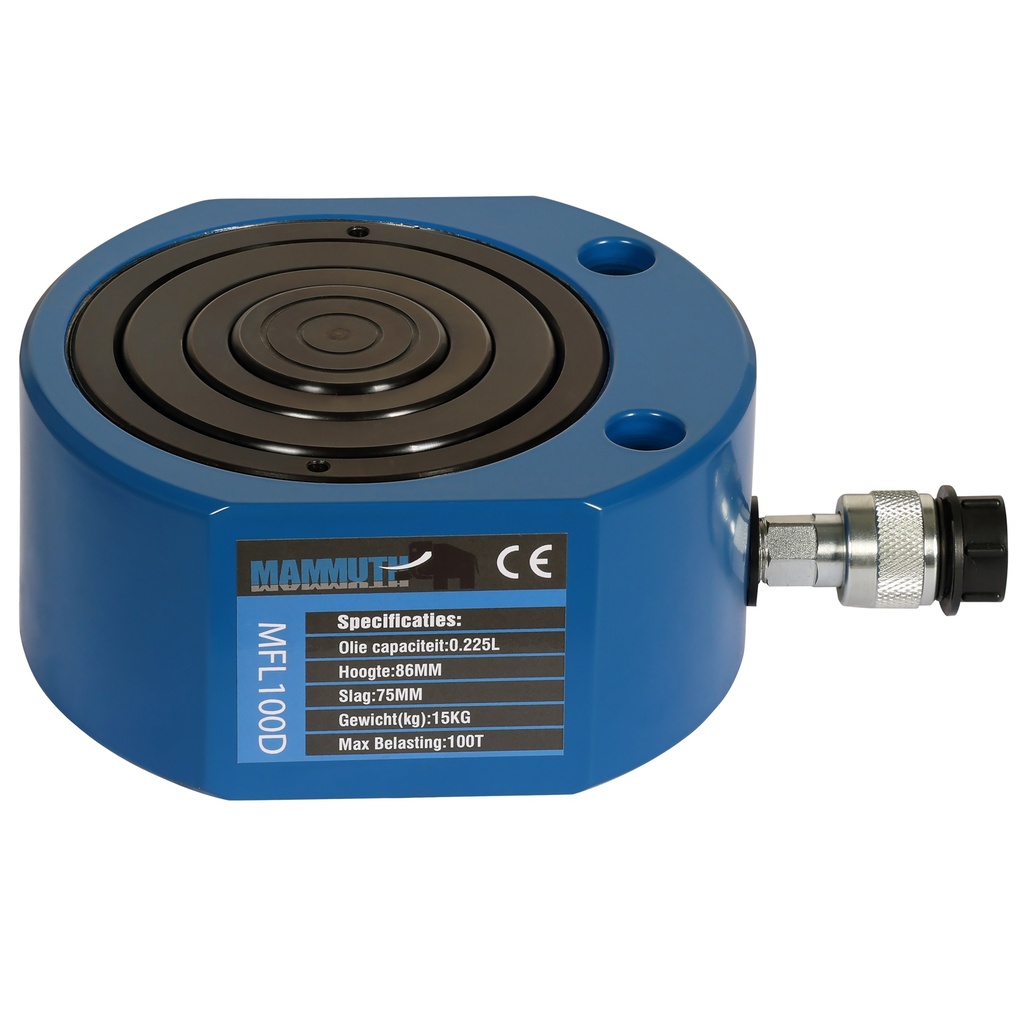

Flat cylinder double
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
Specifications
| Capacity | 100 ton |
| Pressure max. | 700 Bar |
| Stroke | 75 mm |
| Effective pressure area | 95cm² |
| Oil capacity | 0.225 L |
| Cylinder height | 86 mm |
| Outside diameter | 185 x 160 mm |
| Bore diameter | 130 mm |
| Plunger diameter | 110 mm |
Product Dimensions
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 15.0 kg |
Package Dimensions
| Length | 385 mm |
|---|---|
| Width | 330 mm |
| Height | 210 mm |
| Weight | 16.00 kg |
