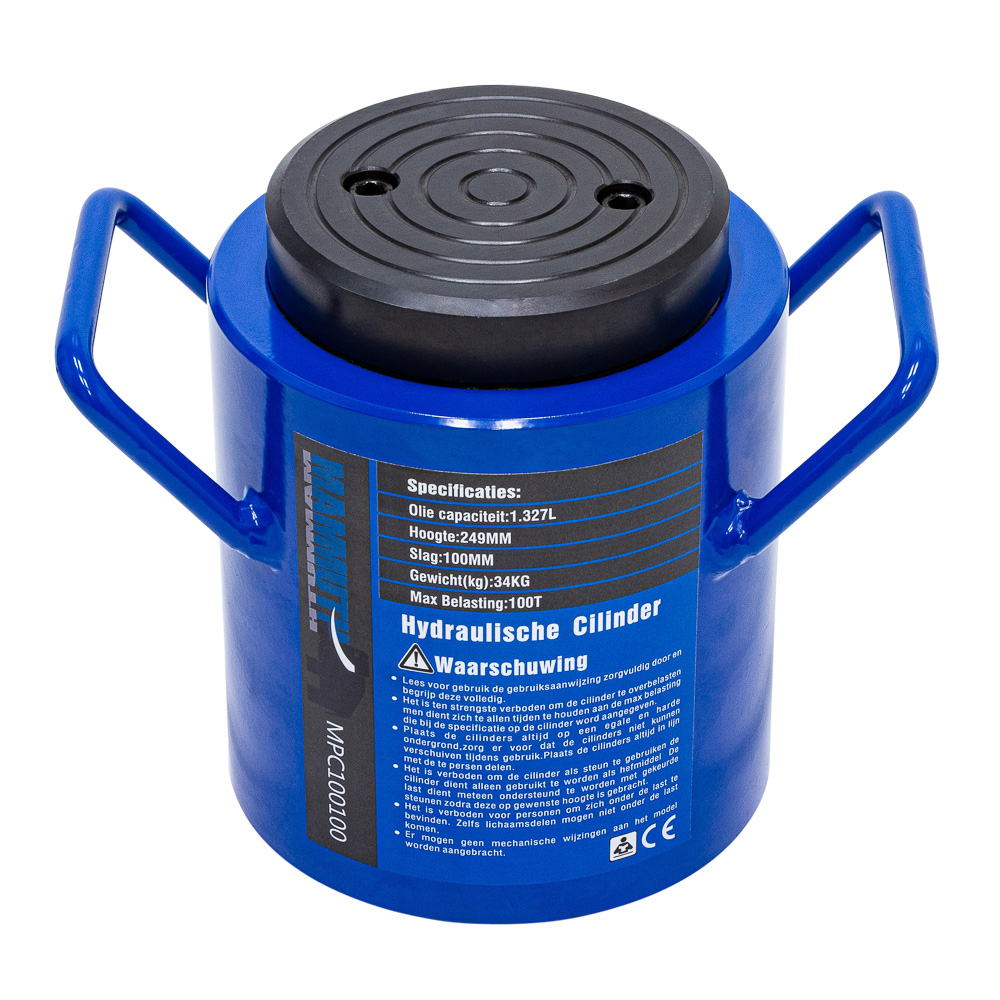

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 100 ton
stroke = 100mm
effective area = 132,7cm^2
oil capacity = 1,327 L
height of product = 212mm
extended height = 349mm
outside diameter = 175mm
bore diameter = 130mm
plunger diameter = 110mm
thread for input oil port (ZG) = 3/8" - 22,5
saddle protrusion form plgr = 27mm
saddle is removable
max. pressure = 700bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 235 mm |
| Largeur du produit | 165 mm |
| Hauteur du produit | 215 mm |
| Poids du produit | 33,9 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 300 mm |
| Largeur du paquet | 200 mm |
| Hauteur du paquet | 310 mm |
| Poids du Colis | 35,00 Kg |
