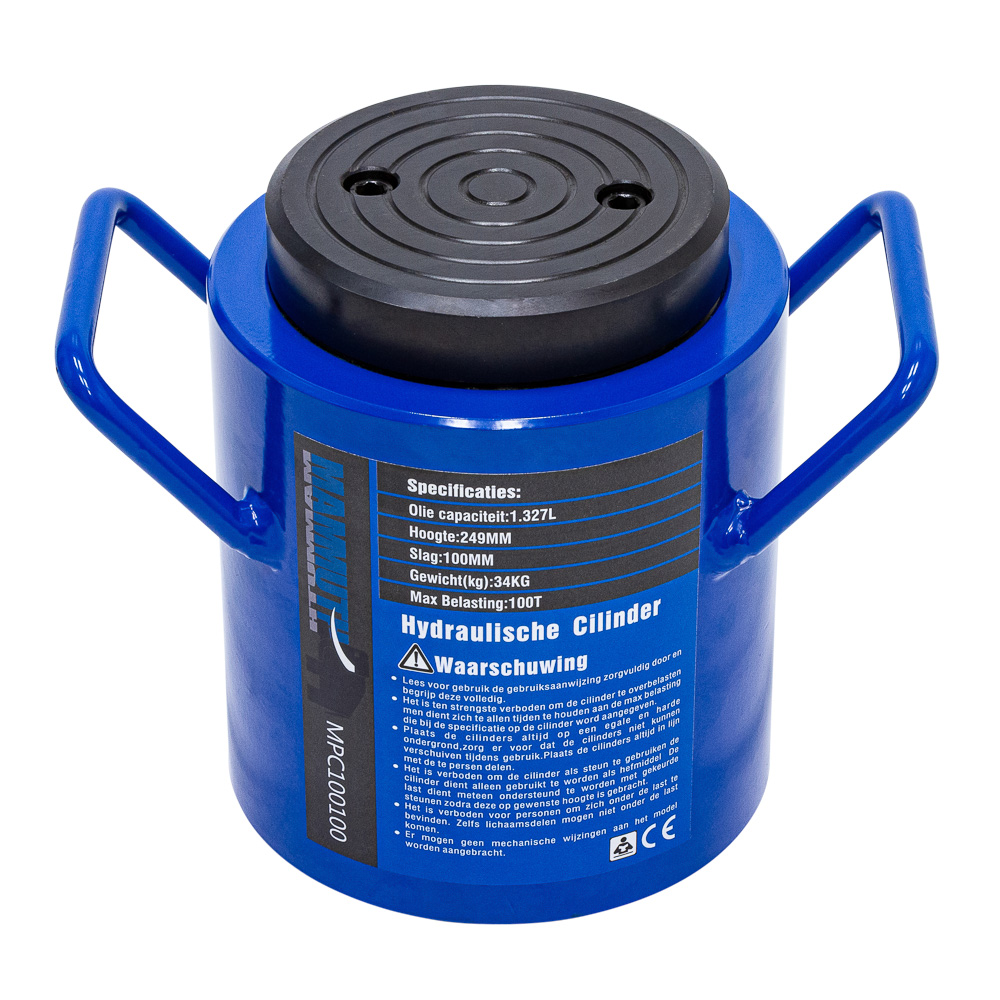

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 100 ton
stroke = 100mm
effective area = 132,7cm^2
oil capacity = 1,327 L
height of product = 212mm
extended height = 349mm
outside diameter = 175mm
bore diameter = 130mm
plunger diameter = 110mm
thread for input oil port (ZG) = 3/8" - 22,5
saddle protrusion form plgr = 27mm
saddle is removable
max. pressure = 700bar
Produkt Abmessungen:
| Length | 235 mm |
|---|---|
| Width | 165 mm |
| Height | 215 mm |
| Weight | 33,9 kg |
Abmessungen der Verpackung:
| Length | 300 mm |
|---|---|
| Width | 200 mm |
| Height | 310 mm |
| Weight | 35,00 kg |
