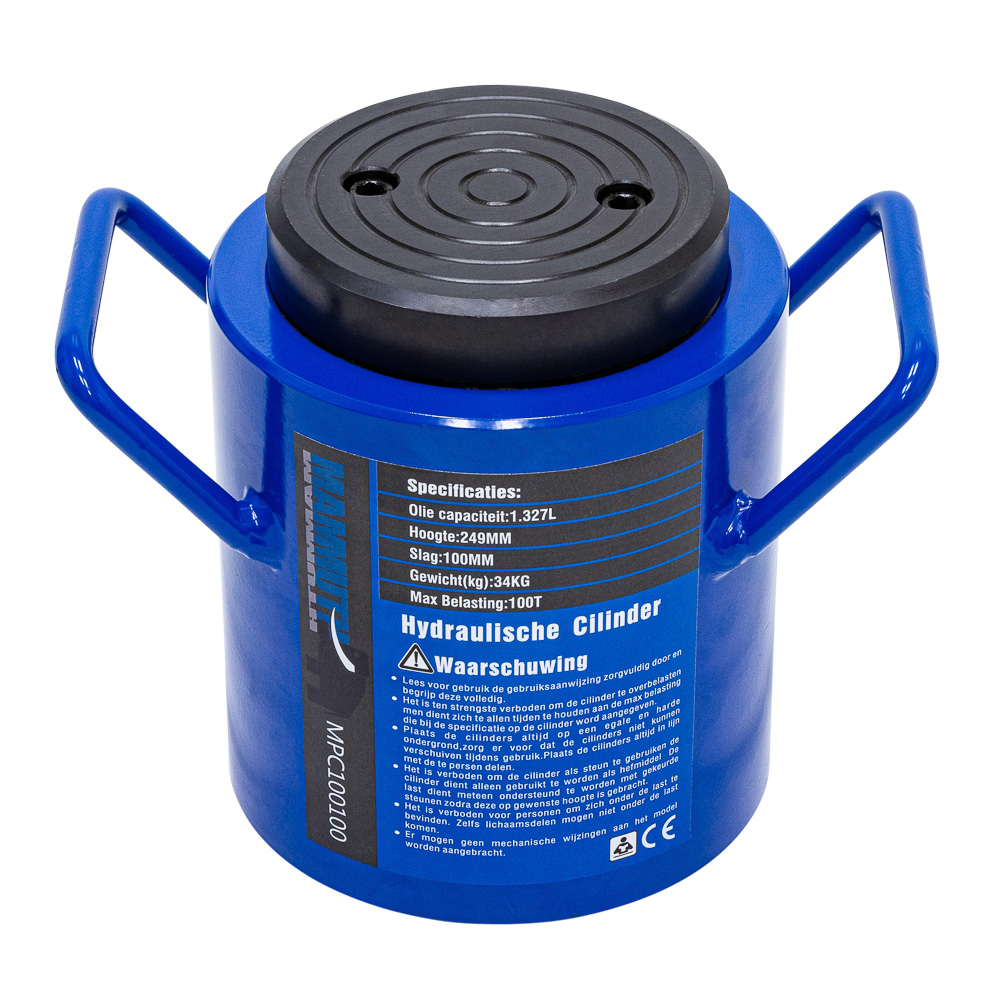

Cylinder 100 ton stroke 100mm

Brand: Mammuth

Product Code: MPC100100

EAN: 8720028077014

Availability: Available

https://www.valkenpower.com/web/image/product.template/52608/image_1920?unique=0b719b5

€ 423.50 Incl. VAT 423.5 EUR € 423.50

€ 350.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Hydraulic cylinder

    Hardy underlay to avoid axis break when it is overloading.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.
    Surface coating resists corrosion.

    • output = 100 ton

    • stroke = 100mm

    • effective area = 132,7cm^2

    • oil capacity = 1,327 L

    • height of product = 212mm

    • extended height = 349mm

    • outside diameter = 175mm

    • bore diameter = 130mm

    • plunger diameter = 110mm

    • thread for input oil port (ZG) = 3/8" - 22,5

    • saddle protrusion form plgr = 27mm

    • saddle is removable

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 235 mm
    Product Width 165 mm
    Product Height 215 mm
    Product Weight 33.9 Kg
    Package Dimensions:
    Package Length 300 mm
    Package Width 200 mm
    Package Height 310 mm
    Package Weight 35.00 Kg
