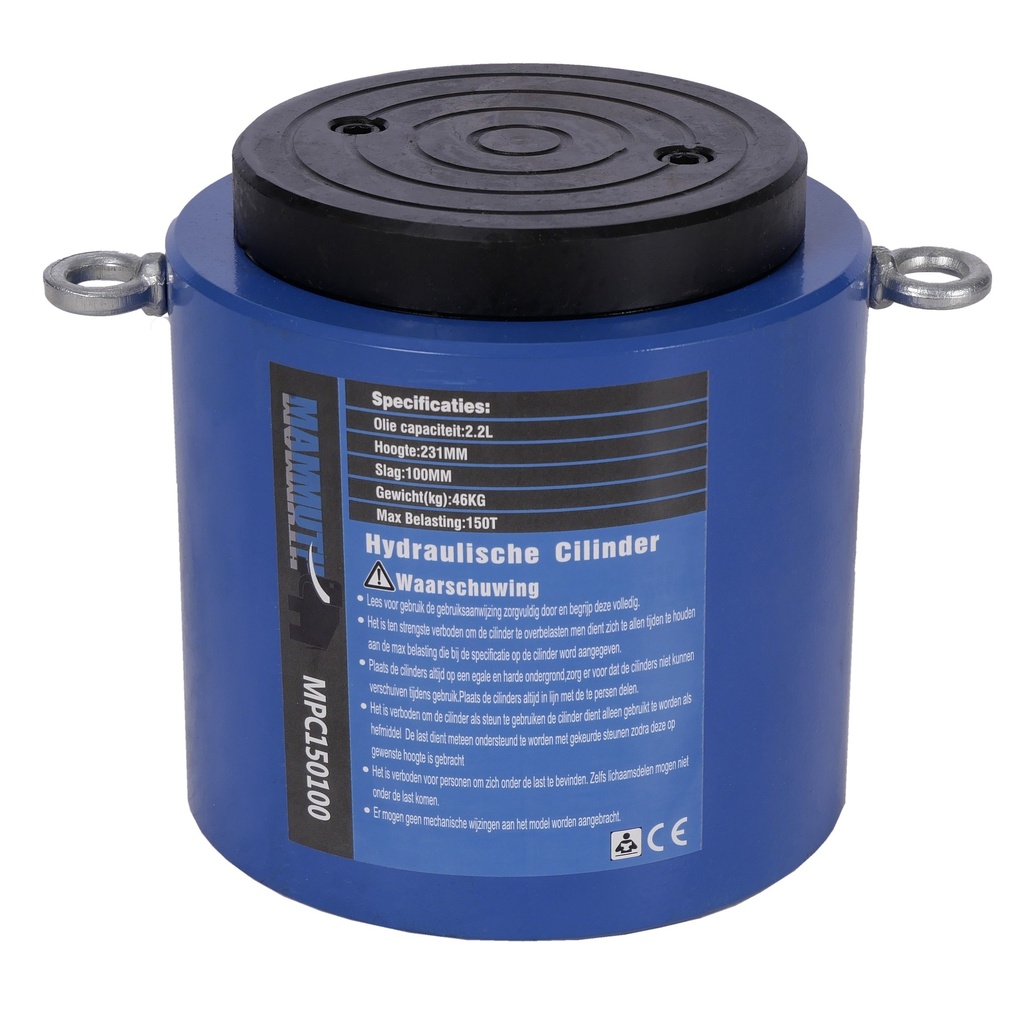

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 150 ton
stroke = 100mm
effective area = 201cm^2
oil capacity = 2,010 L
height of product = 216mm
extended height = 331mm
outside diameter = 207mm
bore diameter = 160mm
plunger diameter = 140mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 31mm
saddle is removable
max. pressure = 700bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 275 mm |
| Largeur du produit | 205 mm |
| Hauteur du produit | 215 mm |
| Poids du produit | 45,6 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 285 mm |
| Largeur du paquet | 215 mm |
| Hauteur du paquet | 225 mm |
| Poids du Colis | 47,00 Kg |
