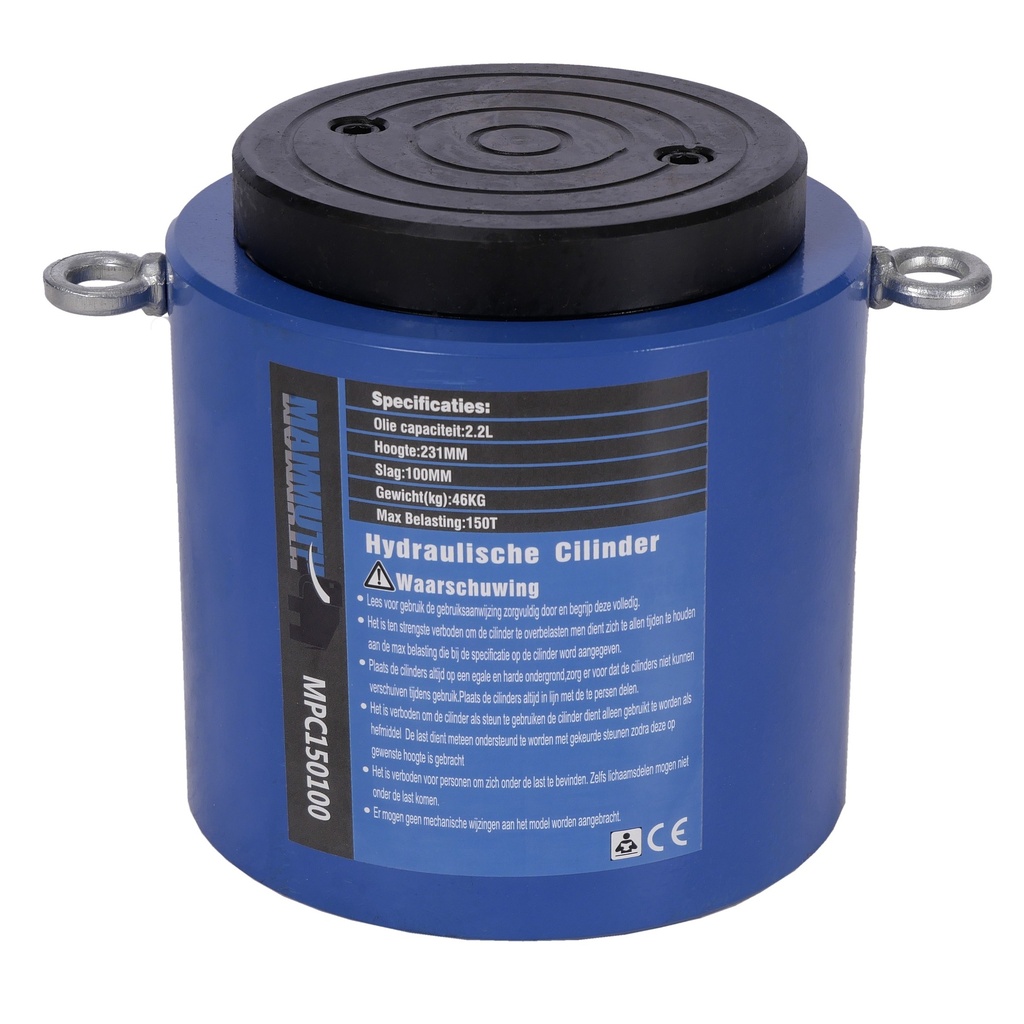

Cylinder 150 ton stroke 100mm

Brand: Mammuth

Product Code: MPC150100

EAN: 8720028076987

Availability: Sold Out

https://www.valkenpower.com/web/image/product.template/52679/image_1920?unique=95f32fa

€ 605.00 Incl. VAT 605.0 EUR € 605.00

€ 500.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Hydraulic cylinder
    Hardy underlay to avoid axis break when it is overloading.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.
    Surface coating resists corrosion.

    • output = 150 ton

    • stroke = 100mm

    • effective area = 201cm^2

    • oil capacity = 2,010 L

    • height of product = 216mm

    • extended height = 331mm

    • outside diameter = 207mm

    • bore diameter = 160mm

    • plunger diameter = 140mm

    • thread for input oil port (ZG) = 3/8" - 20

    • saddle protrusion form plgr = 31mm

    • saddle is removable

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 275 mm
    Product Width 205 mm
    Product Height 215 mm
    Product Weight 45.6 Kg
    Package Dimensions:
    Package Length 285 mm
    Package Width 215 mm
    Package Height 225 mm
    Package Weight 47.00 Kg
