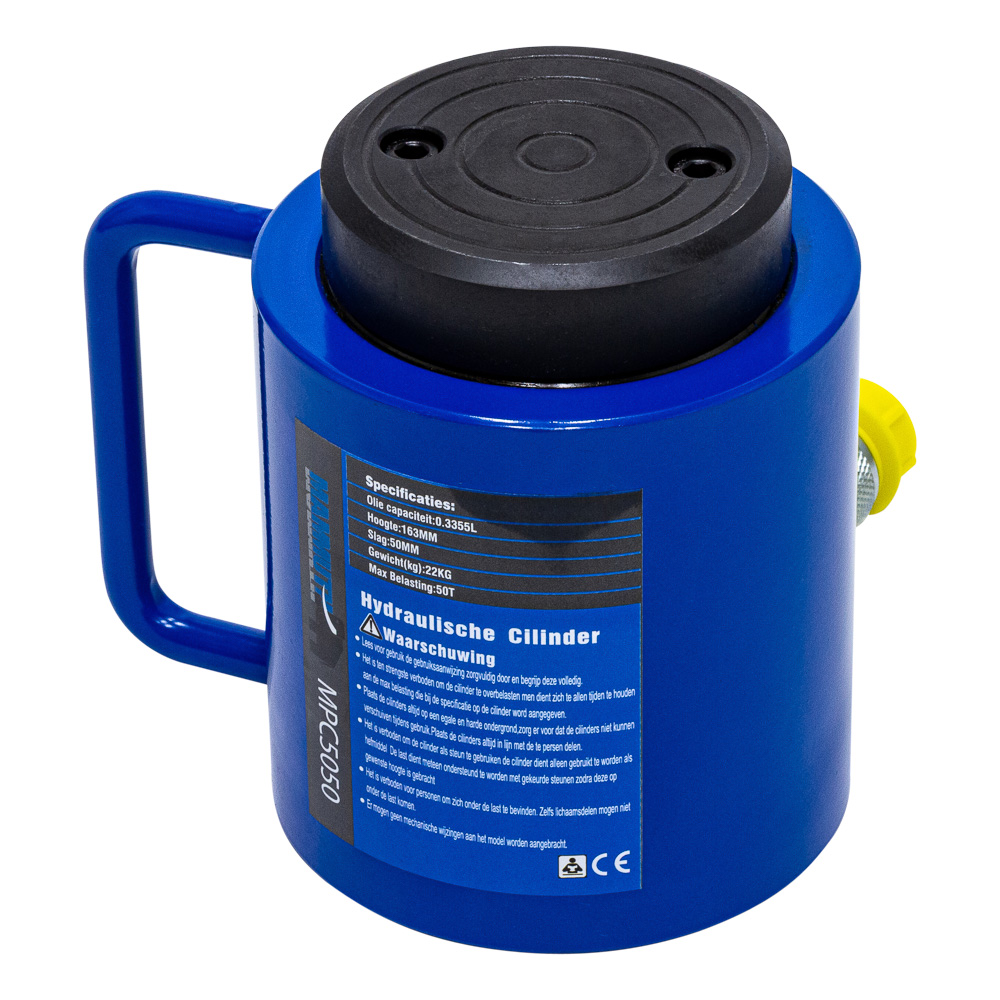

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 50 ton
stroke = 50mm
effective area = 70,9cm^2
oil capacity = 0,355 L
height of product = 162mm
extended height = 213mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
saddle is removable
max. pressure = 700bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 190 mm |
| Largeur du produit | 120 mm |
| Hauteur du produit | 165 mm |
| Poids du produit | 13,7 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 280 mm |
| Largeur du paquet | 235 mm |
| Hauteur du paquet | 215 mm |
| Poids du Colis | 15,00 Kg |
