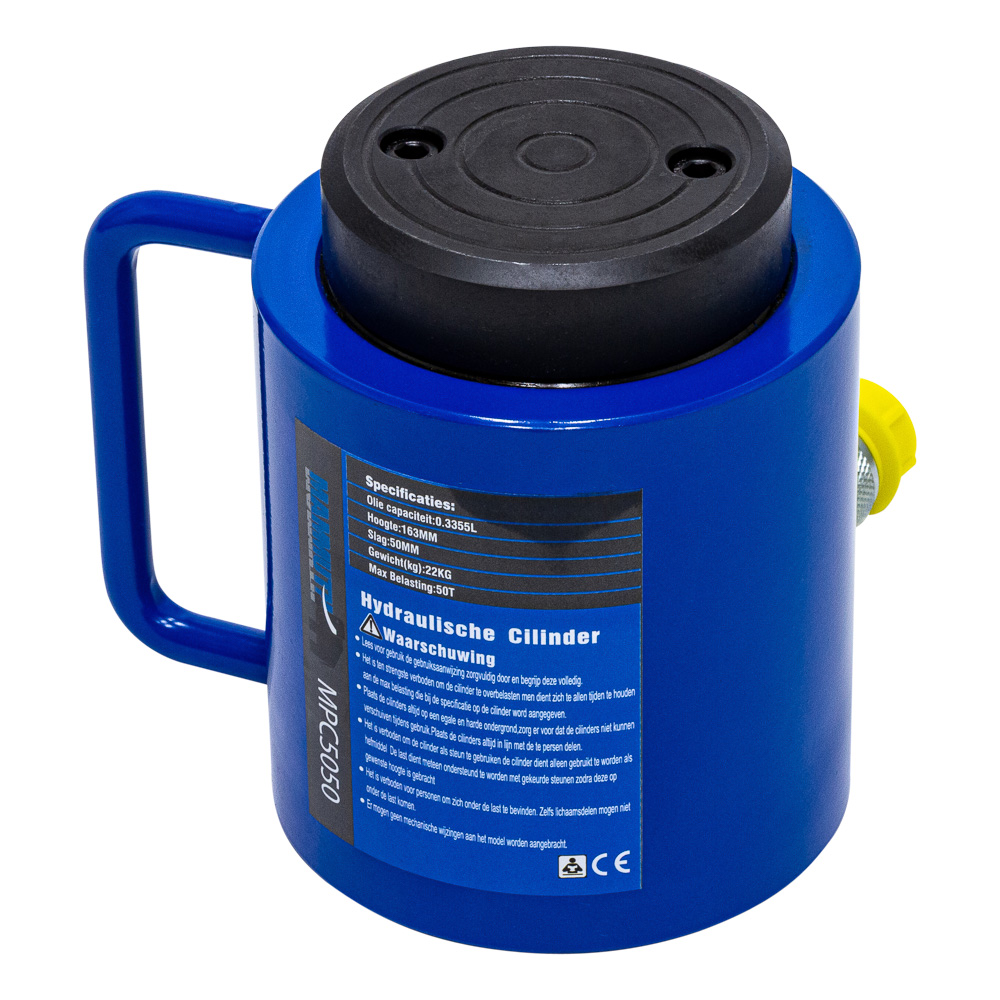

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 50 ton
stroke = 50mm
effective area = 70,9cm^2
oil capacity = 0,355 L
height of product = 162mm
extended height = 213mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
saddle is removable
max. pressure = 700bar
| Product Dimensions: | |
|---|---|
| Product Length | 190 mm |
| Product Width | 120 mm |
| Product Height | 165 mm |
| Product Weight | 13.7 Kg |
| Package Dimensions: | |
| Package Length | 280 mm |
| Package Width | 235 mm |
| Package Height | 215 mm |
| Package Weight | 15.00 Kg |
