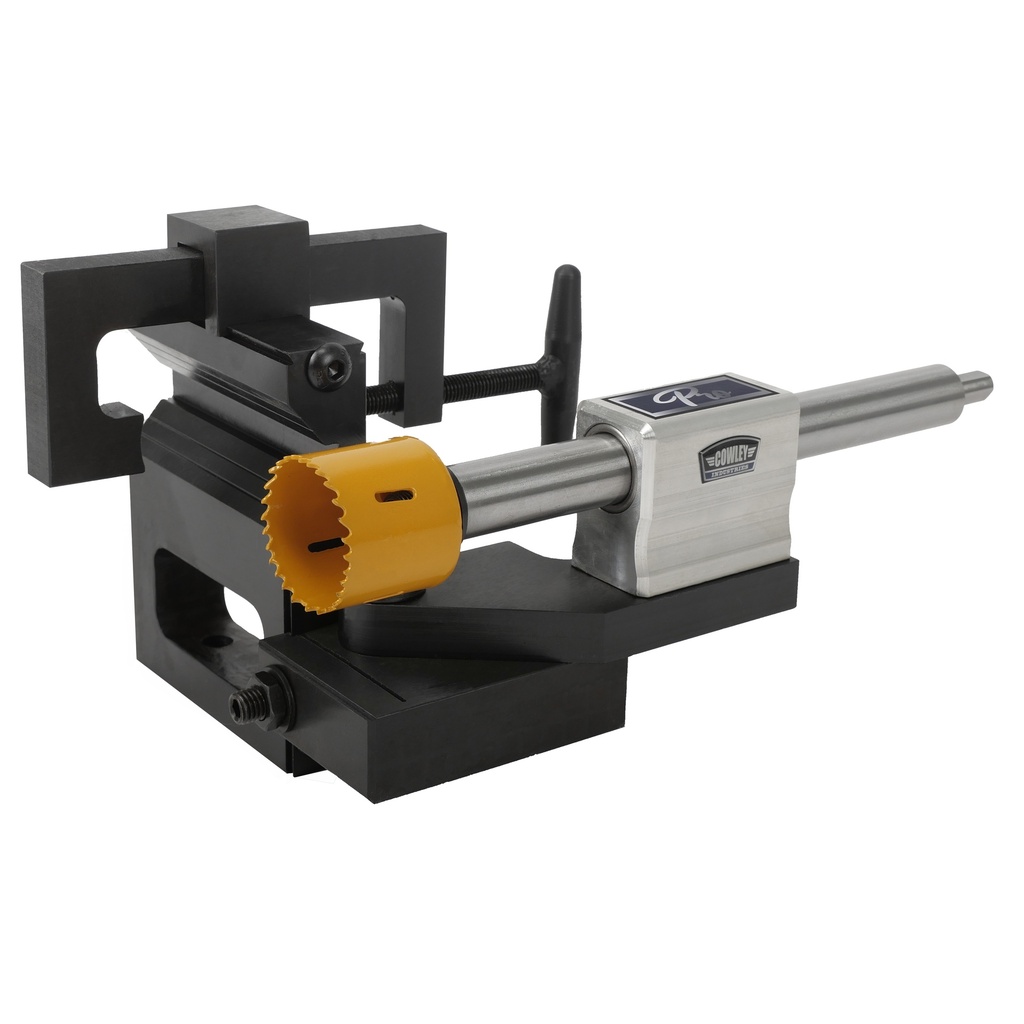

Pipe notcher pro
This professional precision pipe notcher is very suitable for making holes in pipes and tubes at different angles before they are welded.
Easy to mount on a work table and in particular to mount on drill presses.
This professional model features a robust steel frame, 2-axis adjustable pipe clamp, a polished steel drill shaft and double neelde bearings.
The base is height adjustable and rotatable, which makes the notcher very user-friendly in different angles.
Comes with a locking pin for the drill shaft.
The screw thread for the hole saw is M12 x 1,25. With an adaptor this is M16 x 1,50.
pipe/tube capacity = 3/4" - 3" (19 - 76mm)
spindle = 3/4" (19mm)
angle adjustment = 0 - 50 degrees
chromed steel
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 395 mm |
| Largeur du produit | 200 mm |
| Hauteur du produit | 195 mm |
| Poids du produit | 9,5 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 310 mm |
| Largeur du paquet | 160 mm |
| Hauteur du paquet | 14 mm |
| Poids du Colis | 10,00 Kg |
| Package Type: | |
| 1 Pcs |
