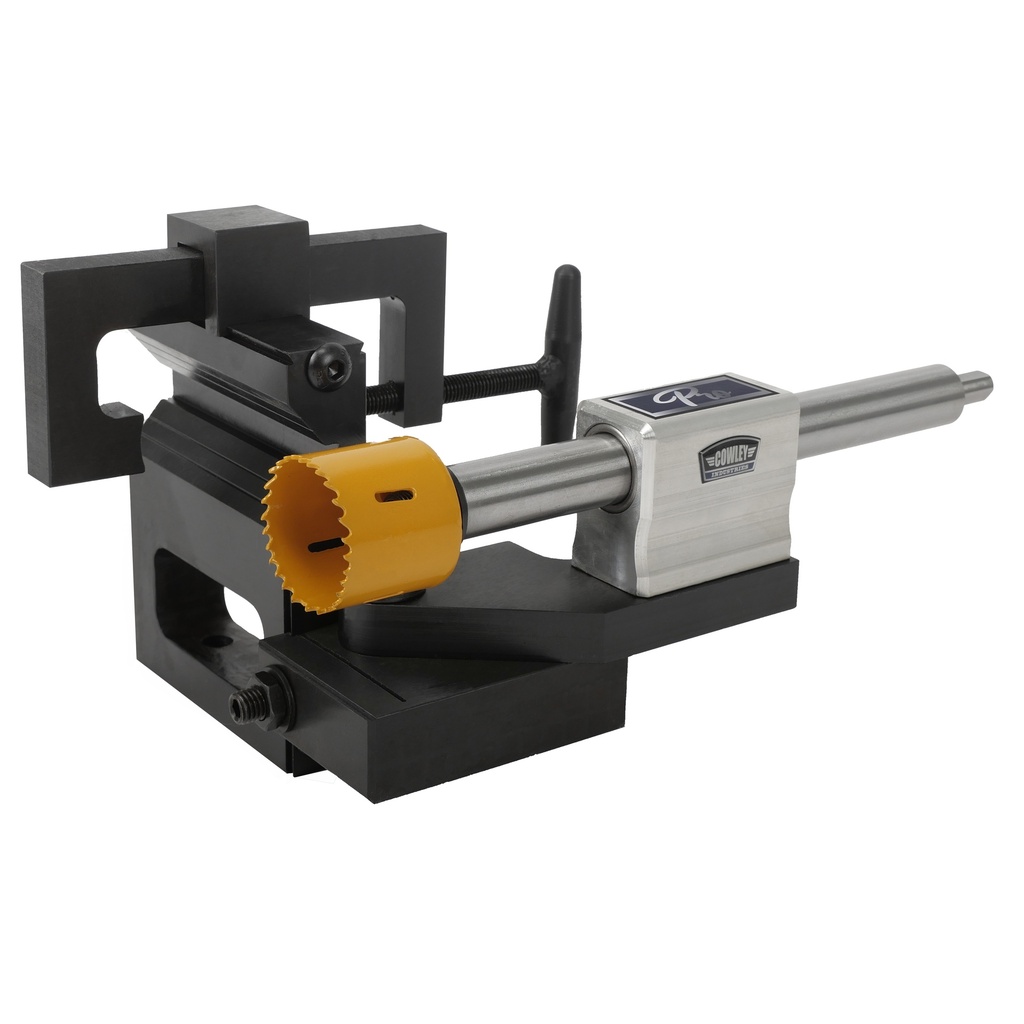

Pipe notcher pro
This professional precision pipe notcher is very suitable for making holes in pipes and tubes at different angles before they are welded.
Easy to mount on a work table and in particular to mount on drill presses.
This professional model features a robust steel frame, 2-axis adjustable pipe clamp, a polished steel drill shaft and double neelde bearings.
The base is height adjustable and rotatable, which makes the notcher very user-friendly in different angles.
Comes with a locking pin for the drill shaft.
The screw thread for the hole saw is M12 x 1,25. With an adaptor this is M16 x 1,50.
pipe/tube capacity = 3/4" - 3" (19 - 76mm)
spindle = 3/4" (19mm)
angle adjustment = 0 - 50 degrees
|Product Length||395 mm|
|Product Width||200 mm|
|Product Height||195 mm|
|Product Weight||9.5 Kg|
|Package Length||310 mm|
|Package Width||160 mm|
|Package Height||14 mm|
|Package Weight||10.00 Kg|
