Rohrausklinker Pro

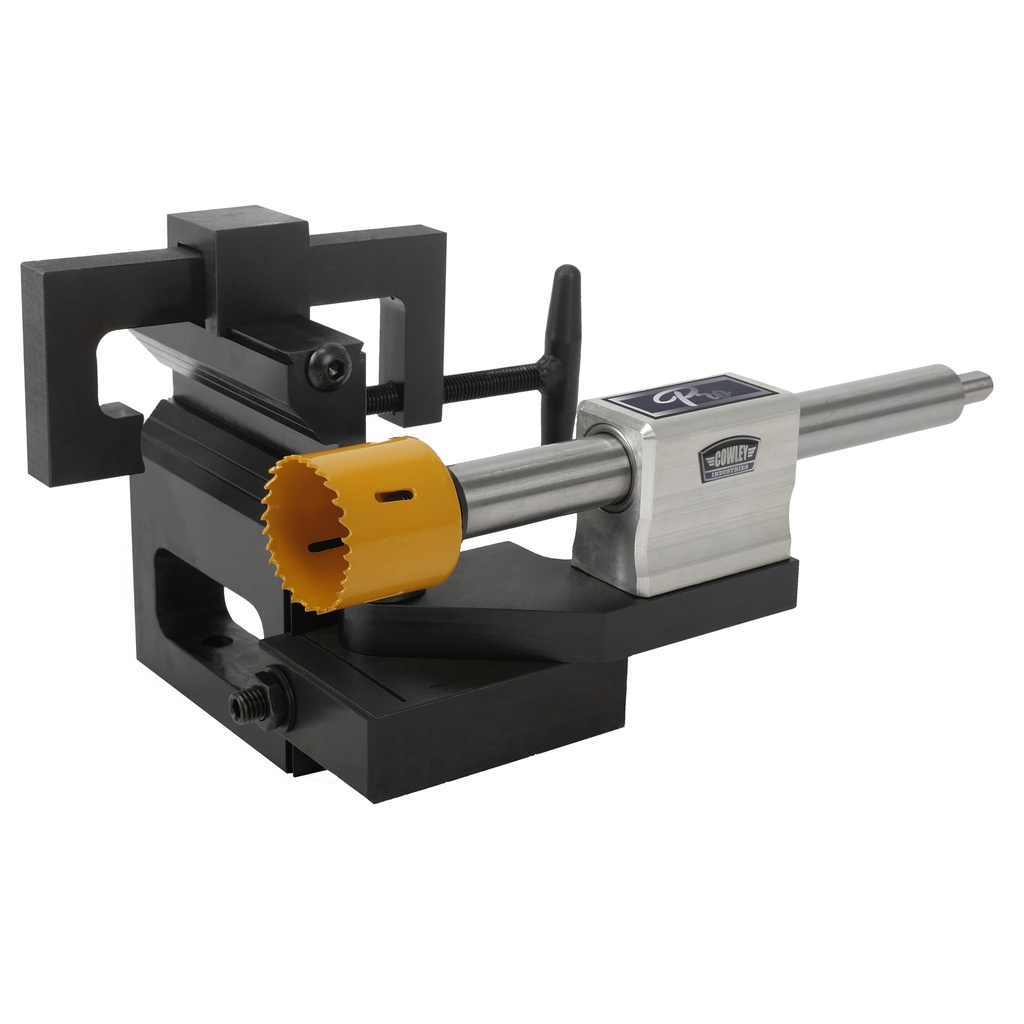

This professional precision pipe notcher is very suitable for making holes in pipes and tubes at different angles before they are welded.
Easy to mount on a work table and in particular to mount on drill presses.
This professional model features a robust steel frame, 2-axis adjustable pipe clamp, a polished steel drill shaft and double neelde bearings.
The base is height adjustable and rotatable, which makes the notcher very user-friendly in different angles.
Comes with a locking pin for the drill shaft.
The screw thread for the hole saw is M12 x 1,25. With an adaptor this is M16 x 1,50.
- pipe/tube capacity = 3/4" - 3" (19 - 76mm)
- spindle = 3/4" (19mm)
- angle adjustment = 0 - 50 degrees
- chromed steel
Produkt Abmessungen:
| Length | 395 mm |
|---|---|
| Width | 200 mm |
| Height | 195 mm |
| Weight | 9,5 kg |
Abmessungen der Verpackung:
| Length | 310 mm |
|---|---|
| Width | 160 mm |
| Height | 14 mm |
| Weight | 10,00 kg |
