Rack and pinion press

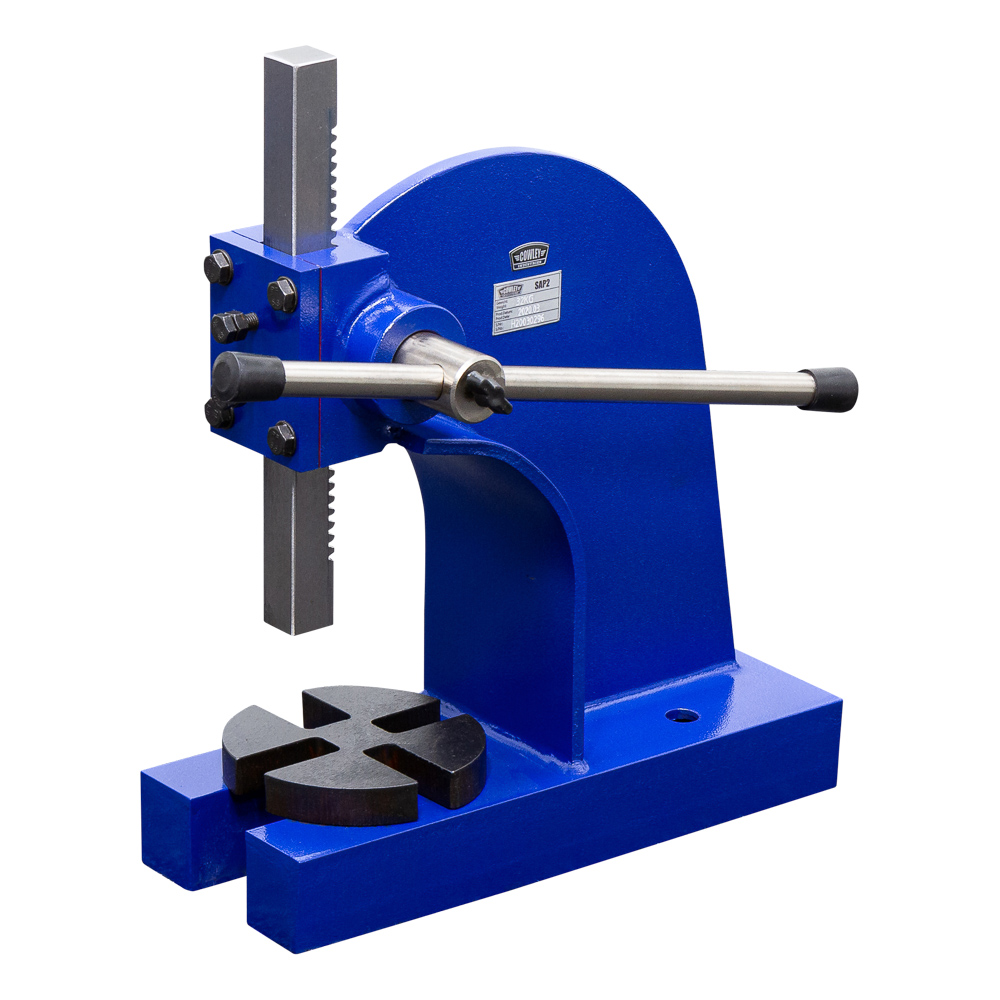

This Cowley manual arbor press is suitable for pressing bearings and bushings and for bending, punching and forming workpieces. The base plate can be used in 4 different positions.
capacity = 2 ton
max. height workpiece = 180mm
throat depth = 123mm
dimensions square ram = 32 x 32mm
foot size = 432 x 260mm
Dimensions du produit :
| Length | 415 mm |
|---|---|
| Width | 220 mm |
| Height | 430 mm |
| Weight | 32,05 kg |
Dimensions de l'emballage :
| Length | 460 mm |
|---|---|
| Width | 190 mm |
| Height | 480 mm |
| Weight | 35,00 kg |
