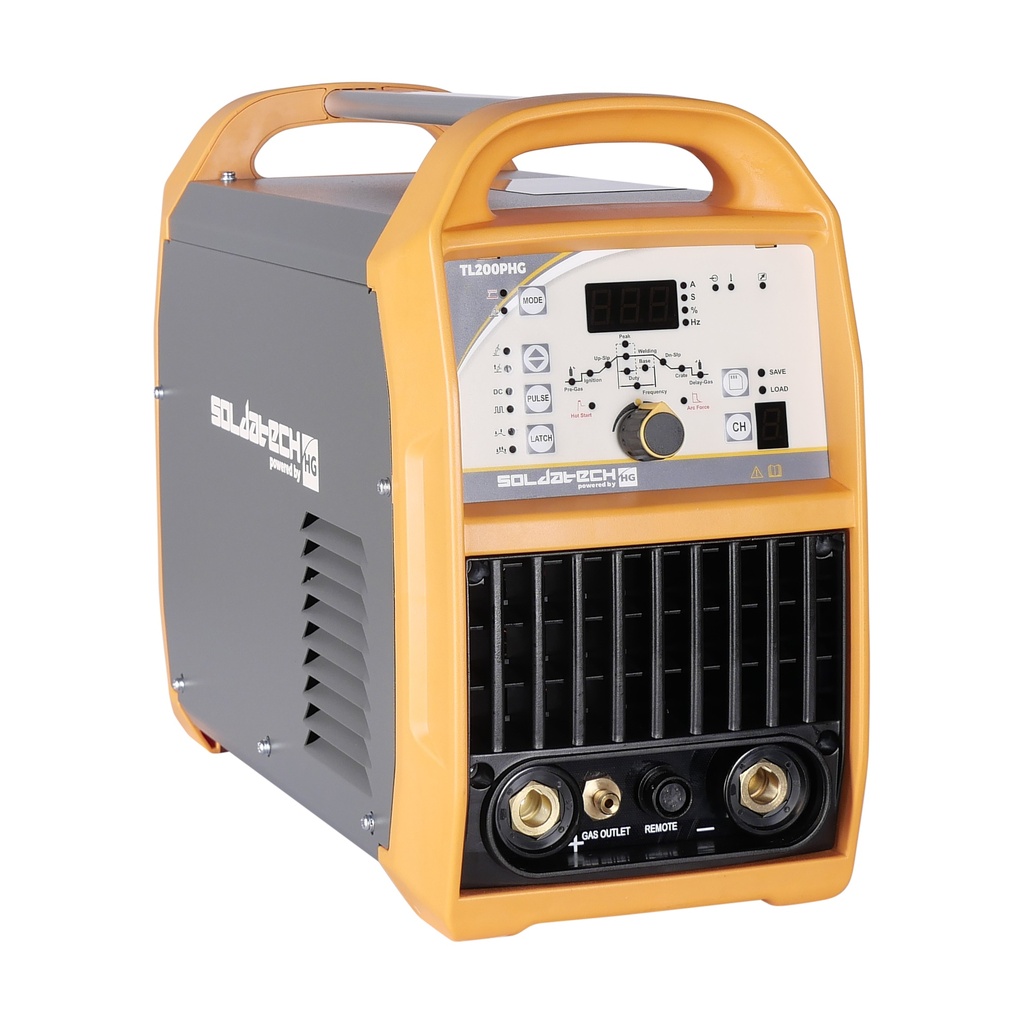

TIG welding machine 200A torch-control

TIG welding inverter 200A / IGBT TIG DC inverter / welding machine / welding machine

This portable Soldatech powered by HG TIG welding machine is a handy and easy-to-handle device that processes a huge range of materials with different welding processes including Pulse, TIG and MMA welding. With the adjustment and selection buttons it is easy to set all parameters of the TL200PHG in the right way, so that every welding job is completed with high-quality results.

The modern IGBT inverter technology ensures that the TL200PHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time. The digital infinitely adjustable display clearly shows the welding processes and possibilities. Thanks to the HF ignition, the device starts up without any problems at all times.

The supplied TLT26M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding. The hot-start/anti-stick function quickly increases the welding current, so that the electrode does not stick to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and copper.

Every TL200PHG is supplied as standard including:

Soldatech TLT26M4 remote flex TIG torch with 4m cable
Welding ground clamp with 3m 16mm² cable
European dinse couplers 13mm
3m gas line including quick coupling
3-pin 32A plug with 1m 3x4mm² cable

Technical specifications:

voltage = 230V - 1 phase
frequency = 50/60Hz
circuit breaker = 16A B-char
input power = 8.7kVA
no load voltage = 82V
duty cycle (at 20°C ambient temperature) = 40% - 200A
duty cycle (at 40°C ambient temperature) = 30% - 200A
welding current range = MMA 20 - 180A / DC TIG 10 - 200A
protection class = IP21S
dimensions = 460 x 200 x 340mm
weight = 9.5kg

Dimensions du produit :
Longueur du produit	460 mm
Largeur du produit	200 mm
Hauteur du produit	340 mm
Poids du produit	9,5 Kg
Dimensions de l'emballage :
Longueur du paquet	530 mm
Largeur du paquet	310 mm
Hauteur du paquet	430 mm
Poids du Colis	14,40 Kg

Datasheet_TL200PHG.pdf

Fréquence	50/60 Hz
Tension	230V - 1 Phase
Puissance d'entrée	8.7kVA
No load Voltage	82V
Circuit breaker	16A B-char
Duty cycle @20C	40% - 200A
Duty cycle @40C	30% - 200A
Welding current range	MMA 20 - 180A / DC TIG 10 - 200A
Protection class	IP21S
