TIG welding machine 200A torch-control

Welding and cutting equipment / TIG welding machines Brand: Soldatech Soldatech

Product Code: TL200PHG

EAN: 8720028096947

Availability: Available

€ 598.95 Incl. VAT https://schema.org/InStock 598.95 EUR € 598.95

€ 495.00

  • Frequency
  • Voltage
  • Input power
  • Circuit breaker
  • No load Voltage
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Protection class

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

TIG welding inverter 200A / IGBT TIG DC inverter / welding machine / welding machine

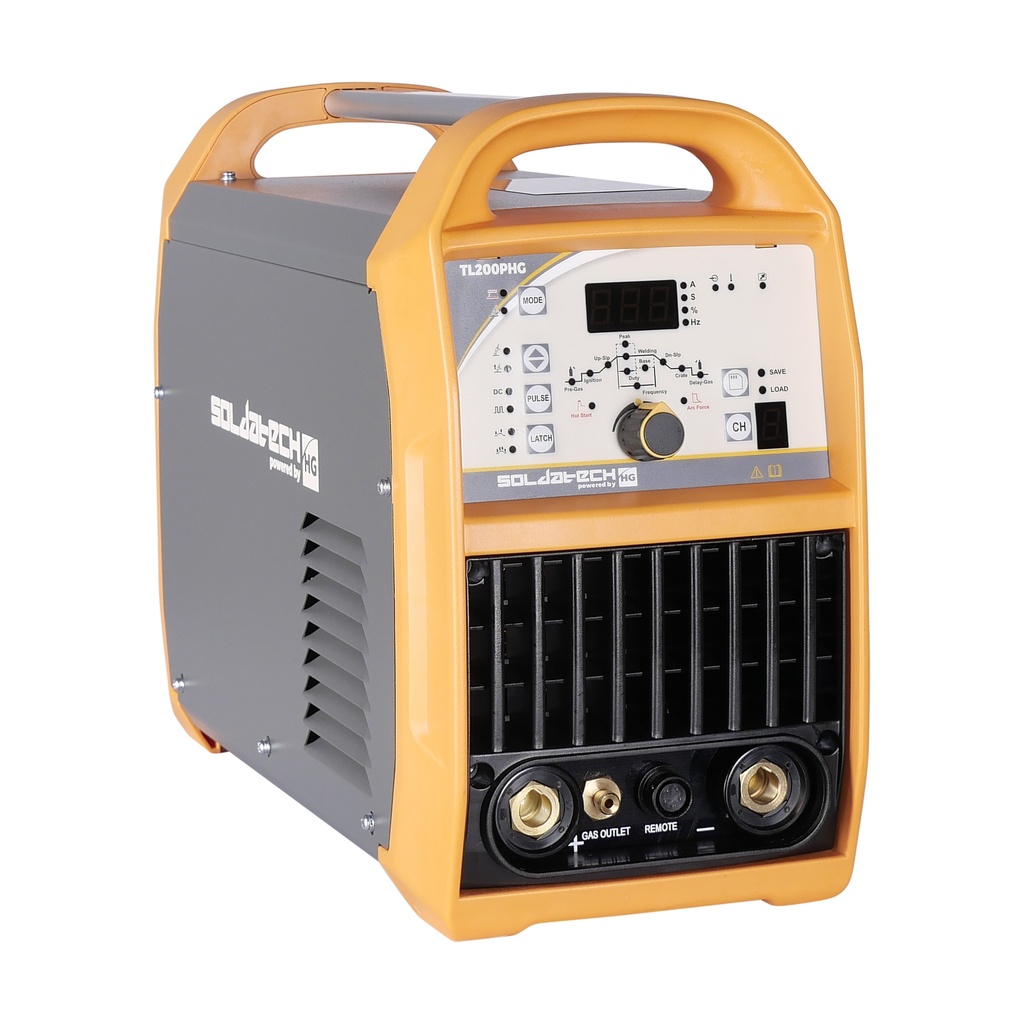

This portable Soldatech powered by HG TIG welding machine is a handy and easy-to-handle device that processes a huge range of materials with different welding processes including Pulse, TIG and MMA welding. With the adjustment and selection buttons it is easy to set all parameters of the TL200PHG in the right way, so that every welding job is completed with high-quality results.

The modern IGBT inverter technology ensures that the TL200PHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time. The digital infinitely adjustable display clearly shows the welding processes and possibilities. Thanks to the HF ignition, the device starts up without any problems at all times.

The supplied TLT26M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding. The hot-start/anti-stick function quickly increases the welding current, so that the electrode does not stick to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and copper.

Every TL200PHG is supplied as standard including:

  • Soldatech TLT26M4 remote flex TIG torch with 4m cable

  • Welding ground clamp with 3m 16mm² cable

  • European dinse couplers 13mm

  • 3m gas line including quick coupling

  • 3-pin 32A plug with 1m 3x4mm² cable

Technical specifications:

  • voltage = 230V - 1 phase

  • frequency = 50/60Hz

  • circuit breaker = 16A B-char

  • input power = 8.7kVA

  • no load voltage = 82V

  • duty cycle (at 20°C ambient temperature) = 40% - 200A
  • duty cycle (at 40°C ambient temperature) = 30% - 200A
  • welding current range =  MMA 20 - 180A / DC TIG 10 - 200A
  • protection class = IP21S

  • dimensions = 460 x 200 x 340mm

  • weight = 9.5kg

Product Dimensions:
Product Length 460 mm
Product Width 200 mm
Product Height 340 mm
Product Weight 9.5 Kg
Package Dimensions:
Package Length 530 mm
Package Width 310 mm
Package Height 430 mm
Package Weight 14.40 Kg

  • Flexible Torch with Torch Control

  • Pulse function

  • Infinitely adjustable

  • ABS shockproof housing

  • 5 years warranty


Frequency 50/60 Hz
Voltage 230V - 1 Phase
Input power 8.7kVA
Circuit breaker 16A B-char
No load Voltage 82V
Duty cycle @20C 40% - 200A
Duty cycle @40C 30% - 200A
Welding current range MMA 20 - 180A / DC TIG 10 - 200A
Protection class IP21S
