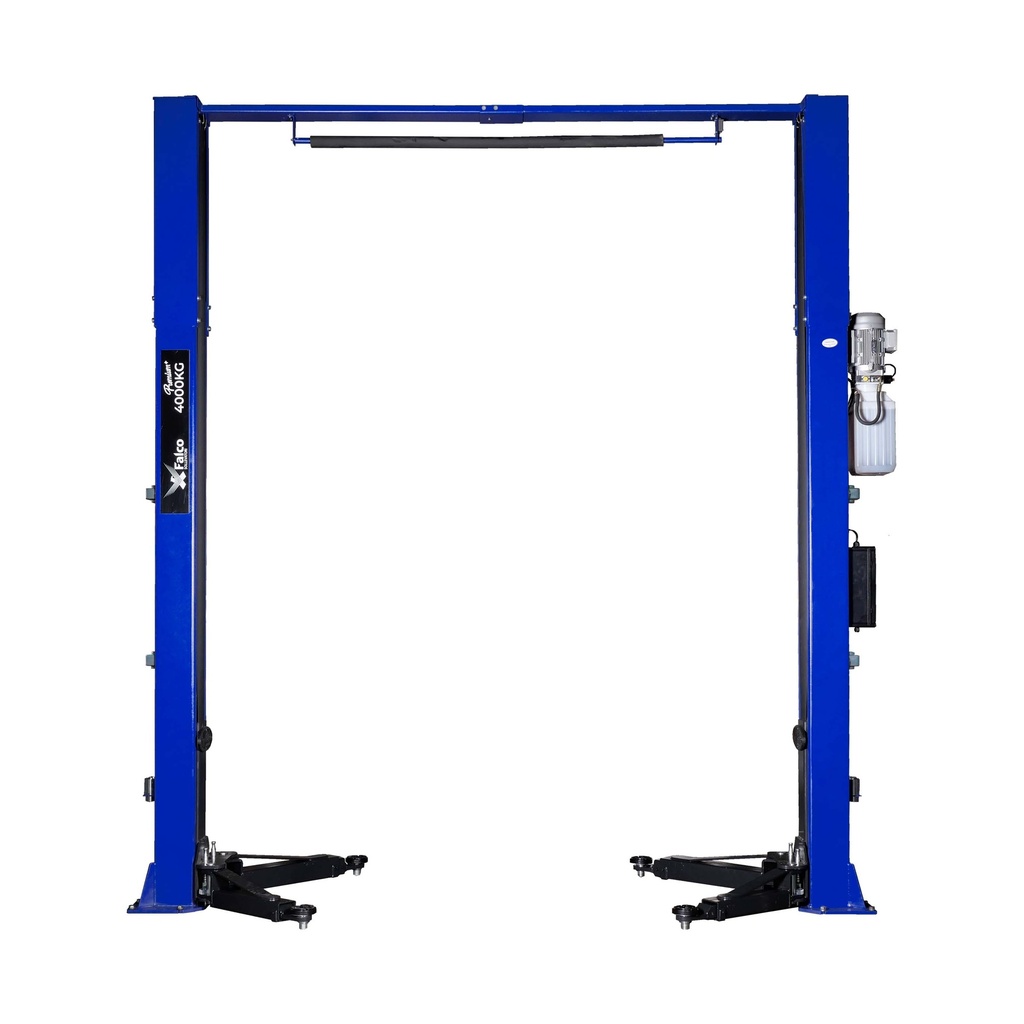

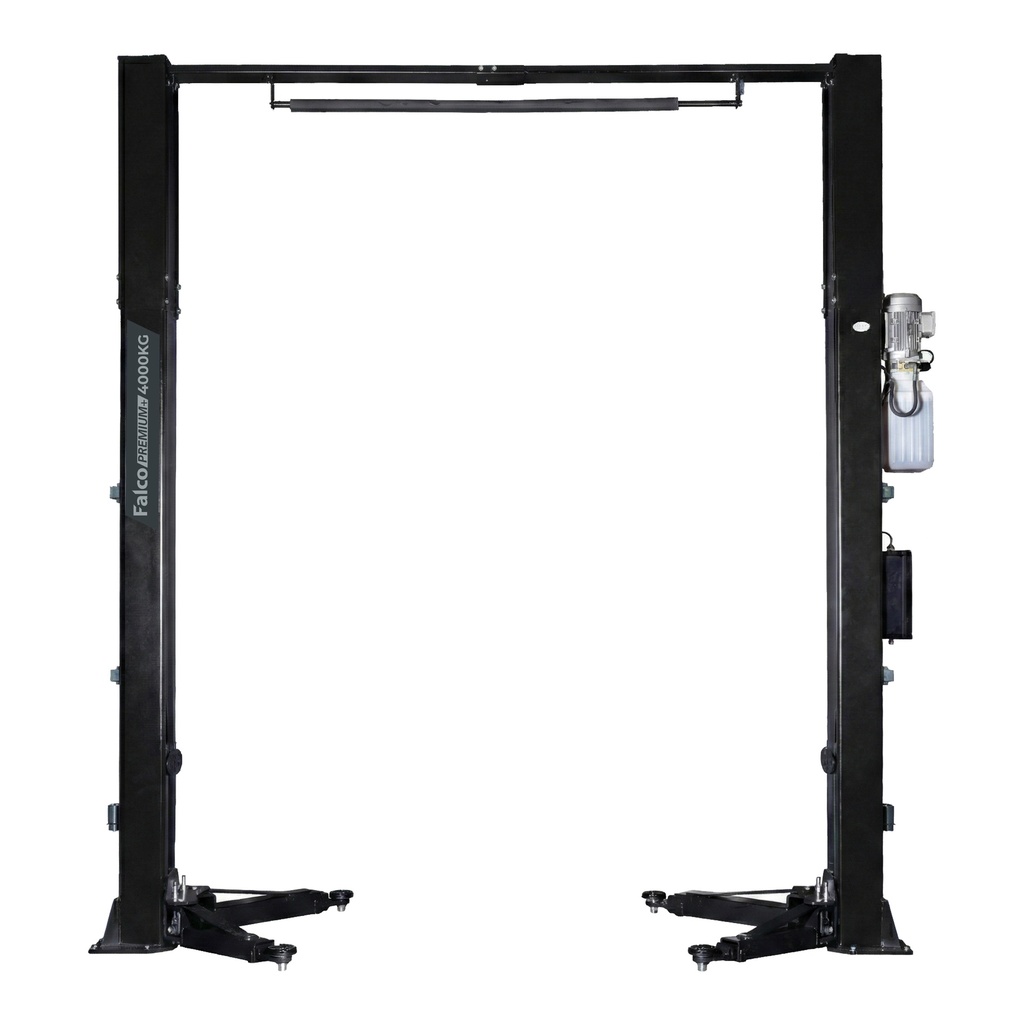

Two column lift bridge / two pile bridge / 2 column lift bridge
Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The PremiumPlus is a fully automatic and barrier-free model, which makes this bridge very complete and suitable for a large number of different vehicles. The Falco Sollevatori Premium series has proven itself over the years as a very reliable and multi-usable bridge, for almost all common cars.
Characteristics:
Floorless / barrier-free
Double and triple telescopic adjustable wishbones
Steel cable synchronization control (synchronization)
Quality hydraulic pump incl. cooling fins
24V control box
Transparent oil reservoir incl. oil level
Foot protection incl. acoustic safety signal
Exit when reaching highest position
Height adjustable carrying pads with double spindles
Standard elevated pickup buses
Automatic wishbone lock
Fully automatic electric detent
Shield inside column
chain guard
Robust columns made of rolled steel
Protective rubbers door stop
Hydraulic cylinder on both sides
Dead mans operation when lifting and lowering
Automatic overload protection
Height Limit Switch
12 heavy M18 locking bolts
All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EG.
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 3 540 mm |
| Largeur du produit | 460 mm |
| Hauteur du produit | 3 756 mm |
| Poids du produit | 680,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 2 950 mm |
| Largeur du paquet | 500 mm |
| Hauteur du paquet | 1 100 mm |
| Poids du Colis | 700,00 Kg |
