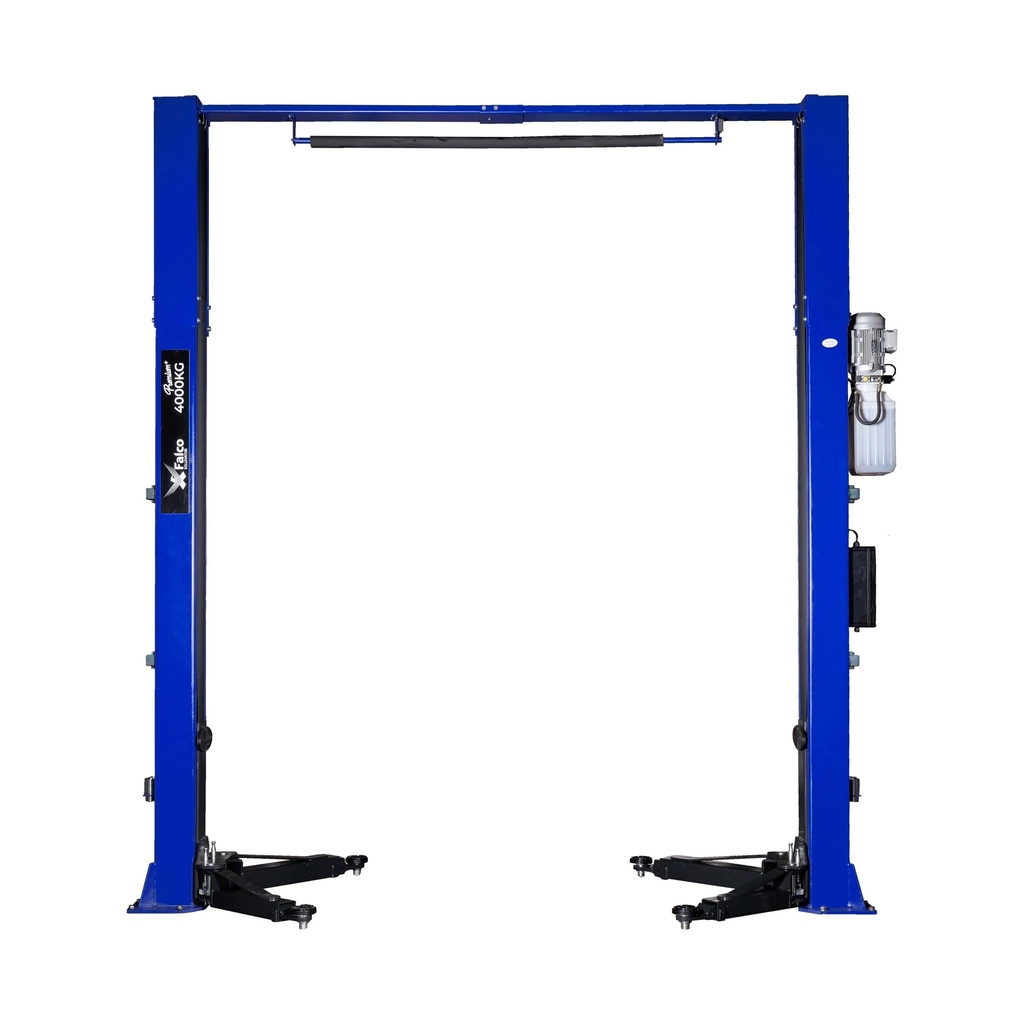

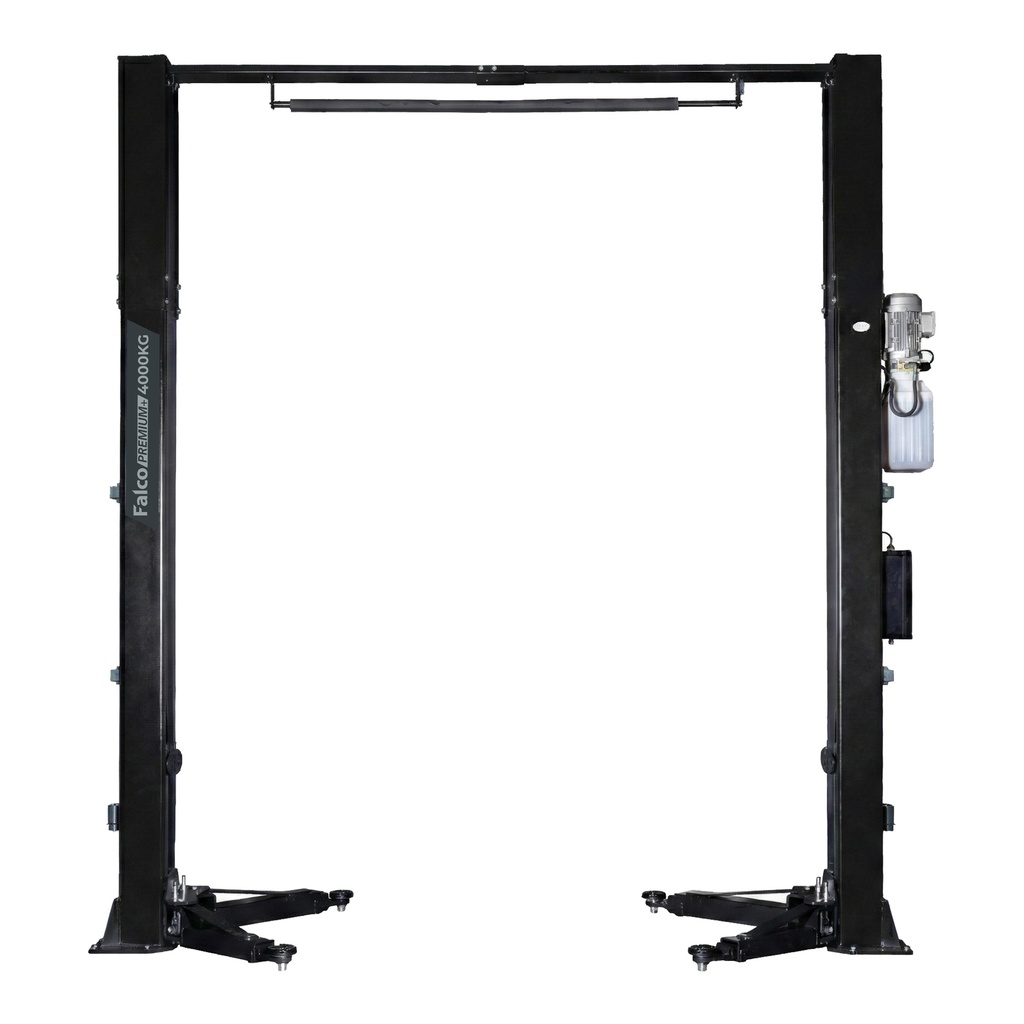

Two column lift bridge / two pile bridge / 2 column lift bridge
Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The PremiumPlus is a fully automatic and barrier-free model, which makes this bridge very complete and suitable for a large number of different vehicles. The Falco Sollevatori Premium series has proven itself over the years as a very reliable and multi-usable bridge, for almost all common cars.
Characteristics:
Floorless / barrier-free
Double and triple telescopic adjustable wishbones
Steel cable synchronization control (synchronization)
Quality hydraulic pump incl. cooling fins
24V control box
Transparent oil reservoir incl. oil level
Foot protection incl. acoustic safety signal
Exit when reaching highest position
Height adjustable carrying pads with double spindles
Standard elevated pickup buses
Automatic wishbone lock
Fully automatic electric detent
Shield inside column
chain guard
Robust columns made of rolled steel
Protective rubbers door stop
Hydraulic cylinder on both sides
Dead mans operation when lifting and lowering
Automatic overload protection
Height Limit Switch
12 heavy M18 locking bolts
Technical specifications:
capacity = 4000kg
voltage = 400V
motor power = 2.2kW
minimum recording height = 95mm
maximum lifting height = 2050mm
short lift arms reach = 625 - 932mm
reach long lift arms = 825 - 1750mm
distance between the columns = 2785mm
height of the columns = 2806mm
total height = 3756mm
total width = 3540mm
weight = 680kg
oil capacity = 10L CH32 (not included!)
All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EG.
Product Dimensions: | |
---|---|
Product Length | 3,540 mm |
Product Width | 460 mm |
Product Height | 3,756 mm |
Product Weight | 680.0 Kg |
Package Dimensions: | |
Package Length | 2,950 mm |
Package Width | 500 mm |
Package Height | 1,100 mm |
Package Weight | 700.00 Kg |
