fully automatic double scissor lift / scissor bridge / scissor lift / scissor lift

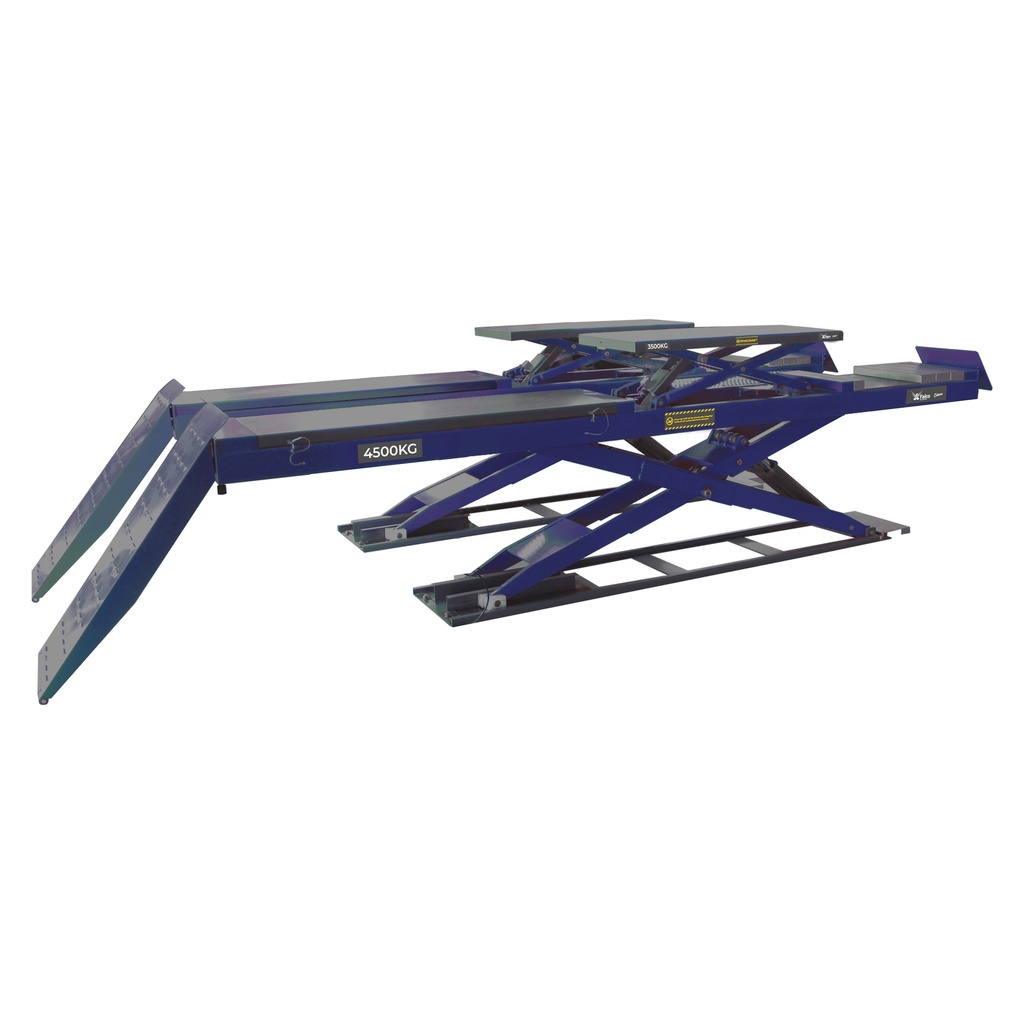

This Falco Sollevatori double scissor lift is of high quality and extremely suitable for professional use. At Falco lift bridges, quality and finish come first.
This alignment model is equipped with a bridge jack, turntables and long rear wheel plates. With the aid of the bridge jack, wheel-free lifting is possible up to a height of 450 mm above the roadways.
Due to the long carriageways of 4.8m, the bridge is suitable for small and large passenger cars, buses and heavier commercial vehicles.
Thanks to its robust construction and well thought-out design, this double scissor bridge is equipped with the following handy features as standard:
- Long lanes of 4.8 meters
- Bridge jack for wheel-free lifting with a lifting range from 65 to 450mm
- Roadways with built-in turntables and rear wheel plates
- Electric Hydraulic Double Transpump
- Equipped with four powerful hydraulic cylinders
- Automatic venting by means of vent button
- Automatic sync
- Automatic overload protection
- Ramps with anti-slip profile
- Control valve for controlling the speed when descending
- Limit sensors for limiting the maximum lift height and the minimum safety height
- Dead mans operation when lifting and lowering
- Foot protection incl. acoustic safety signal
- Dutch manual incl. maintenance protocol and CE certificate 2006/42/EG
- Complies with the NEN-EN1493 safety standard
Technical specifications:
- capacity = 4500kg
- minimum ramp height = 240mm
- maximum lifting height = 1800mm (2250mm including bridge jack)
- length of lanes = 4800mm
- lane width = 600mm
- lifting range bridge jack = 65 - 450mm
- reach bridge jack lifting arms = 1450 - 1900mm
- voltage = 400V
- motor power = 3kW
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 5 660 mm |
| Largeur du produit | 2 190 mm |
| Hauteur du produit | 2 250 mm |
| Poids du produit | 2 380,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 4 850 mm |
| Largeur du paquet | 650 mm |
| Hauteur du paquet | 1 750 mm |
| Poids du Colis | 2 400,00 Kg |
