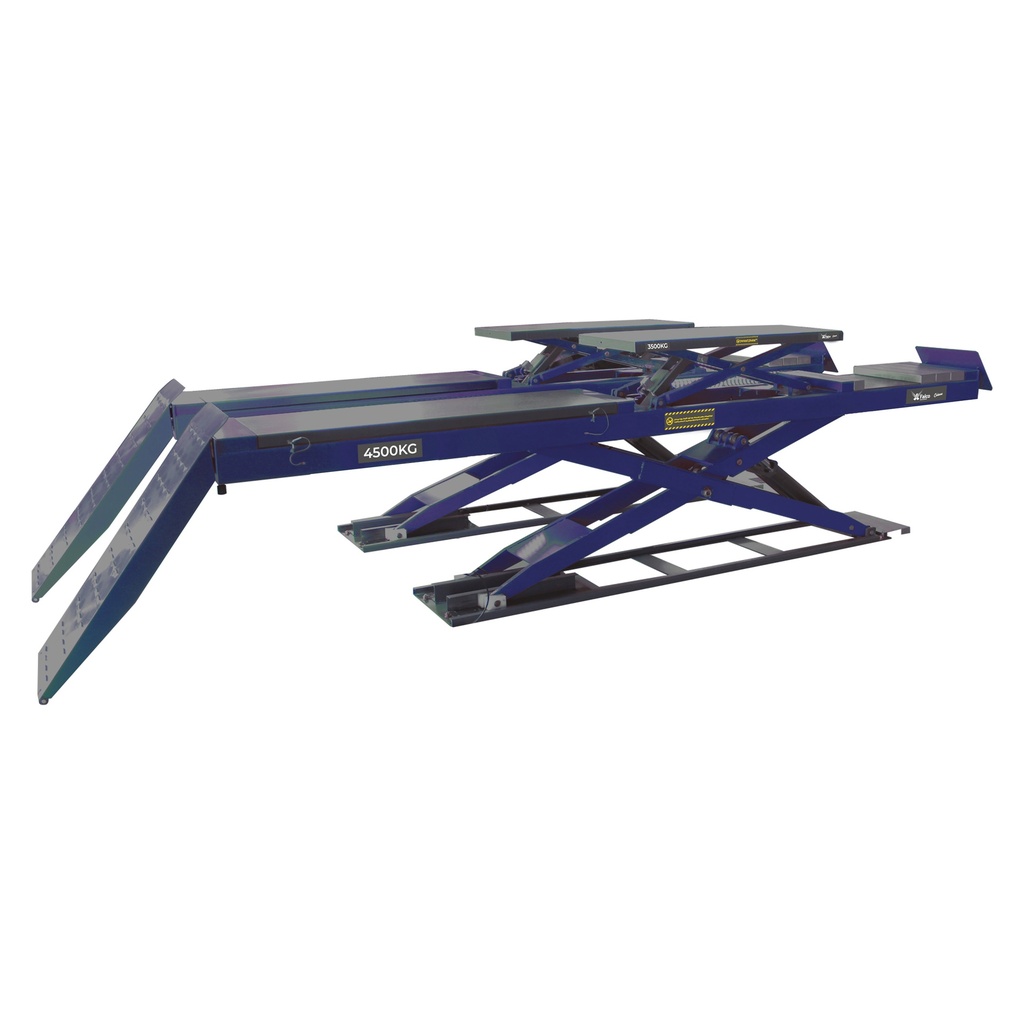

Double scissor lift alignment 4500kg 400V

[VL9245ALL] Double scissor lift alignment 4500kg 400V

Lifts / Crosslifts Brand: Falco Sollevatori Falco Sollevatori

Product Code: VL9245ALL

EAN: 8720028101412

Availability: Sold Out

Expected back in stock: 7 - 9 weeks

€ 8,500.00 8500.0 EUR € 8,500.00

€ 8,500.00

Not Available For Sale

  • Lifting capacity
  • Lifting range
  • Lifting height max. incl. pads
  • Voltage
  • Ramp height min.
  • Oil type
  • Lane length
  • Lane width
  • Sub lifting capacity
  • Motor capacity

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

fully automatic double scissor lift / scissor bridge / scissor lift / scissor lift
This Falco Sollevatori double scissor lift is of high quality and extremely suitable for professional use. At Falco lift bridges, quality and finish come first.

This alignment model is equipped with a bridge jack, turntables and long rear wheel plates. With the aid of the bridge jack, wheel-free lifting is possible up to a height of 450 mm above the roadways.

Due to the long carriageways of 4.8m, the bridge is suitable for small and large passenger cars, buses and heavier commercial vehicles.

Thanks to its robust construction and well thought-out design, this double scissor bridge is equipped with the following handy features as standard:

  • Long lanes of 4.8 meters
  • Bridge jack for wheel-free lifting with a lifting range from 65 to 450mm
  • Roadways with built-in turntables and rear wheel plates
  • Electric Hydraulic Double Transpump
  • Equipped with four powerful hydraulic cylinders
  • Automatic venting by means of vent button
  • Automatic sync
  • Automatic overload protection
  • Ramps with anti-slip profile
  • Control valve for controlling the speed when descending
  • Limit sensors for limiting the maximum lift height and the minimum safety height
  • Dead mans operation when lifting and lowering
  • Foot protection incl. acoustic safety signal
  • Dutch manual incl. maintenance protocol and CE certificate 2006/42/EG
  • Complies with the NEN-EN1493 safety standard

Technical specifications:

  • capacity = 4500kg
  • minimum ramp height = 240mm
  • maximum lifting height = 1800mm (2250mm including bridge jack)
  • length of lanes = 4800mm
  • lane width = 600mm
  • lifting range bridge jack = 65 - 450mm
  • reach bridge jack lifting arms = 1450 - 1900mm
  • voltage = 400V
  • motor power = 3kW
Product Dimensions:
Product Length 5,660 mm
Product Width 2,190 mm
Product Height 2,250 mm
Product Weight 2,380.0 Kg
Package Dimensions:
Package Length 4,850 mm
Package Width 650 mm
Package Height 1,750 mm
Package Weight 2,400.00 Kg

  • Lift capacity 4500kg
  • Accessible all around
  • Extendable platforms up to 2250mm
  • Additional scissor availability
  • Suitable for extra low cars


Lifting capacity 4500 kg
Lifting range 65 - 450 mm
Lifting height max. incl. pads 2250mm
Voltage 400V
Ramp height min. 240 mm
Oil type CH32 / CH46
Lane length 4800 mm
Lane width 600 mm
Sub lifting capacity 3500 kg
Motor capacity 3 kW
