Two pole lift / spindle lift / car lift
Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.
The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
The double and triple long arms ensure that both symmetrical and asymmetrical work can be performed and ensures a very comfortable and fast positioning of the arms in the picking points, without taking a long time to perfectly center a vehicle.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.
Furthermore, the Cascos two pole lifts have a number of very thoughtful features:
SlenderTec solid columns: Very robust, 10 to 23mm thick.
Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.
Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.
Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.
Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

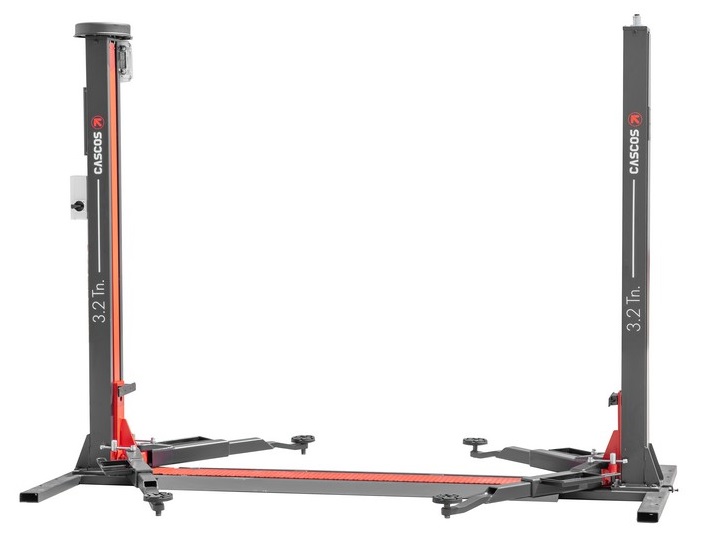

This Comfort model lift with base has a capacity of 3,2 tons and has the following features:
Single motor: 3-phase, 400V
Stable, sturdy floor plate.
Both symmetrical and asymmetrical arms: 2 arms that extend 2 times and 2 arms that extend 3 times.
Double screw spindles for extra high picking.
capacity = 3200kg
voltage = 400V / 3-fase
motor power = 3,7kW
minimum height = 100mm
maximum height = 1960mm
lifting time = 45 seconds
distance between the columns = 2700mm
height of the columns = 2435mm
range of double arms = 710 - 1050mm
range of triple arms = 597 - 1122mm
total weight = 600kg
Note: The price for this lift does not include the delivery and placement of the lift. For more information regarding installation and service contracts you can contact one of our employees.
|Product Length||3,160 mm|
|Product Width||1,400 mm|
|Product Height||2,435 mm|
|Product Weight||600.0 Kg|
|Package Length||3,200 mm|
|Package Width||1,400 mm|
|Package Height||625 mm|
|Package Weight||800.00 Kg|
