The ATS12000EC automatic transfer switch is compatible with the EC12000NE petrol generator and enables either automatic or, if desired, manual switching between mains power and the generator. This ensures continued power supply, even in the event of unexpected power failure.
As soon as the system detects a loss of mains voltage, it immediately switches to the generator. When the mains power is restored, it automatically switches back without manual intervention.
Key features:
-
Automatic and manual transfer
Werkt zowel in automatische of handmatige modus.
-
Compatibel met de EC7000NE generator
Connects directly to the existing terminals and controls.
-
Status indicators

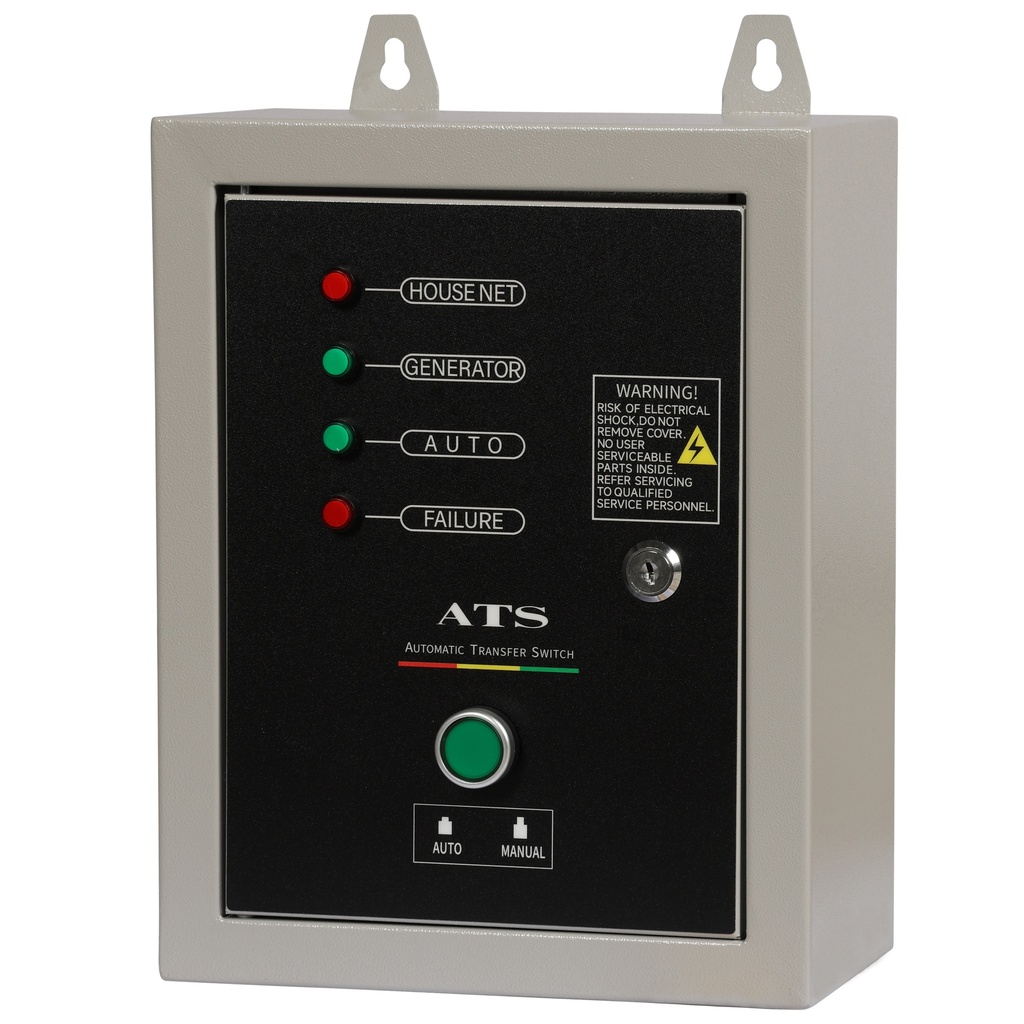

Four indicator lights show current status: mains power active, generator active, automatic mode enabled, and generator start failure.
-
Included signal cable
Includes a 4-metre signal cable.
Note:
Connection of the ATS unit must always be carried out by a certified electrician.
Specifications
| Working voltage (Ue) | 185 - 250 V |
| Rated isolation | ≥650V |
| Frequency | 50 - 65 Hz |
| Rated working current | 50 A |
| Rated limited short-circuit current | ＜16 A |
| Conversion time | 2-6 sec. |
| Mechanical endurance | 20000 cycles |
| Poles | 4 |
| Product Dimensions: | |
|---|---|
| Product Length | 320 mm |
| Product Width | 140 mm |
| Product Height | 250 mm |
| Product Weight | 5.46 Kg |
| Package Dimensions: | |
| Package Length | 400 mm |
| Package Width | 200 mm |
| Package Height | 325 mm |
| Package Weight | 6.14 Kg |
