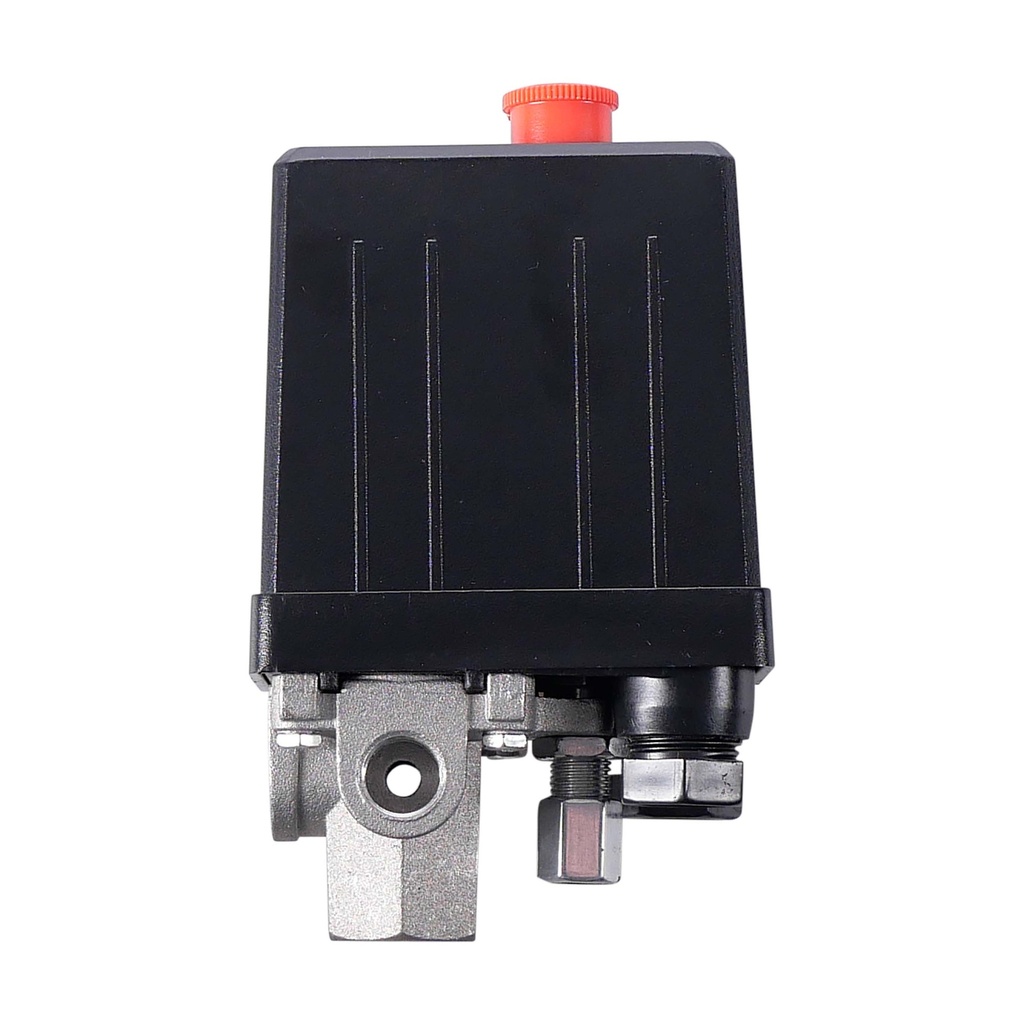

Pressure switch

Suitable for the compressors CP060T01, CP122T03, CP15VT05, CP222T05 and CP222T01.

• voltage = 230V

• max. pressure = 10 bar

• 3-way connection with 1/4" internal thread

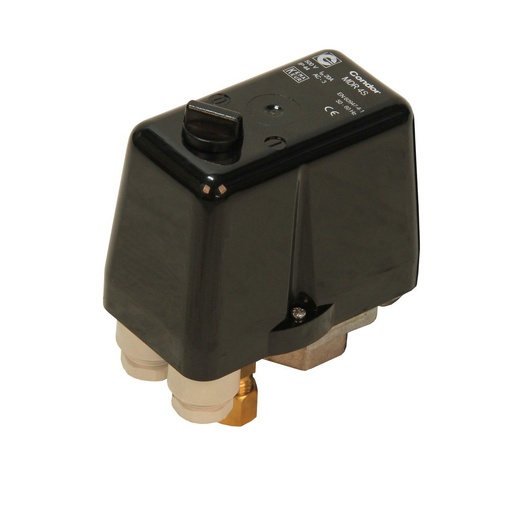

Pressure switch

- type = Condor MDR4S-11
- switching capacity = 4 / 5,5kW (AC3)
- max. cut-out pressure = 11/16bar
- 3-phase
- 3-pole
- provided with on/off switch and unloader valve AEV 4
- flange variants (G1/4, G1/2, G3/8, G1/2 M1/4)

- 1-way 1/4 "internal thread
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP44

Pressure switch

- type = Condor MDR3-16 6,3A
- switching capacity = 7,5 (11)kW (AC3)
- max. cut-out pressure = 35bar
- 3-phase
- 3-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 3
- flange variant F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP54

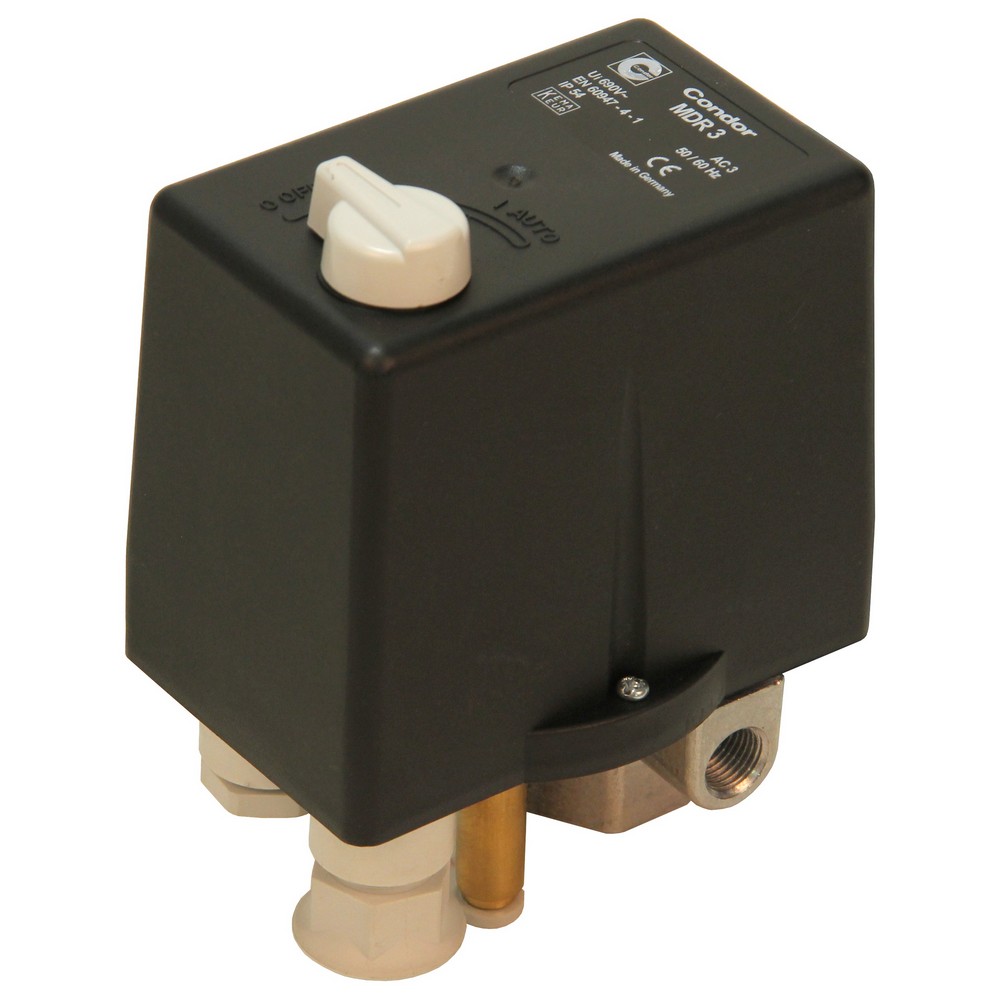

Pressure switch

- type = Condor MDR3-16 10A
- switching capacity = 7,5 (11)kW (AC3)
- max. cut-out pressure = 35bar
- 3-phase
- 3-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 3
- flange variant F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP54

Pressure switch

- type = Condor MDR3-11 6,3A
- switching capacity = 7,5 (11)kW (AC3)
- max. cut-out pressure = 35bar
- 3-phase
- 3-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 3
- flange variant F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP54

Pressure switch

- type = Condor MDR3-11 10A
- switching capacity = 7,5 (11)kW (AC3)
- max. cut-out pressure = 35bar
- 3-phase
- 3-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 3
- flange variant F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP54

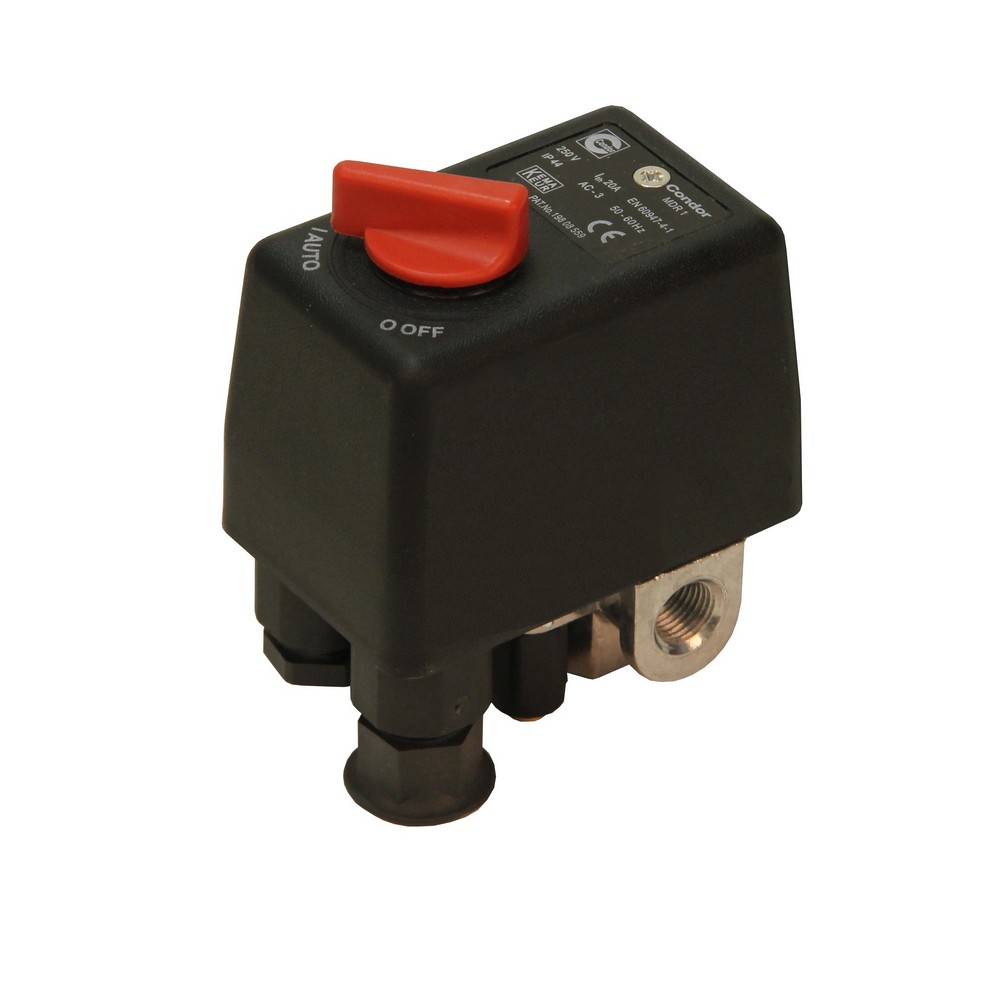

Pressure switch

- type = Condor MDR1-11
- switching capacity = 4,0kW (AC3)
- max. cut-out pressure = 11 bar
- single phase
- 2-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 1 S
- flange variants (G1/4, F4 1/4, F4 3/8, F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP44

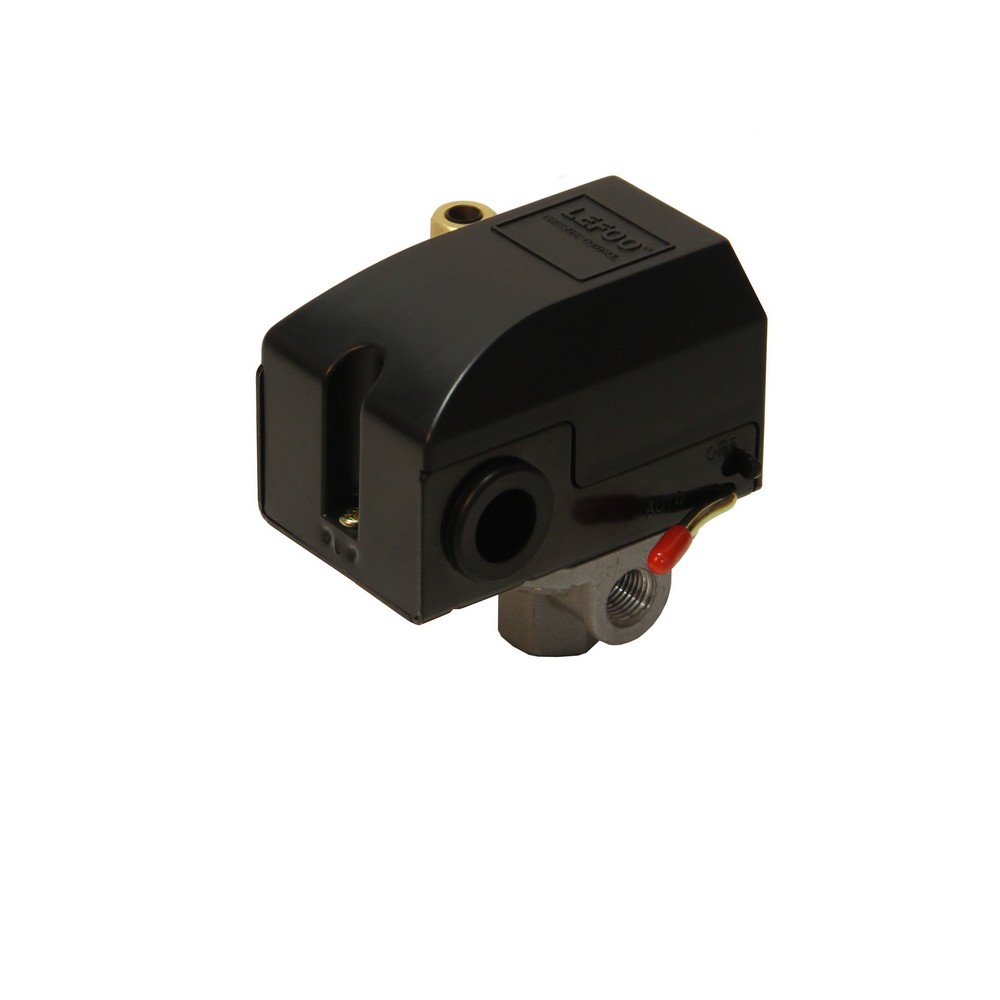

Pressure control 4-way 12 bar

- 9 - 12,5 kgf/cm3

- 120V / 240V

- 26A

- 1/4" connection
