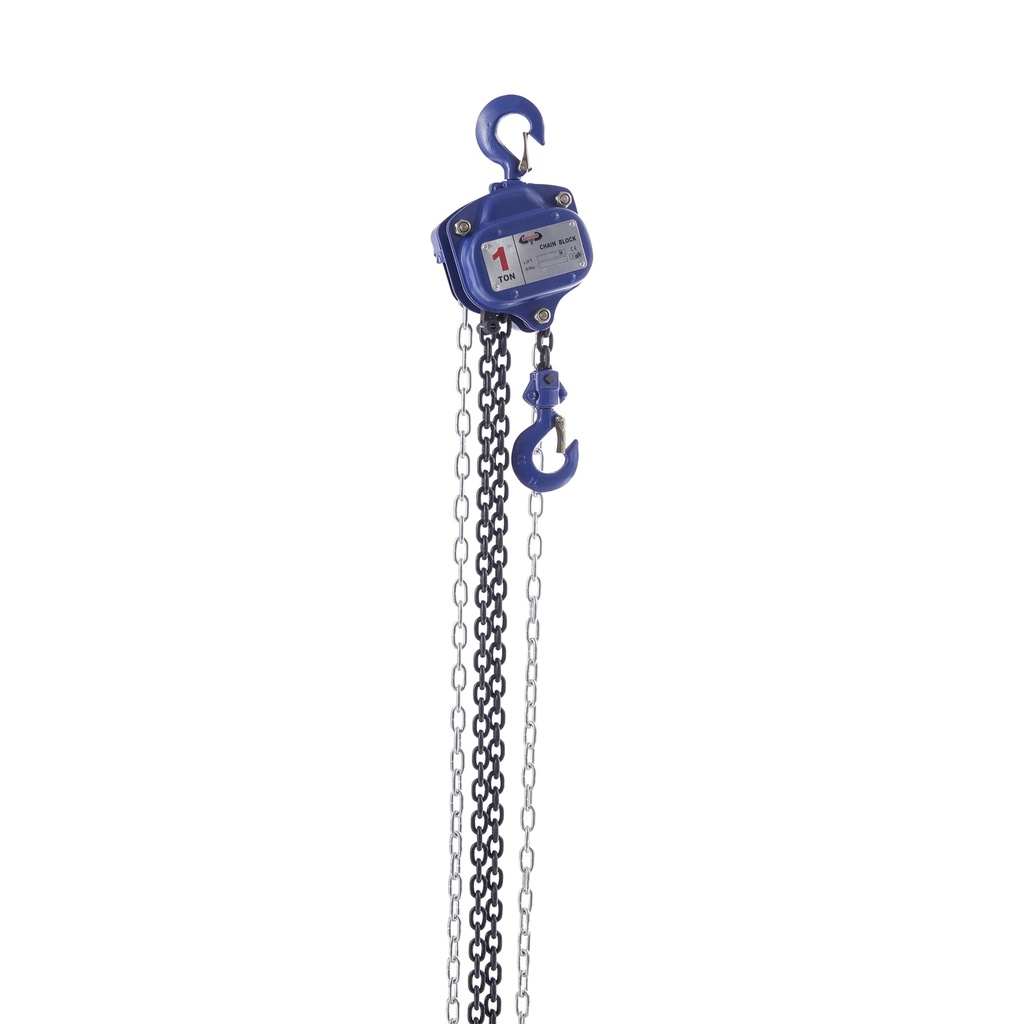

chain hoist / chain block hoist / heavy duty chain block
These robust Torso chain hoists are ideal for lifting operations. Using the light chain its easy to lift vertically. The chain hoists are supplied with a heavy load chain and both hooks (below and above) are provided with a safety valve.
Technical specifications:
- Capacity = 2 ton
- Lifting height = 10m
- Load chain length = 10m
- Max. distance between hooks = 3.35m
- Load chain = 10 x 30mm grade 80
- Operating chain = 5 x 32mm
- Operating chain length = 2 x 2.75m
Product Dimensions
| Length | 500 mm |
|---|---|
| Width | 150 mm |
| Height | 130 mm |
| Weight | 31.5 kg |
Package Dimensions
| Length | 220 mm |
|---|---|
| Width | 250 mm |
| Height | 325 mm |
| Weight | 32.00 kg |
