English wheel F1.2 x 710mm

Wood and Metal working / Metal working machinery / English wheels Brand: Cowley Cowley

Product Code: EWM710

EAN: 8720028087846

Availability: Available


€ 514.25 Incl. VAT https://schema.org/InStock 514.25 EUR € 514.25

€ 425.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

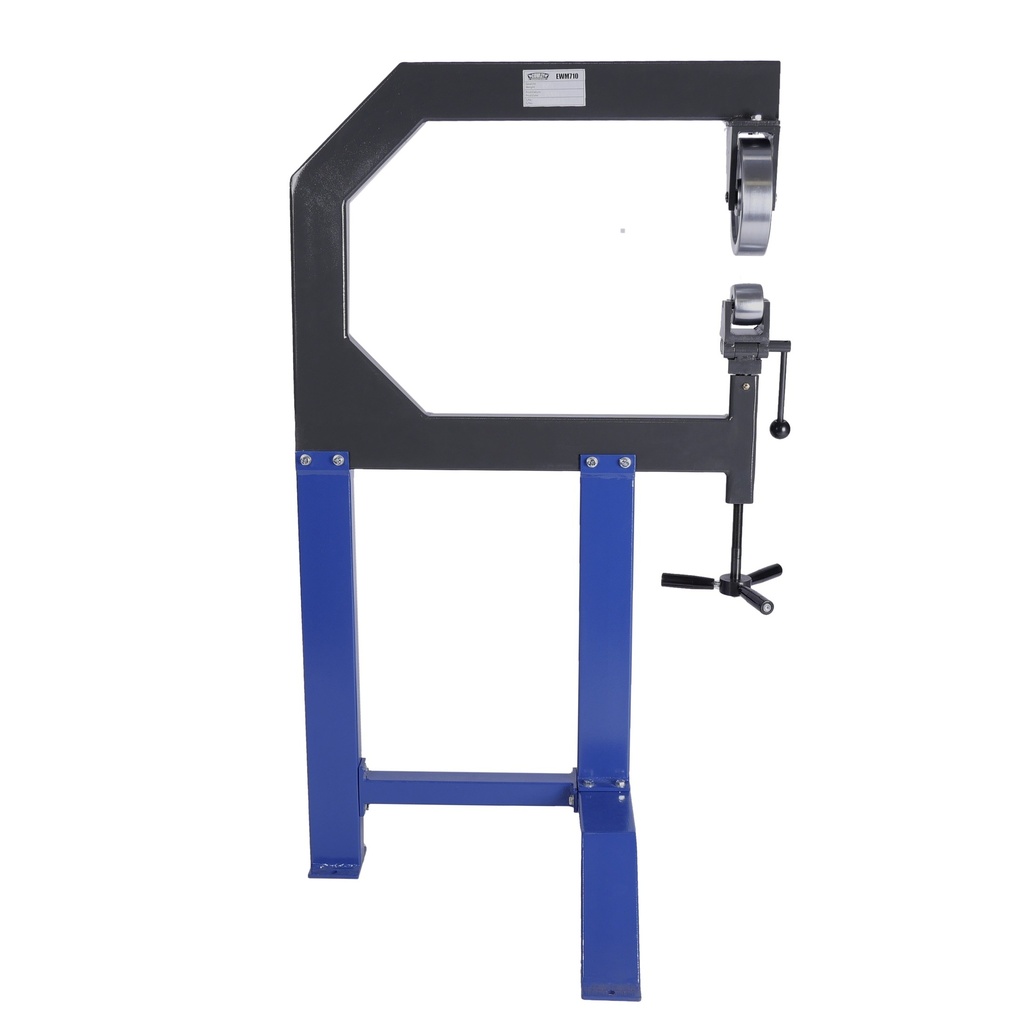

    English wheel

    This English wheel from Cowley is used for the professional working, construction or restoration of sheet material such as fenders, tanks and all kinds of car sheet metal work. Ideal for hollowing and spinning thin sheet, removing dents and flattening hammer strokes. Due to the large insertion depth of the machine you can easily process soft steel, aluminum or copper sheets.

    With the help of the large upper roll, small lower roll and the spindle, the desired pressure can be exerted on the piece of sheet metal.

    Comes with 6 shaping rollers made of hardened polished steel. The English wheel has a handy built-in storage rack for these different forming rolls.

    Technical specifications:

    • maximum plate thickness = 1.2mm

    • insertion depth = 710mm

    • diameter x width main roll = 200 x 50mm

    • width lower rolls = 51mm

    • working height = 1190mm

    Radius forming rollers:

    • 50.8mm / 2"

    • 76.2mm / 3"

    • 101.6mm / 4"

    • 152.4mm / 6"

    • 203.2mm / 8"

    • 304.8mm / 12"

    Product Dimensions:
    Product Length 870 mm
    Product Width 780 mm
    Product Height 220 mm
    Product Weight 75.0 Kg
    Package Dimensions:
    Package Length 890 mm
    Package Width 800 mm
    Package Height 240 mm
    Package Weight 82.00 Kg

    • Hardened, polishing steel rollers

    • Precise roller adjustment

    • Very solid construction

    • Handy storage rack for forming rolls
