English wheel work station

Wood and Metal working / Metal working machinery / English wheels Brand: Cowley Cowley

Product Code: EWWS710

EAN: 8720028043699

Availability: Available

Expected back in stock: 12 - 14 weeks

€ 1,815.00 Incl. VAT https://schema.org/InStock 1815.0 EUR € 1,815.00

€ 1,500.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

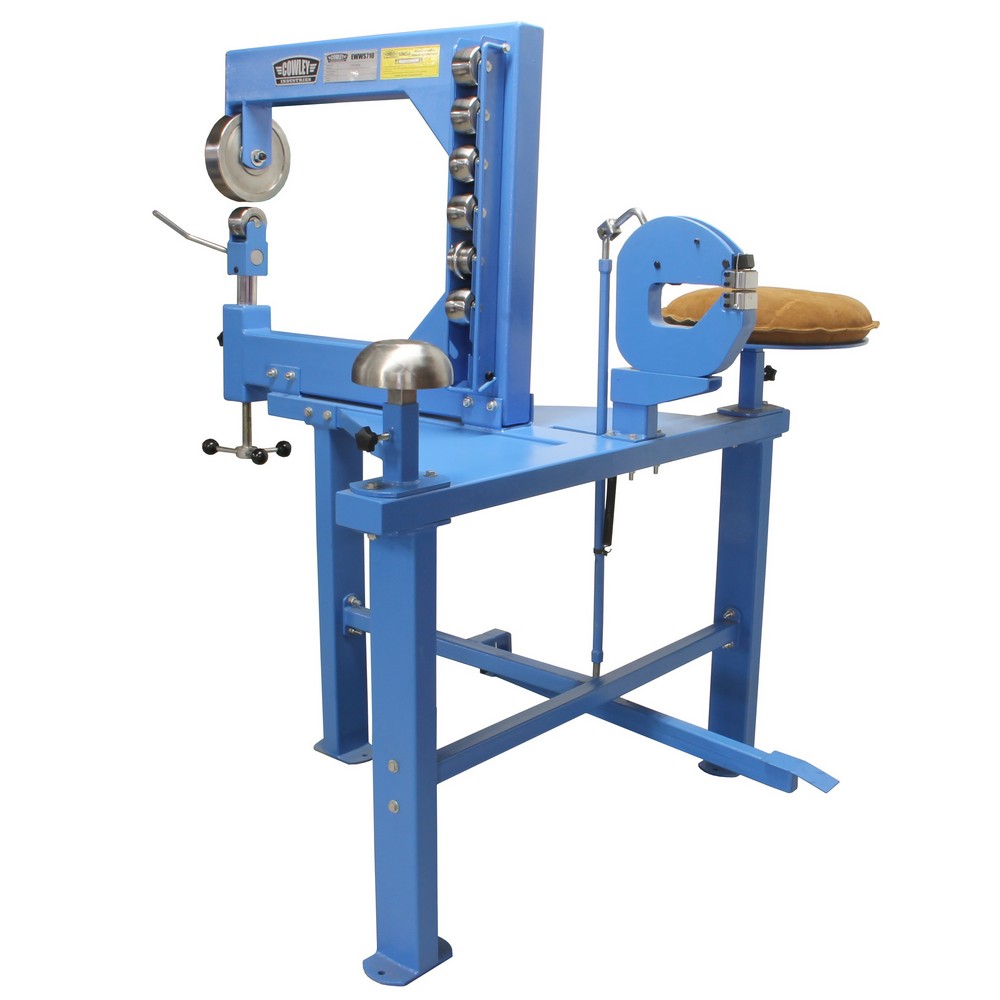

    This multifunctional sheet metal work station has 4 different parts. First of all, the station is equipped with an english wheel with a throat depth of 710mm and 7 different shaping rolls.
    Furthermore, the station has a professional stretch and shrink machine with foot pedal. The throat depth of this machine is 205mm.
    Finally, the station is equipped with two parts to knock sheet metal into different shapes with a hammer. A round dolly and a leather bag, which is delivered empty. This bag can be filled with silver sand or dune sand for example.
    This sheet metal work station is suitable for steel sheets up to 1,5mm thick and aluminum sheets up to 1,9mm thick and is used for working on metal sheets (of for example oldtimers, cars and tanks).

    Specifications english wheel:
    - throat depth = 710mm / 28"
    - diameter upper wheel = 203,2mm / 8"

    Shaping rolls:
    - profile diameter 6,35mm / 1/4"
    - radius 50,8mm / 2"
    - radius 76,2mm / 3"
    - radius 101,6mm / 4"
    - radius 152,4mm / 6"
    - radius 203,2mm / 8"
    - radius 304,8mm / 12"

    Product Dimensions:
    Product Length 1,600 mm
    Product Width 1,360 mm
    Product Height 1,570 mm
    Product Weight 179.0 Kg
    Package Dimensions:
    Package Length 1,260 mm
    Package Width 1,010 mm
    Package Height 425 mm
    Package Weight 206.00 Kg
