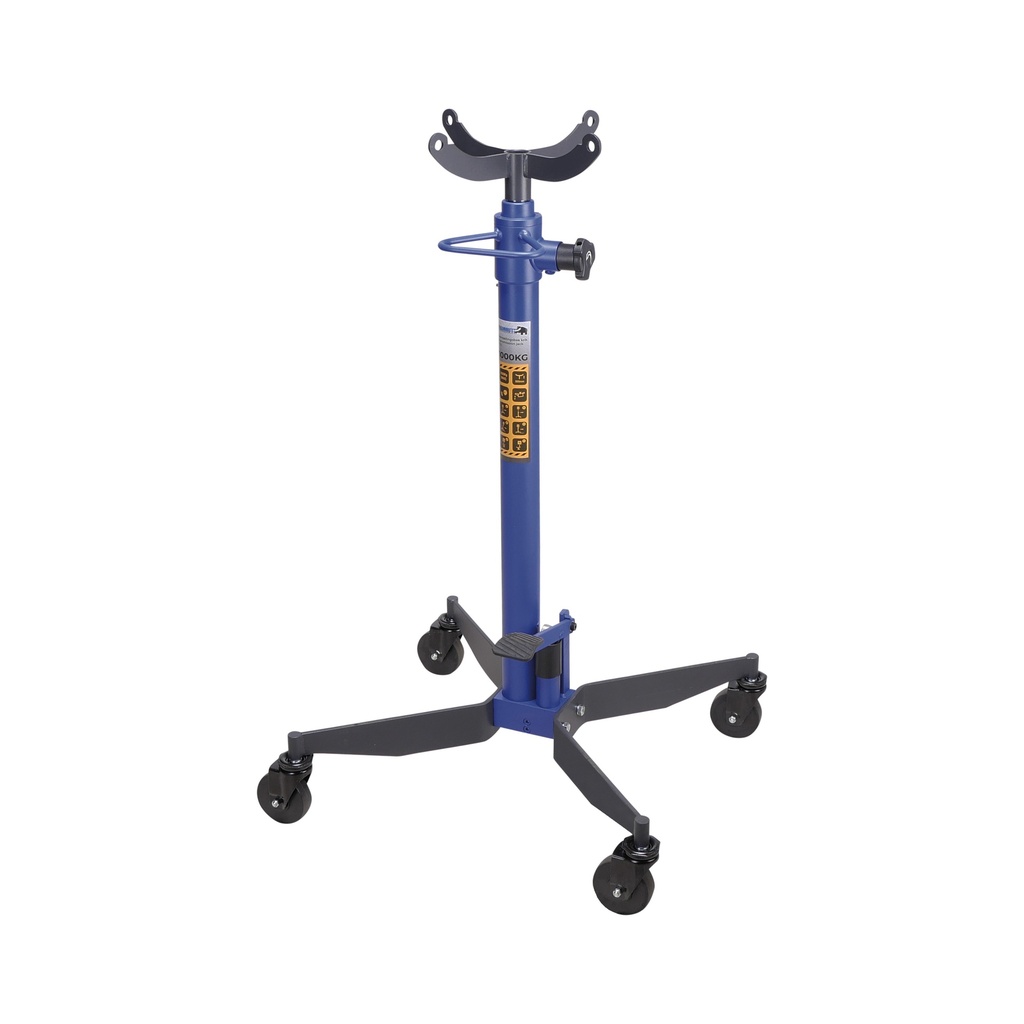

This Mammuth transmission jack is designed for fast and safe mounting and dismounting of gearboxes.
-
Two-stage pump: Fast lifting without load, controlled with load.
-
Controlled lowering speed: Ensures safe and steady descent.
- Foot pedal: Keeps both hands free during lifting.
-
Glass fiber reinforced nylon wheels: Wear-resistant, highly loadable, and resistant to oil, grease, acids, and other chemicals.
Specifications
| Material | Steel |
| Lifting capacity | 1000 kg |
| Min. height | 1170 mm |
| Max. height | 2010 mm |
| Hook spacing | 300 mm |
| Hook height | 50 mm |
| Wheel material | Fibreglass-reinforced nylon |
| Wheel diameter | ø100 |
| Oil capacity | 1.2 L |
| Oil type | OKCH68 |
Product Dimensions
| Length | 665 mm |
|---|---|
| Width | 715 mm |
| Height | 1,175 mm |
| Weight | 40.0 kg |
Package Dimensions
| Length | 240 mm |
|---|---|
| Width | 1,070 mm |
| Height | 285 mm |
| Weight | 41.50 kg |
