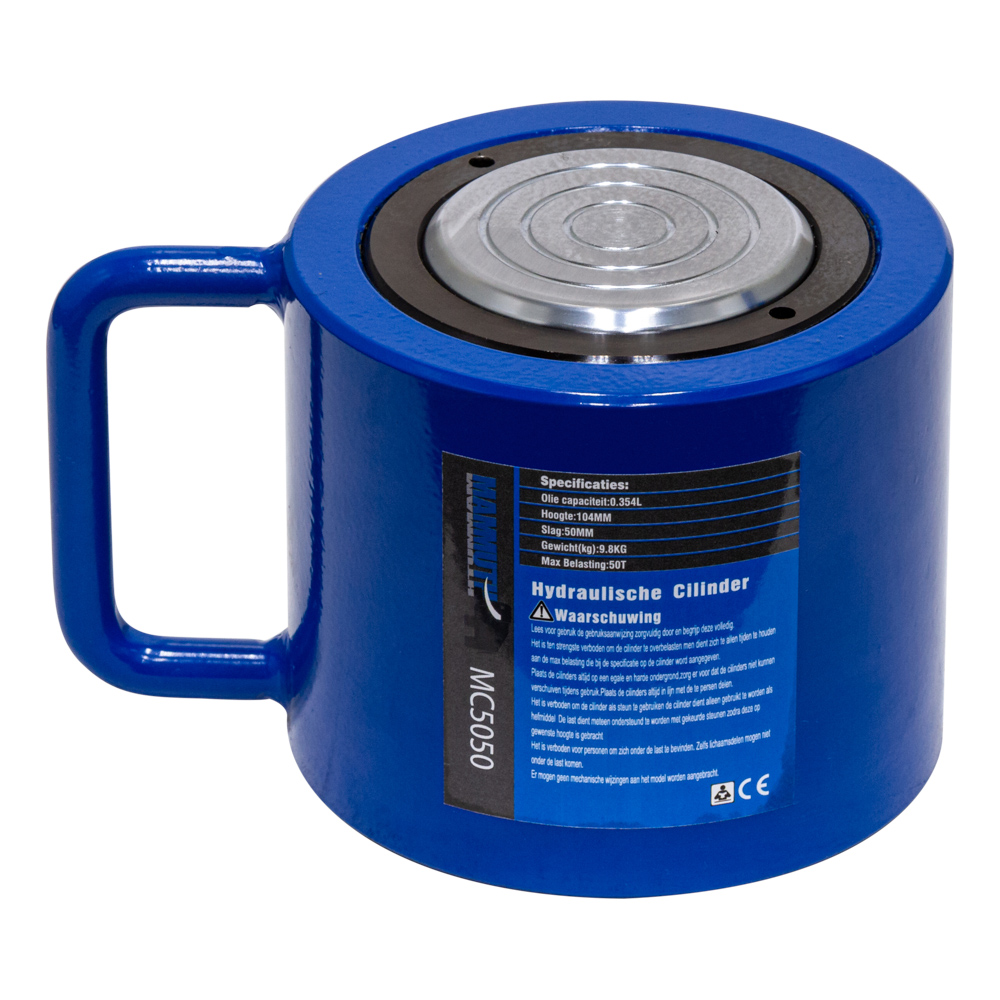

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
output = 50 ton
stroke = 50mm
effective area = 56,7cm^2
oil capacity = 0,354 L
height of product = 104mm
extended height = 154mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 65mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 2mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both
a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 200 mm |
| Product Width | 130 mm |
| Product Height | 105 mm |
| Product Weight | 9.8 Kg |
| Package Dimensions: | |
| Package Length | 275 mm |
| Package Width | 235 mm |
| Package Height | 215 mm |
| Package Weight | 11.00 Kg |
