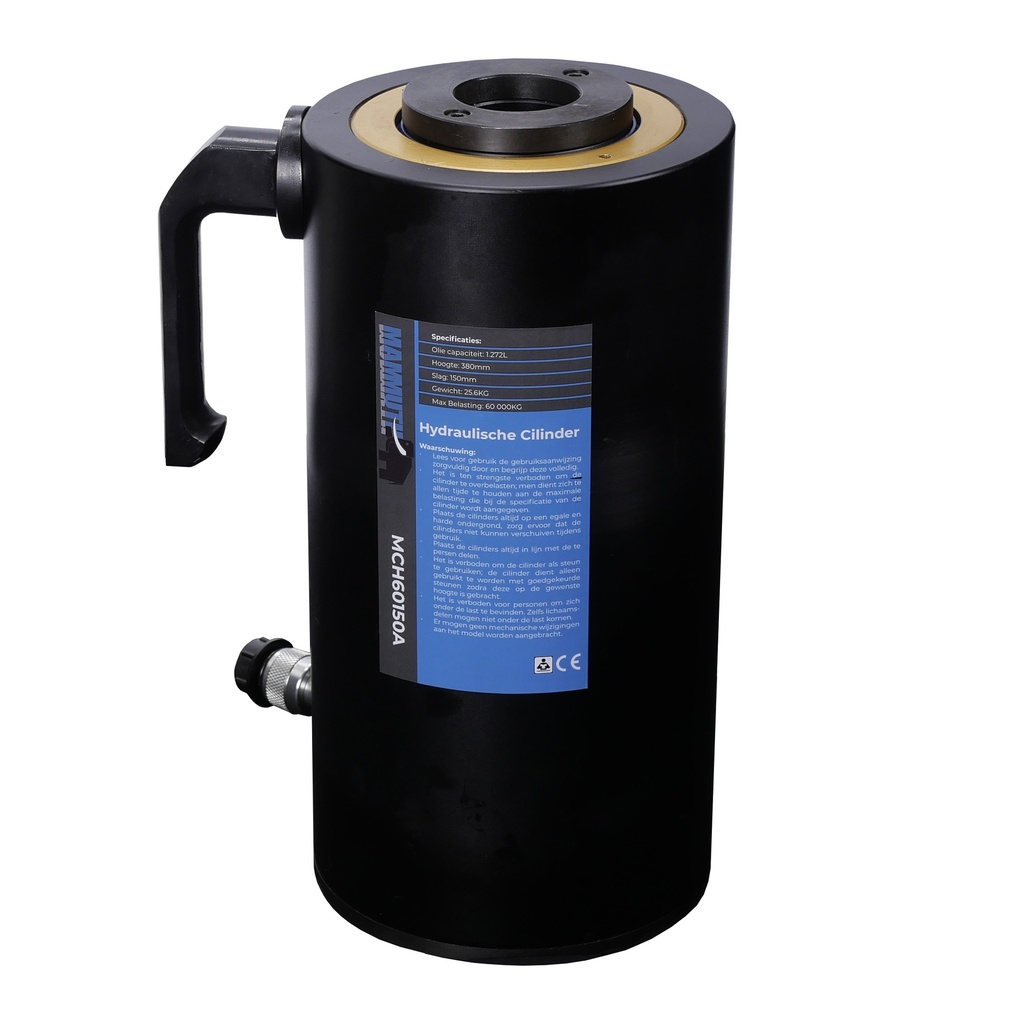

The Hydraulic Aluminum Cylinder 60 Ton by Mammuth stands out as the optimal choice when a lighter and more portable cylinder is required for various applications, including tensioning, testing, pulling, and lifting. Featuring a hollow plunger, this cylinder is rated for pressures of up to 700 bar.
Designed as a single-acting cylinder, it utilizes a high-strength return spring to facilitate rapid retraction.
The use of aluminum in construction not only contributes to the cylinder's lightweight design but also provides inherent resistance to corrosion compared to steel. This makes it an excellent choice for applications in corrosive environments. To further safeguard the cylinder and extend its lifespan, all surfaces are finished with a hard coat finish to resist damage.
Cylinder includes handles for ease of use, and a floating center tube is incorporated to enhance seal life. The steel baseplate and saddle offer protection against load-induced damage. An integral stop ring prevents plunger over-travel and is robust enough to withstand the cylinder's full capacity. Additionally, a high-strength return spring ensures swift cylinder retraction.
Specifications
| Capacity | 60 Ton |
| Stroke | 150 mm |
| Material | Aluminium |
| Oil capacity | 1.27 L |
| Pressure max. | 700 Bar |
| Piston surface | 100 x 100 mm |
| Piston diameter | 100 mm |
| Outside diameter | 188 mm |
| Saddle height | 12 mm |
Product Dimensions
| Length | 260 mm |
|---|---|
| Width | 260 mm |
| Height | 383 mm |
| Weight | 25.45 kg |
Package Dimensions
| Length | 295 mm |
|---|---|
| Width | 295 mm |
| Height | 425 mm |
| Weight | 26.89 kg |
