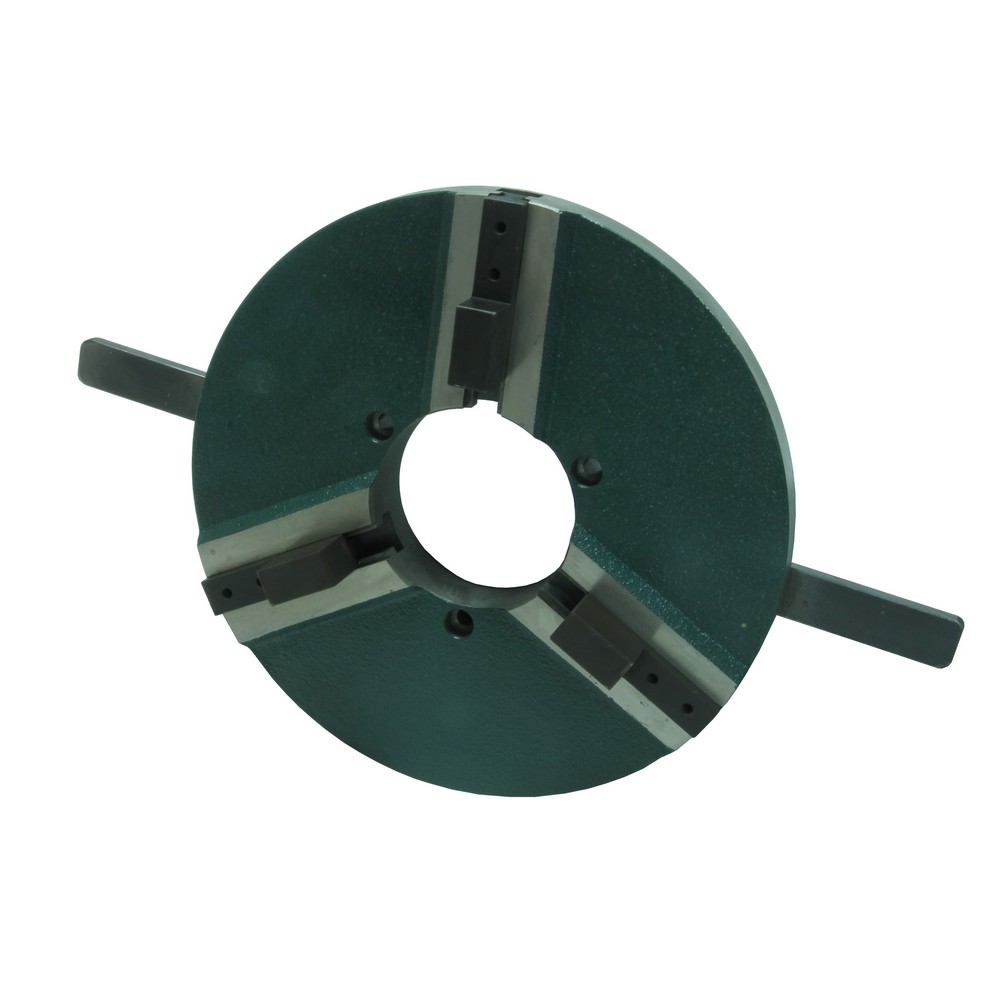

Welding chuck 3-jaw 200mm

Welding and cutting equipment / Welding mechanisation / Welding chucks / Chuck 3 claw Brand: Cowley Cowley

Product Code: LKP200

EAN: 8720028045143

Availability: Available

€ 199.65 Incl. VAT https://schema.org/InStock 199.65 EUR € 199.65

€ 165.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Welding chuck

    This welding chuck 3-jaw is ideal for the use on a welding positioner. This secures the workpiece to the welding manipulator so that an excellent welding connection is realized.
    Especially suitable for series production. Many of the same work pieces can easily be changed, resulting in a shorter production time.

    - diameter = 200mm
    - reach round = 10 -210mm
    - clamping force = 200kg
    - capacity = 30kg
    - reach outside jaws = 110 - 210mm
    - reach inside jaws = 10 - 130mm

    Suitable for the welding positioner 50kg (LM05)
    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 5.7 Kg
    Package Dimensions:
    Package Length 370 mm
    Package Width 215 mm
    Package Height 90 mm
    Package Weight 6.00 Kg
