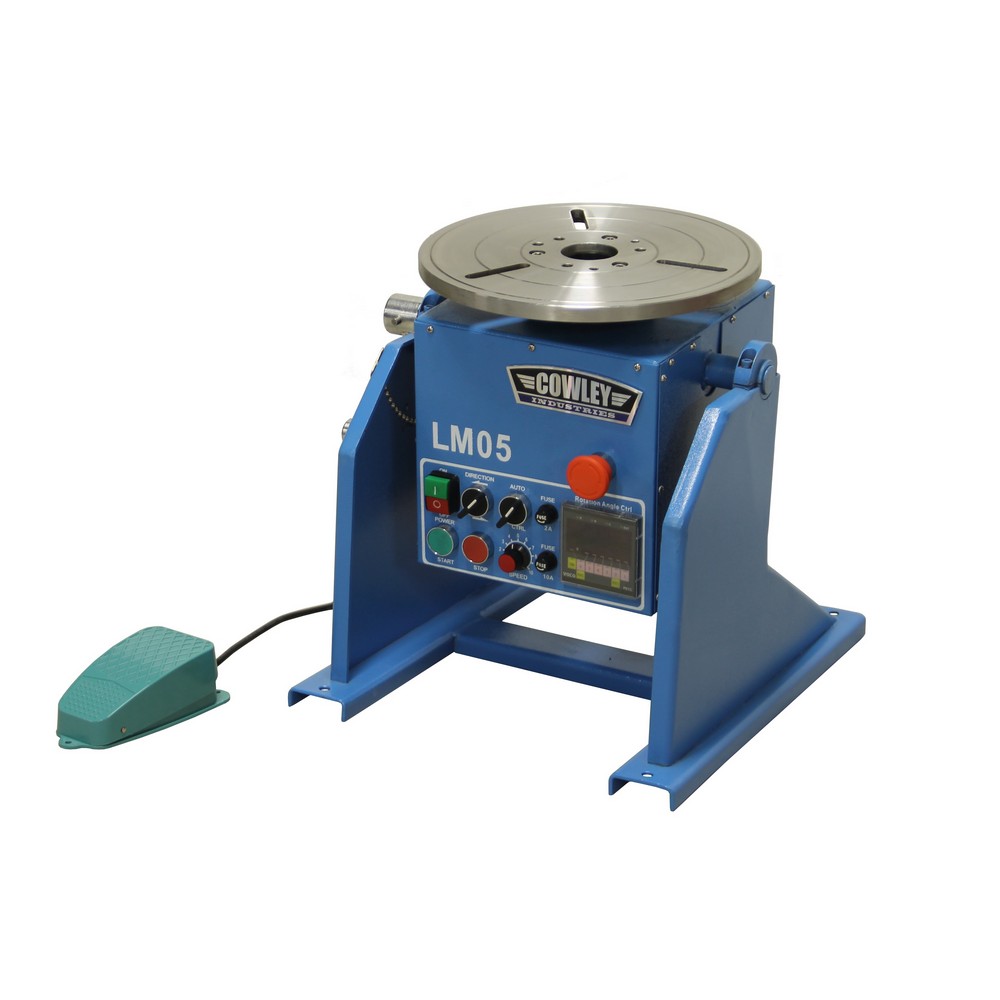

Welding turntable
This Cowley welding positioner is used for placing a workpiece in te desired welding position. This allows optimum welding and ensures an excellent welding result.
Specifications:
power supply = 230V
frequency = 50/60 Hz
power = 60W
rotation speed = 1-12rpm
diameter table = 300mm
horizontal load capacity = 50kg
vertical load capacity = 25kg
max. ampere = 250A
length of the foot control cable = 1,8m
| Product Dimensions: | |
|---|---|
| Product Length | 470 mm |
| Product Width | 460 mm |
| Product Height | 420 mm |
| Product Weight | 32.0 Kg |
| Package Dimensions: | |
| Package Length | 490 mm |
| Package Width | 440 mm |
| Package Height | 460 mm |
| Package Weight | 36.00 Kg |
![[K72160] Independent four-jaw chuck 160mm](/web/image/product.product/52179/image_512/%5BK72160%5D%20Independent%20four-jaw%20chuck%20160mm?unique=3bae25d)
![[K72200] Independent four-jaw chuck 200mm](/web/image/product.product/52180/image_512/%5BK72200%5D%20Independent%20four-jaw%20chuck%20200mm?unique=3bae25d)
![[K72250] Independent four-jaw chuck 250mm](/web/image/product.product/52181/image_512/%5BK72250%5D%20Independent%20four-jaw%20chuck%20250mm?unique=3bae25d)
![[K11160] Self-centering three-jaw chuck 160mm](/web/image/product.product/52166/image_512/%5BK11160%5D%20Self-centering%20three-jaw%20chuck%20160mm?unique=3bae25d)

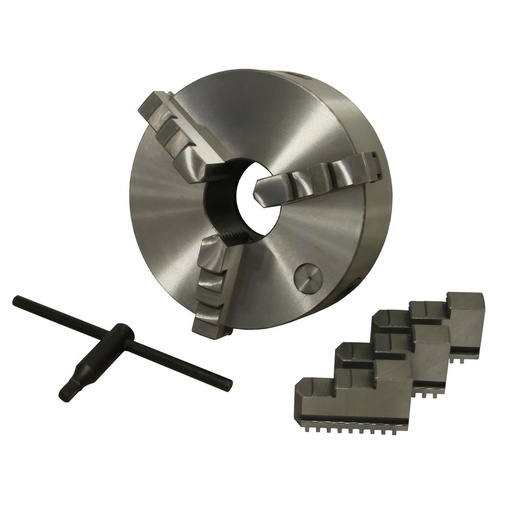

![[K11200] Self-centering three-jaw chuck 200mm](/web/image/product.product/52167/image_512/%5BK11200%5D%20Self-centering%20three-jaw%20chuck%20200mm?unique=3bae25d)
![[K11250] Self-centering three-jaw chuck 250mm](/web/image/product.product/52176/image_512/%5BK11250%5D%20Self-centering%20three-jaw%20chuck%20250mm?unique=3bae25d)

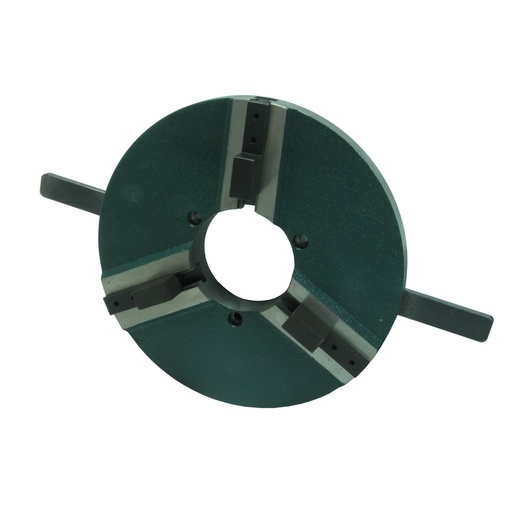

![[LKP200] Welding chuck 3-jaw 200mm](/web/image/product.product/52168/image_512/%5BLKP200%5D%20Welding%20chuck%203-jaw%20200mm?unique=3bae25d)
