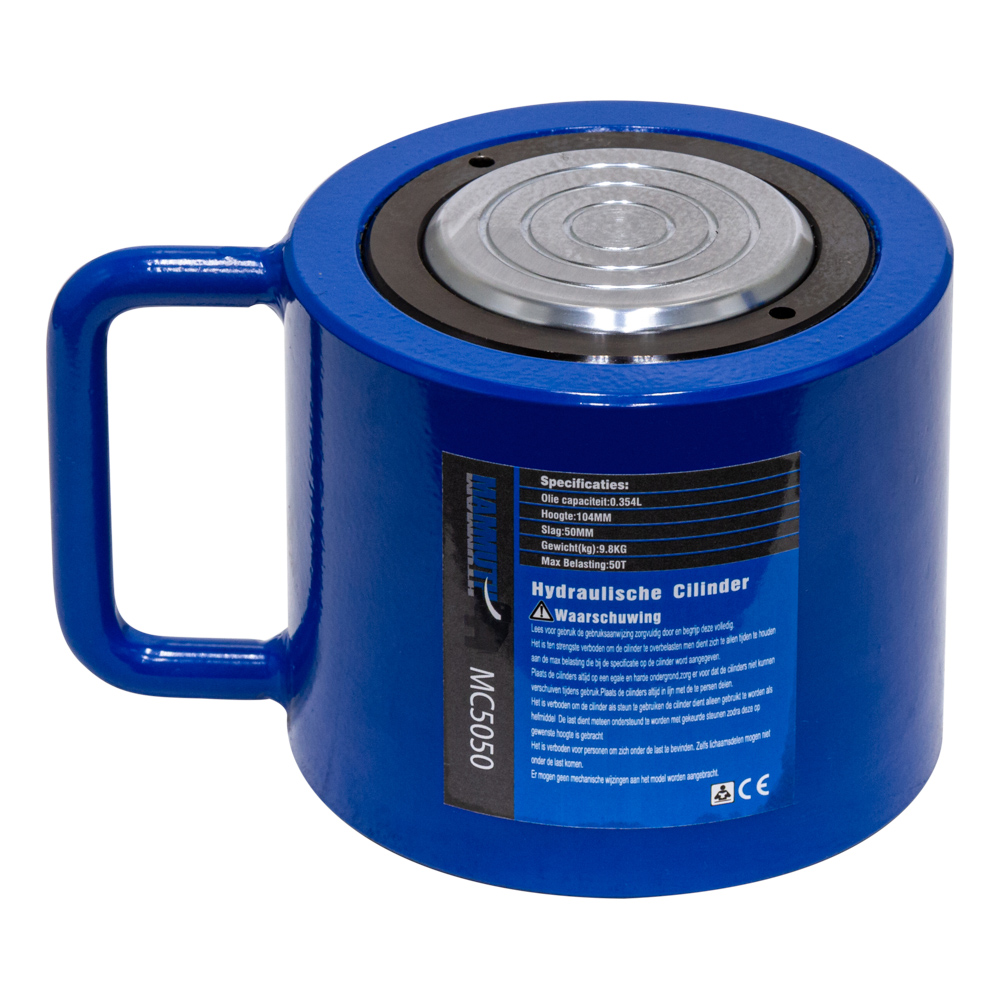

Cylinder 50 ton stroke 50mm

Brand: Mammuth

Product Code: MC5050

EAN: 8720028050161

Availability: Available

https://www.valkenpower.com/web/image/product.template/52673/image_1920?unique=a1c071f

€ 145.20 Incl. VAT 145.20000000000002 EUR € 145.20

€ 120.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Hydraulic cylinder

    It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.

    • output = 50 ton

    • stroke = 50mm

    • effective area = 56,7cm^2

    • oil capacity = 0,354 L

    • height of product = 104mm

    • extended height = 154mm

    • outside diameter = 128mm

    • bore diameter = 95mm

    • plunger diameter = 65mm

    • thread for input oil port (ZG) = 3/8" - 19

    • saddle protrusion form plgr = 2mm

    • saddle is removable

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 200 mm
    Product Width 130 mm
    Product Height 105 mm
    Product Weight 9.8 Kg
    Package Dimensions:
    Package Length 275 mm
    Package Width 235 mm
    Package Height 215 mm
    Package Weight 11.00 Kg
