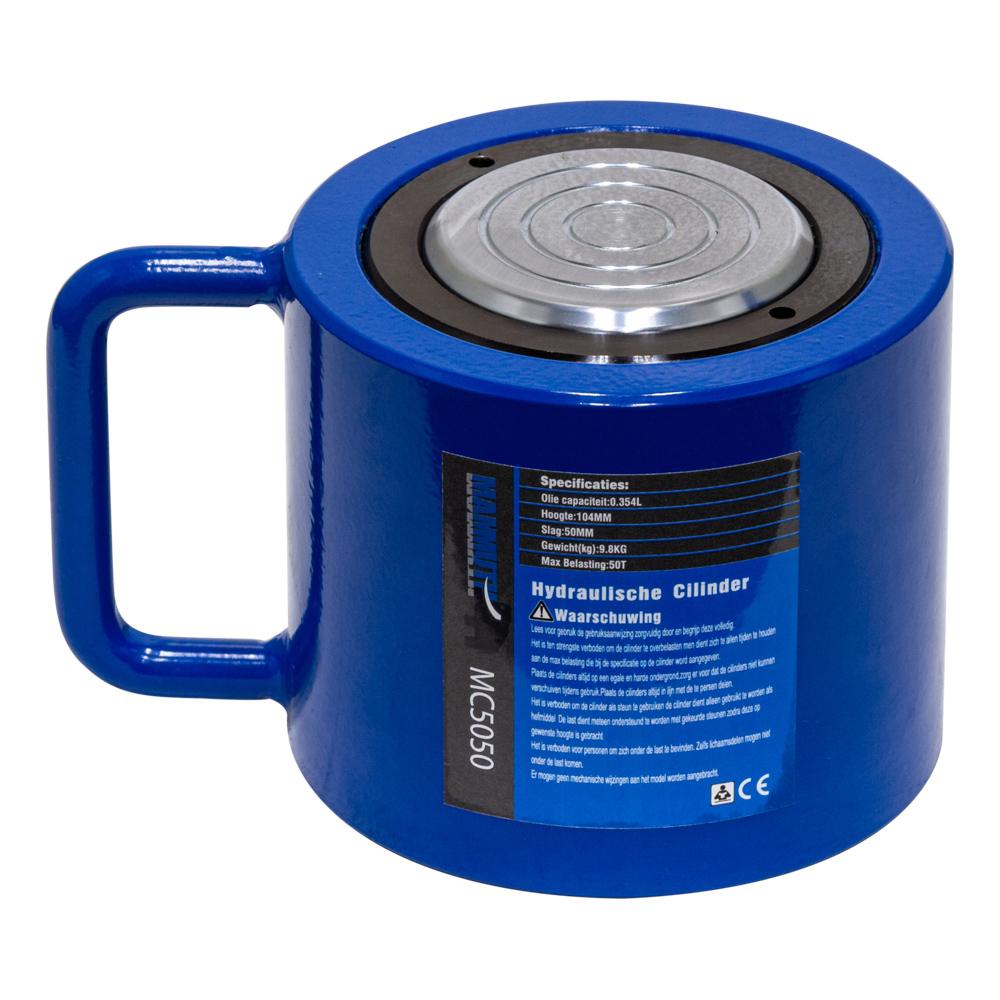

Hydraulikzylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
output = 50 ton
stroke = 50mm
effective area = 56,7cm^2
oil capacity = 0,354 L
height of product = 104mm
extended height = 154mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 65mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 2mm
saddle is removable
max. pressure = 700bar
Produkt Abmessungen:
| Length | 200 mm |
|---|---|
| Width | 130 mm |
| Height | 105 mm |
| Weight | 9,8 kg |
Abmessungen der Verpackung:
| Length | 275 mm |
|---|---|
| Width | 235 mm |
| Height | 215 mm |
| Weight | 11,00 kg |
