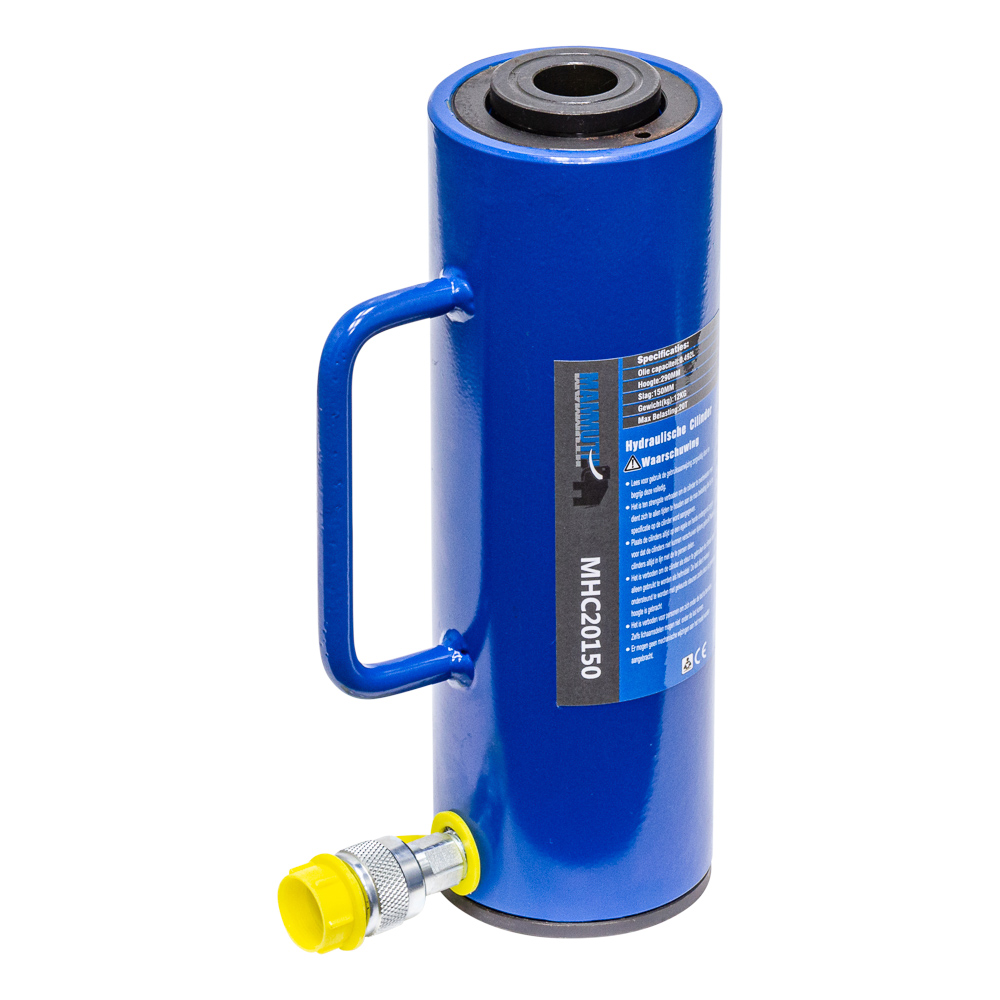

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
output = 20 ton
stroke = 150mm
effective area = 32,8cm^2
oil capacity = 0,492L
height of product = 313mm
outside diameter = 113mm
bore diameter = 75mm
principal axis diameter = 55mm
plunger diameter = 27mm
oil supply hole thread (Rc) = 3/8"
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 11.3 Kg |
| Package Dimensions: | |
| Package Length | 385 mm |
| Package Width | 195 mm |
| Package Height | 215 mm |
| Package Weight | 12.30 Kg |
