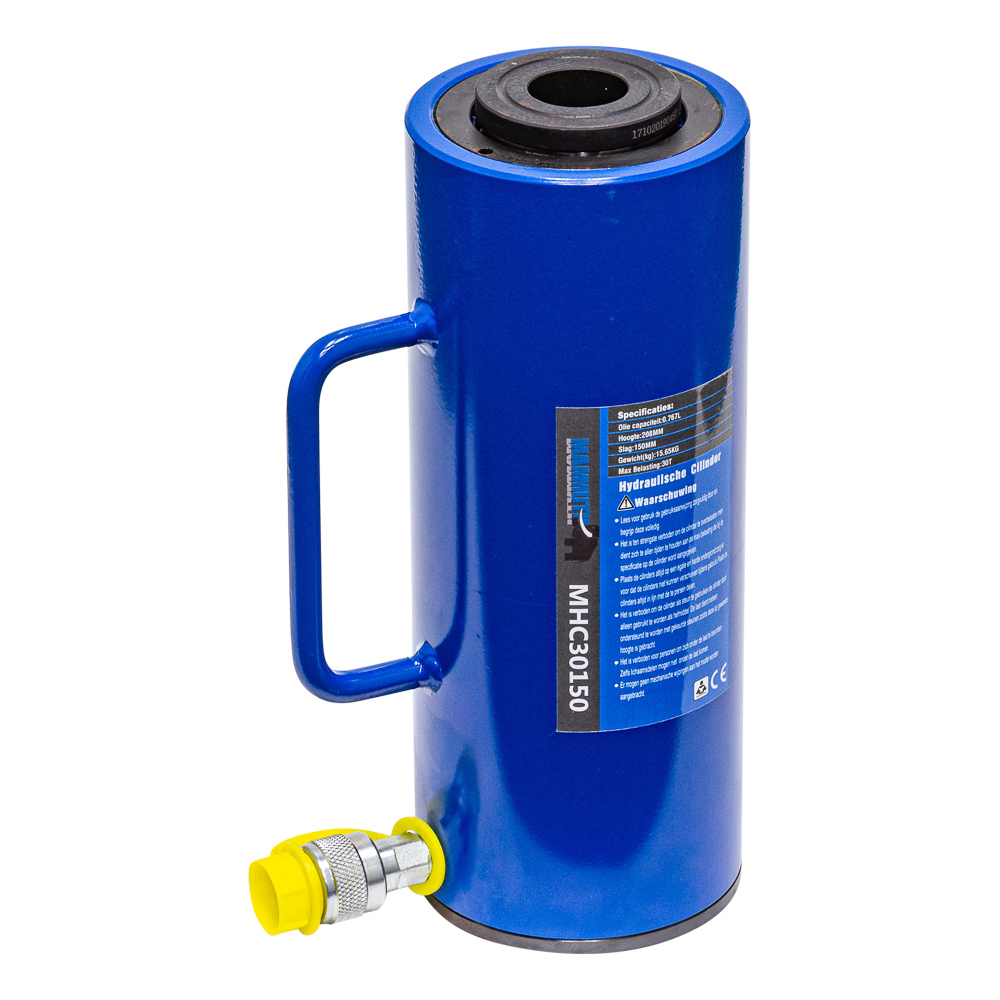

Hollow cylinder 30 ton stroke 150mm

Brand: Mammuth

Product Code: MHC30150

EAN: 8720028090198

Availability: Available

https://www.valkenpower.com/web/image/product.template/59665/image_1920?unique=b17c2c7

€ 393.25 Incl. VAT 393.25 EUR € 393.25

€ 325.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Hydraulic hollow cylinder

    This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
    Dust ring prevents dust from entering the cylinder.
    The step-limited piston prevents over-travel.
    The wear ring increases the lifetime of the cylinder.

    • output = 30 ton

    • stroke = 150mm

    • effective area = 51,1cm^2

    • oil capacity = 0,767L

    • height of product = 333mm

    • outside diameter = 138mm

    • bore diameter = 95mm

    • principal axis diameter = 70mm

    • plunger diameter = 34mm

    • oil supply hole thread (Rc) = 3/8"

    • extended height = 10mm

    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 0.0 Kg
    Package Dimensions:
    Package Length 390 mm
    Package Width 190 mm
    Package Height 210 mm
    Package Weight 19.09 Kg
